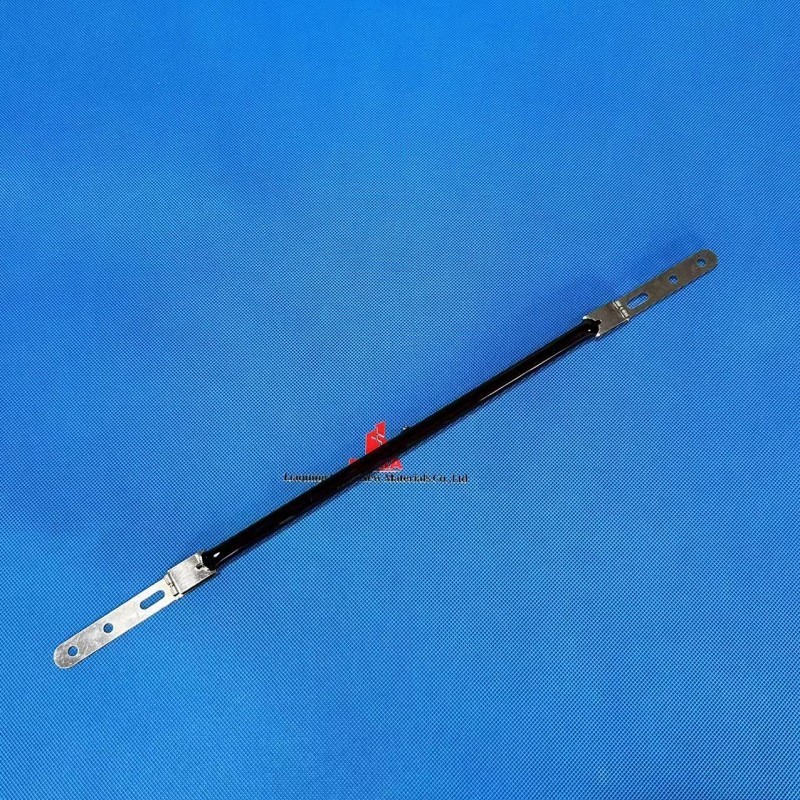

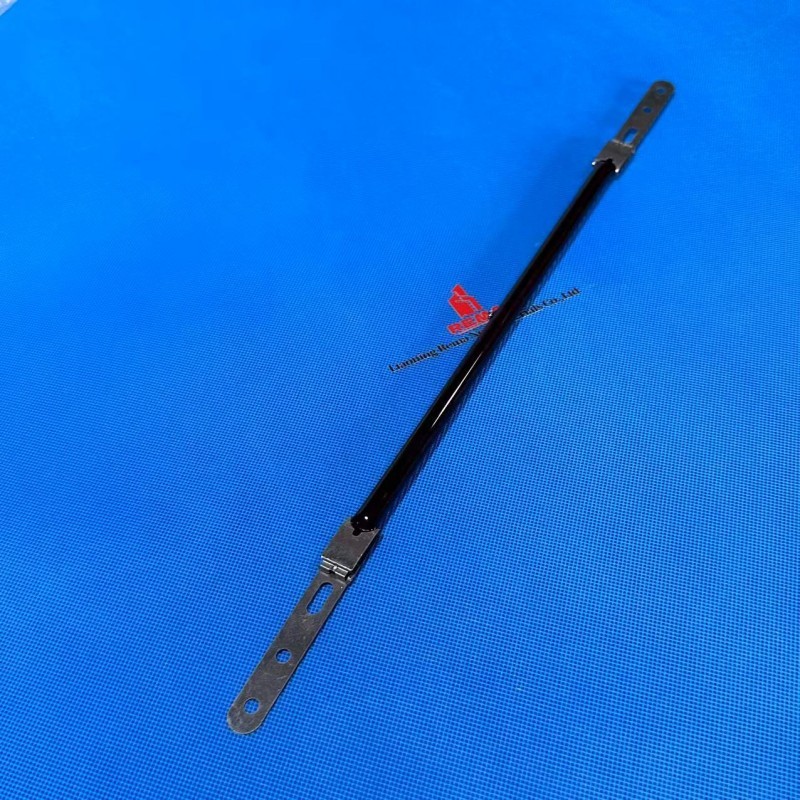

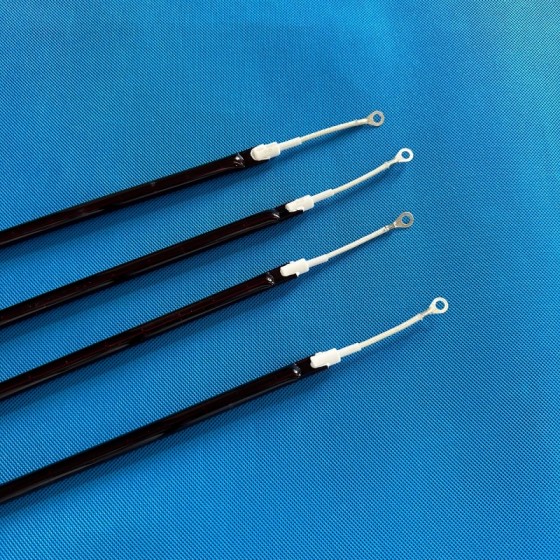

X Base Ceramic Ruby Red Infrared Tungsten Halogen Lamp

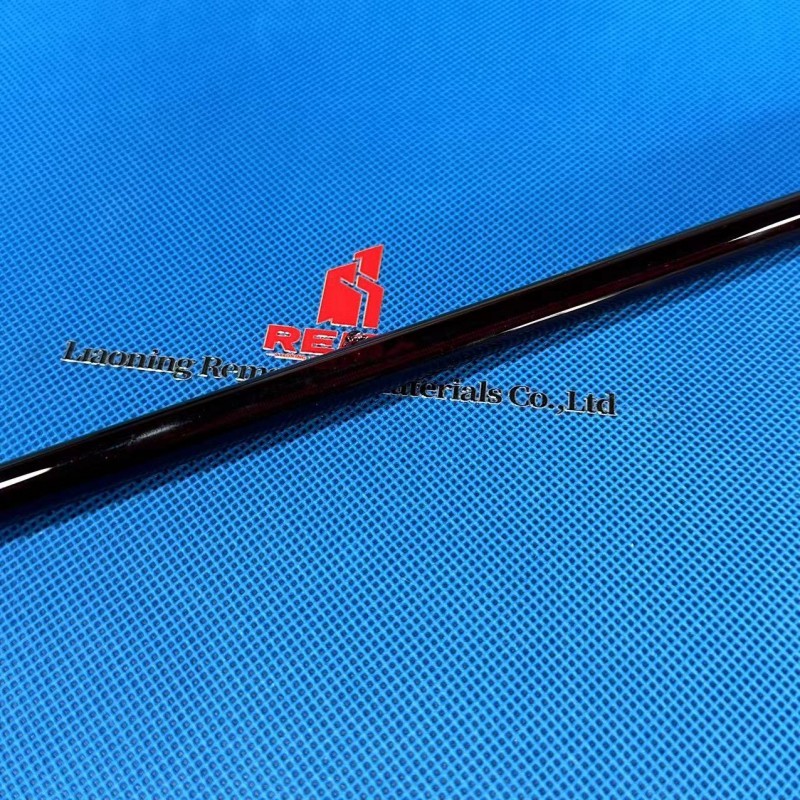

The biggest difference between Ruby Red Infrared Lamp and the standard short-wave quartz lamp is that it uses ruby quartz tubes, which blocks the output of UV and a large amount of visible light, eliminating glare at the application site and improving production safety.
Input Voltage：220V
Input Wattage：800W
Working Lifetime：5000+ Hours
IR Distance:2-4μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 1000w X Base Ceramic ir quartz ruby heating lamp for heater
Name： | Infrared tungsten lamp | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1-2um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Infrared joining and welding for plastics components
Thermoforming of car carpet and ceiling
Vacuum laminating
Deburring of plastic
Edge wrapping
Activating adhesives
PET performs heating in stretch blow moulding machines.
Omnidirectional lighting type:
The standard models are all horizontal lighting specification.
Lamps may fail or have extremely reduced life if the lamp is turned on when inclined at an angle exceeding the permitted angle (horizontal ±4°), Consult REMA if you require lighting at angles
exceeding the permitted angle. The addition of dimples to the seal body during manufacture allows the lamp to emit light at any angle when attached to fixed supports.
Customized Service
No suitable product for you? Welcome to contact us .REMA Design an infrared lamp for the unique you ！
With thousands of specification IR lamps,infrared short wave lamp (SW), infrared medium wave lamp (MW),
Infrared fast medium wave lamp (Fast MW) and infrared special lamp, more than 30 years processing experience,
Skilled and experienced technical team, Make our products more excellent , Welcome to customize it according to your requirements .

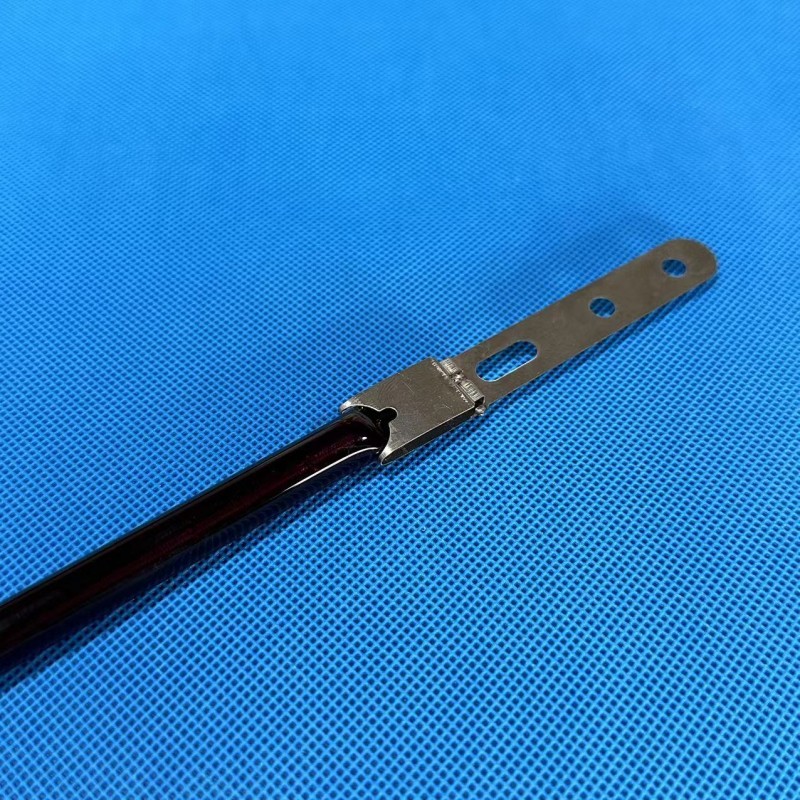

Lamp Base
Reflective coating of the lamp

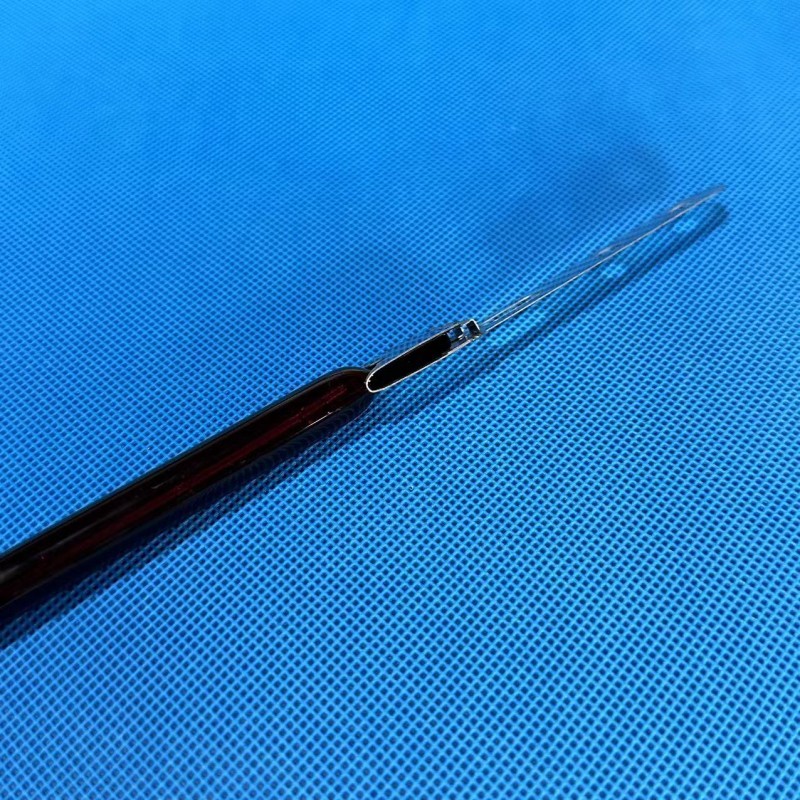

Terminal
Characteristics:
Short Wave Infrared Lamp is High-efficiency energy source.
Short Wave Infrared Lamp is Non-contact heating.
Short Wave Infrared Lamp can Intelligent heat and control temperature precisely.
Short Wave Infrared Lamp is Clean heat source.
Short Wave Infrared Lamp can Quick on/off response.
Short Wave Infrared Lamp has Long life and constant energy emission.
Short Wave Infrared Lamp is Heating in vacuum.
