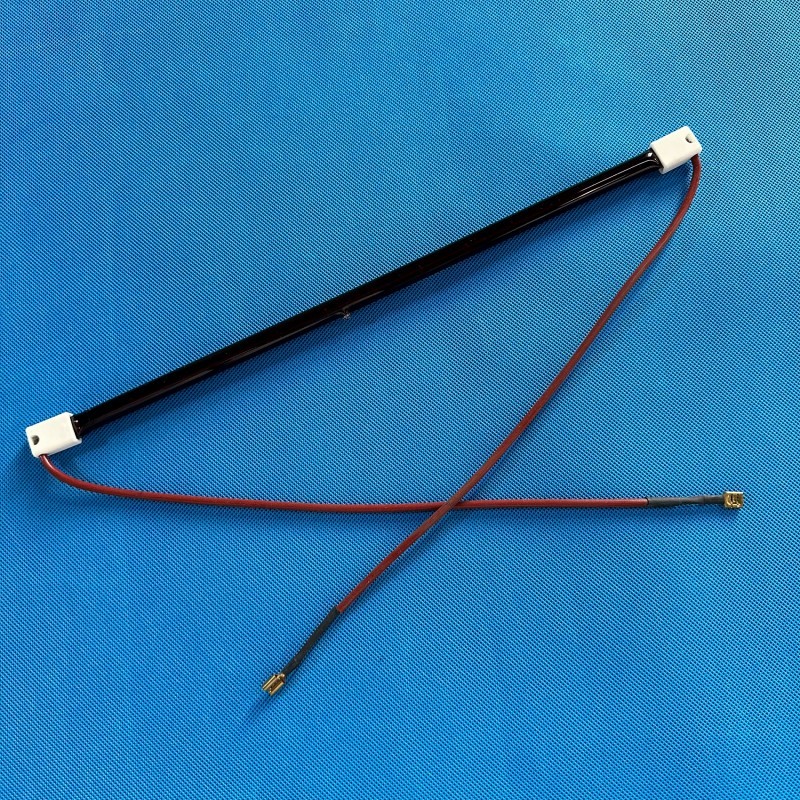

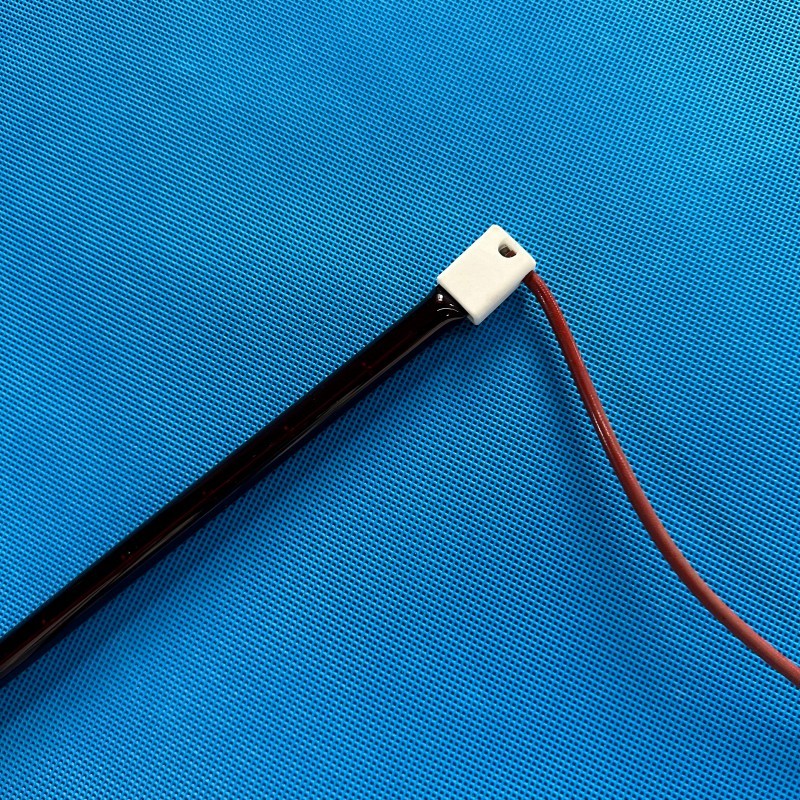

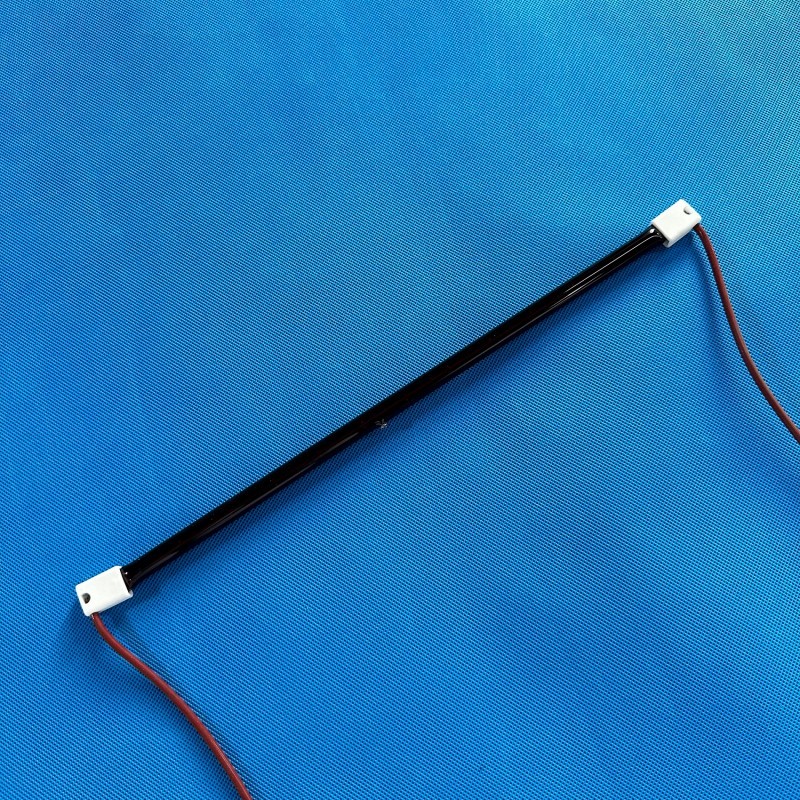

SK-15 Ruby Carbon Fiber Infrared Heating Lamp
The biggest difference between Short Wave ir lamp and the standard short-wave quartz lamp is that it uses ruby quartz tubes, which blocks the output of UV and a large amount of visible light, eliminating glare at the application site and improving production safety.
Input Voltage：230V
Input Wattage：370W
Working Lifetime：5000+ Hours
IR Distance:0.9-1.8μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 1000w R7s Infrared Lamp Quartz For Vacuum Forming Machines
30-years experience professional custom manufacturer
| Name： | Short wave white Half Infrared Lamp | Voltage ： | 24-600V |
| Wattage | 100-5000W | Heated length ： | 100-1500mm |
| Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
| Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
| Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Carbon Infrared helps chocolate keep its temper:
Previously this had been carried out by using hot air blowers . but the temperature profile proved difficult to control. This caused quality control problems and could also
cause problems at the subsequent chilling and wrapping stages. It is also important to heat the moulds before the chocolate is
poured in. If the moulds are too warm, then the chocolate can detemper as it is poured in and if they are too cold, then it can chill.
Carbon medium wave infrared systems.：Apart from the quality improvements and the more consistent presentation of the finished product, the new infrared
heating system has also provided significant savings in space and energy over the previous system.
Product Details:
Blocking UV and large amount of visible light output
No dazzling feeling in the using site , improve production safety
High electrical conversion rate , has excellent preheating effect for automatic drying Line.
Characteristics:
1.halogen lamp quartz is High-efficiency energy source.
2.halogen lamp quartz is Non-contact heating.
3.halogen lamp quartz can Intelligent heat and control temperature precisely.
4.halogen lamp quartz is Clean heat source.
5.halogen lamp quartz can Quick on/off response.
6.halogen lamp quartz has Long life and constant energy emission.
7.halogen lamp quartz is Heating in vacuum.
OEM/ODM
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | ***** | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ white/ clear | 6.Base： | SK15、R7s、..... |
Or you can directly send us the photos and drawings.
CLICK TO CONTACT US !

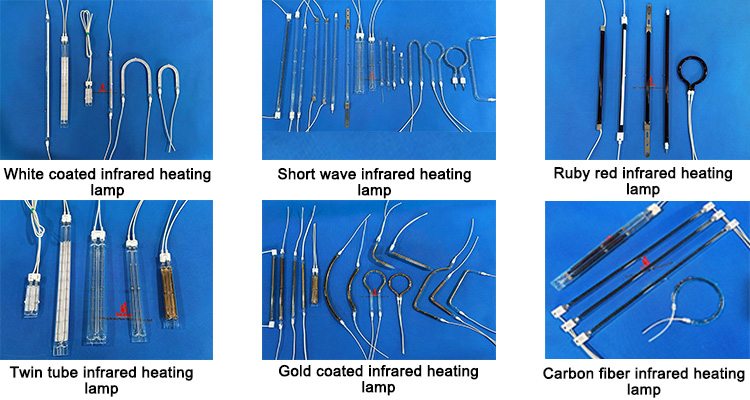

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.
Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
According to our experience, the characteristics of the irradiated objects (heating /drying/ physiotherapy/ disinfection) are different,
and the spectrum energy absorption caused by infrared radiation are also different.
When selecting infrared radiation products ,we recommend that customers pay special attention to the following data in order to select suitable products:
