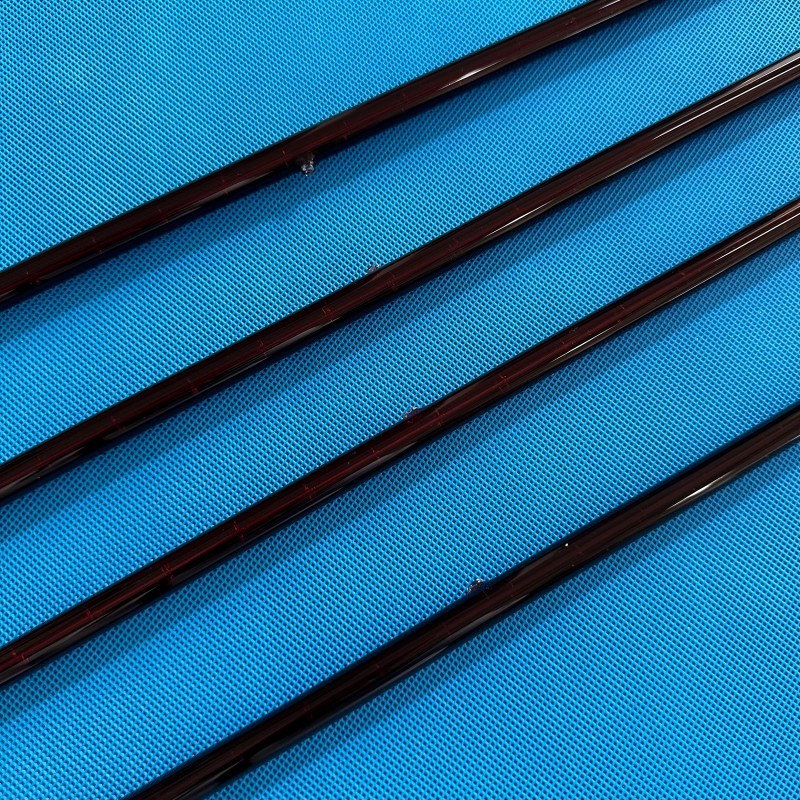

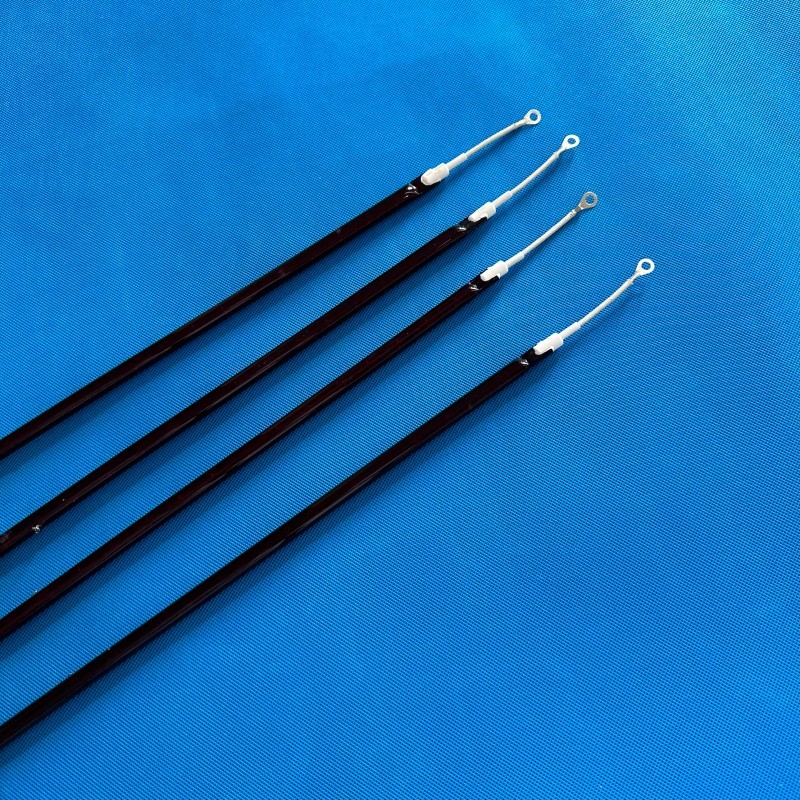

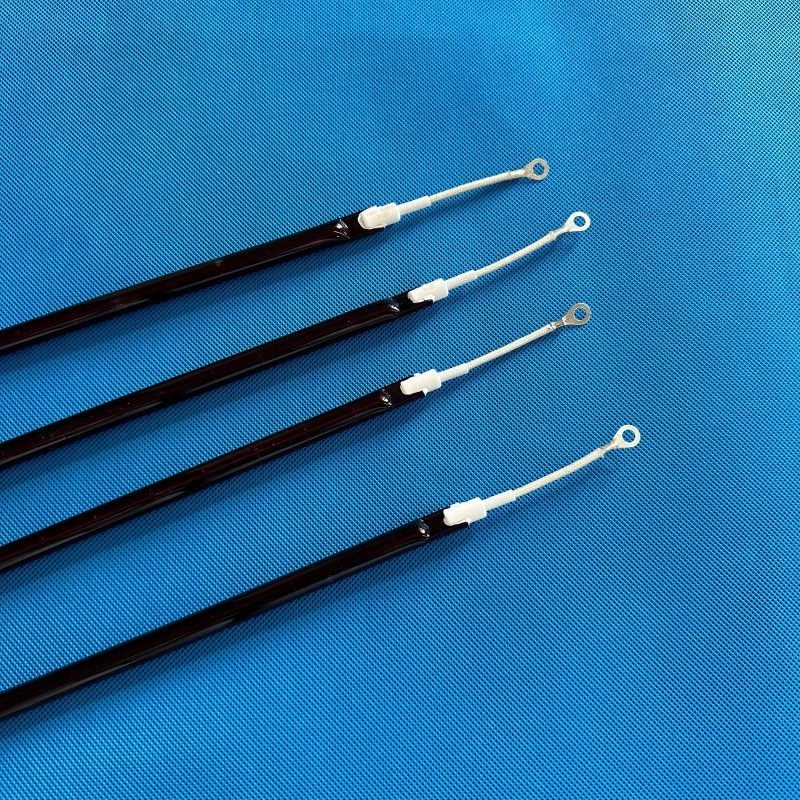

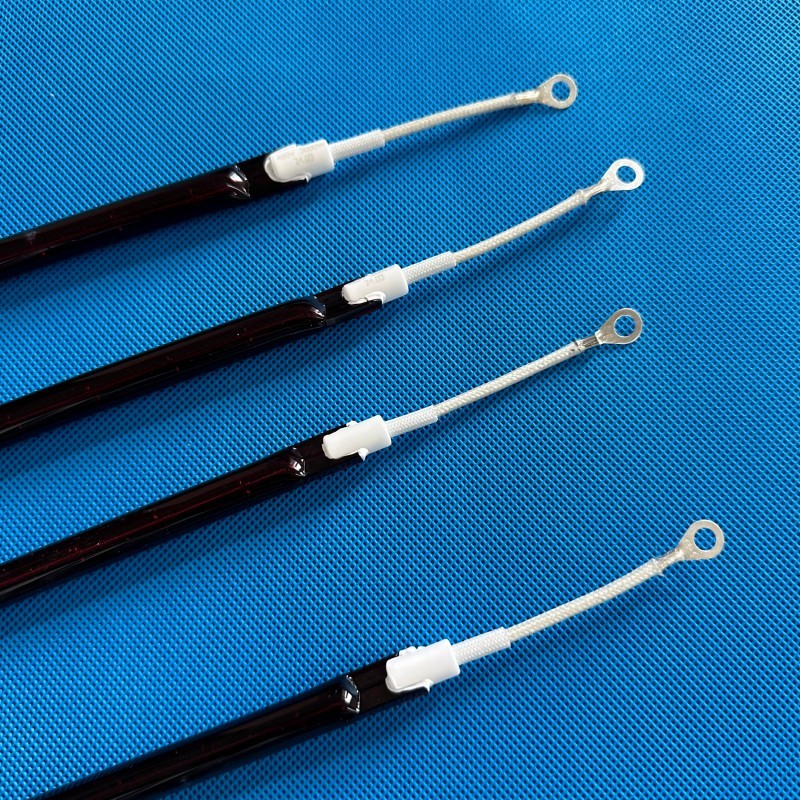

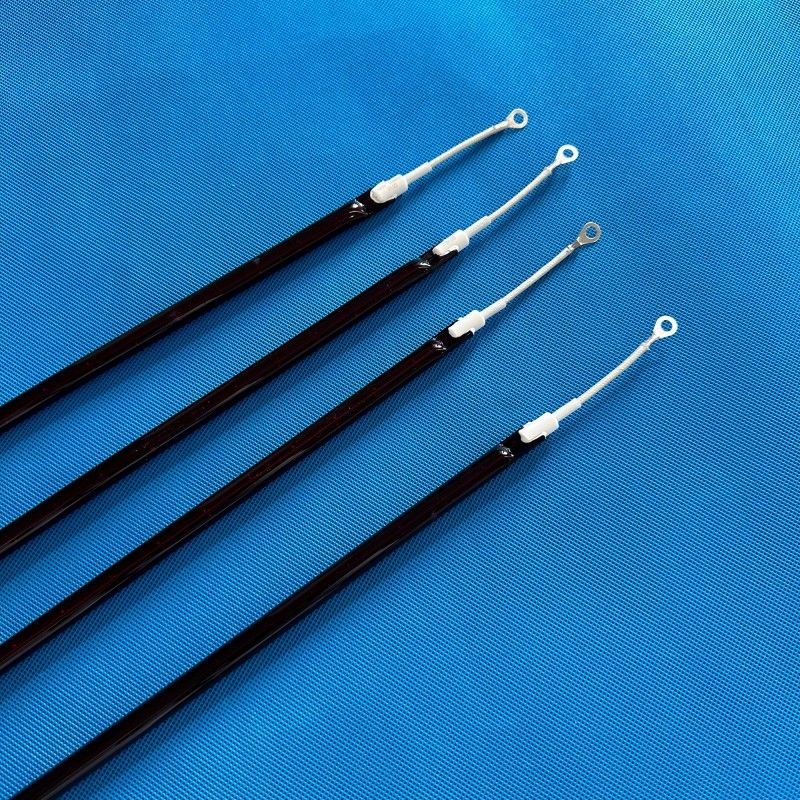

Ruby Tungsten Halogen Lamp For Electric Roaster
The biggest difference between Short Wave ir lamp and the standard short-wave quartz lamp is that it uses ruby quartz tubes, which blocks the output of UV and a large amount of visible light, eliminating glare at the application site and improving production safety.
Input Voltage：480V
Input Wattage：3000W
Working Lifetime：5000+ Hours
IR Distance:0.9-1.8μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 1000w quartz heater infrared heat lamp light Ir tube use for paint drying curing
Name： | Short wave half white Half coated Infrared Lamp | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1-2um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Product Details:
Blocking UV and large amount of visible light output
No dazzling feeling in the using site , improve production safety
High electrical conversion rate , has excellent preheating effect for automatic drying Line.
Omnidirectional lighting type:
The standard models are all horizontal lighting specification.
Lamps may fail or have extremely reduced life if the lamp is turned on when inclined at an angle exceeding the permitted angle (horizontal ±4°), Consult REMA if you require lighting at angles
exceeding the permitted angle. The addition of dimples to the seal body during manufacture allows the lamp to emit light at any angle when attached to fixed supports.
Customized Service
No suitable product for you? Welcome to contact us .REMA Design an infrared lamp for the unique you ！
With thousands of specification IR lamps,infrared short wave lamp (SW), infrared medium wave lamp (MW),
Infrared fast medium wave lamp (Fast MW) and infrared special lamp, more than 30 years processing experience,
Skilled and experienced technical team, Make our products more excellent , Welcome to customize it according to your requirements .
Lamp Base
Reflective coating of the lamp
Terminal
Characteristics:
infrared halogen lamp are Energy-saving, Space-saving, Highly efficient, Environmentally Friendly.
infrared halogen lamp are High-efficiency energy source.
infrared halogen lamp Intelligent heat and control temperature precisely.
infrared halogen lamp are Long life and constant energy emission.
infrared halogen lamp are Nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
Applications
Paint drying
Pre-heating of PET perform
Silicon wafer manufacturing process in Semiconductor
Drying process in paper mill
Plastics thermoforming
Fusing printing ink
Edge wrapping
Activating adhesives
