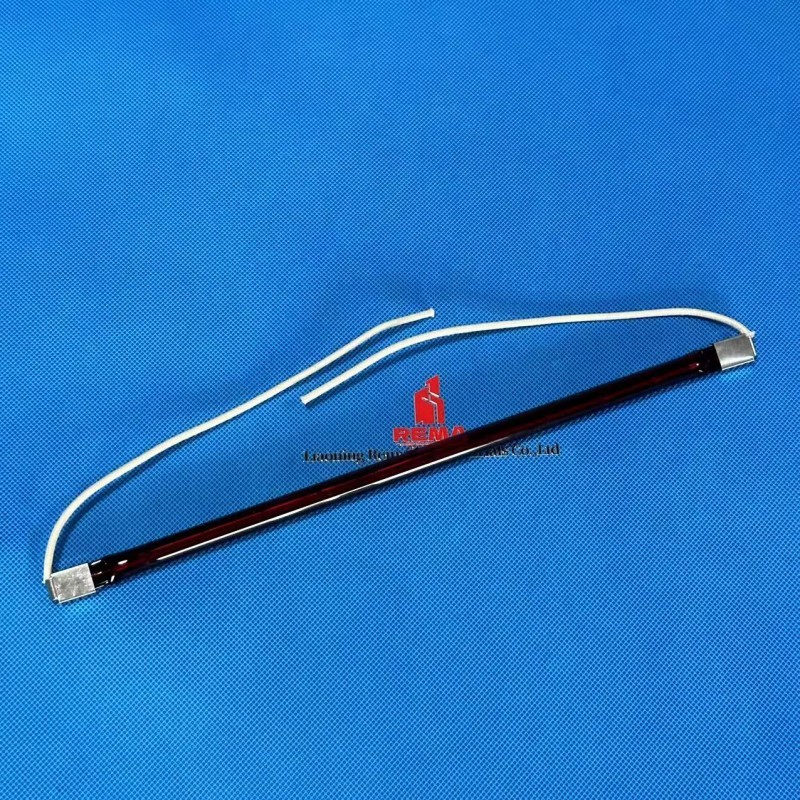

SK-17 Halogen Infra Red Emitter Lamp For Electric Warmer
The biggest difference betweenInfra Red Emitter and the standard short-wave quartz lamp is that it uses ruby quartz tubes, which blocks the output of UV and a large amount of visible light, eliminating glare at the application site and improving production safety.
Input Voltage：220V
Input Wattage：800W
Working Lifetime：5000+ Hours
IR Distance:2-4μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 1000w Halogen IR Heater Lamp Quartz For Vacuum Forming Machine
Clean heating process , no pollution.
High-efficiency energy source.
Long life and constant energy emission
Direct heat transfer , little loss in air saving 60% energy
Quick on/off response.
Heating in vacuum.
High purity 99.99% qurtz glass tube
Name： | Halogen Infra Red Emitter | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1400mm |
Response time： | 1-2 s | Wavelength： | 0.9-1.8 um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Heating, drying, coating, Laminating, Annealing , Forming, Printing | |||
Product Details:
Blocking UV and large amount of visible light output
No dazzling feeling in the using site , improve production safety
High electrical conversion rate , has excellent preheating effect for automatic drying Line.
Short wave quartz infrared heaters are used in various industrial applications：
PET performs heating in stretch blow moulding machines.
Deburring of plastic
Edge wrapping
Drying of paints
Processing Plastic foils and sheet
Food industry.-Instant noodles,vegetable bags, chocolate
Carbon Infrared helps chocolate keep its temper:
Previously this had been carried out by using hot air blowers . but the temperature profile proved difficult to control. This caused quality control problems and could also
cause problems at the subsequent chilling and wrapping stages. It is also important to heat the moulds before the chocolate is
poured in. If the moulds are too warm, then the chocolate can detemper as it is poured in and if they are too cold, then it can chill.
Carbon medium wave infrared systems.：Apart from the quality improvements and the more consistent presentation of the finished product, the new infrared
heating system has also provided significant savings in space and energy over the previous system.
OEM/ODM
If the parameter is not suitable for you. Welcome to contact us .REMA Design an infrared lamp for the unique you ！
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | **mm | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ White/ Clear/Black | 6.Base： | SK15、R7s、..... |
| Or you can directly send us the photos and drawings. | |||
Custom Lamp Base LOGO
REMA uses laser printing LOGO. Make the LOGO more clear , durable and not easy to disappear by friction.
AFTER-SALE GUARANTEE

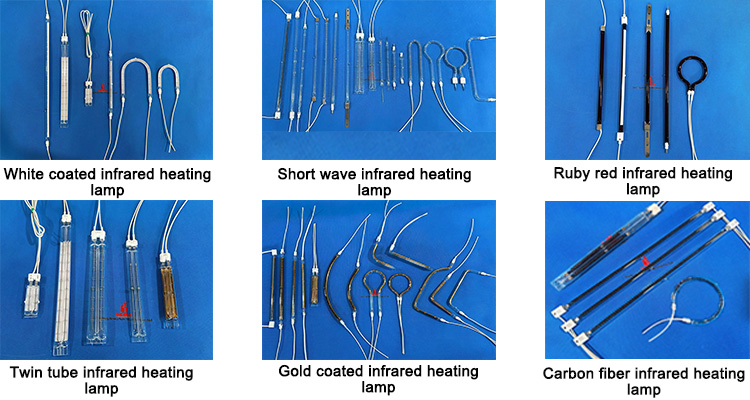

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.
Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
