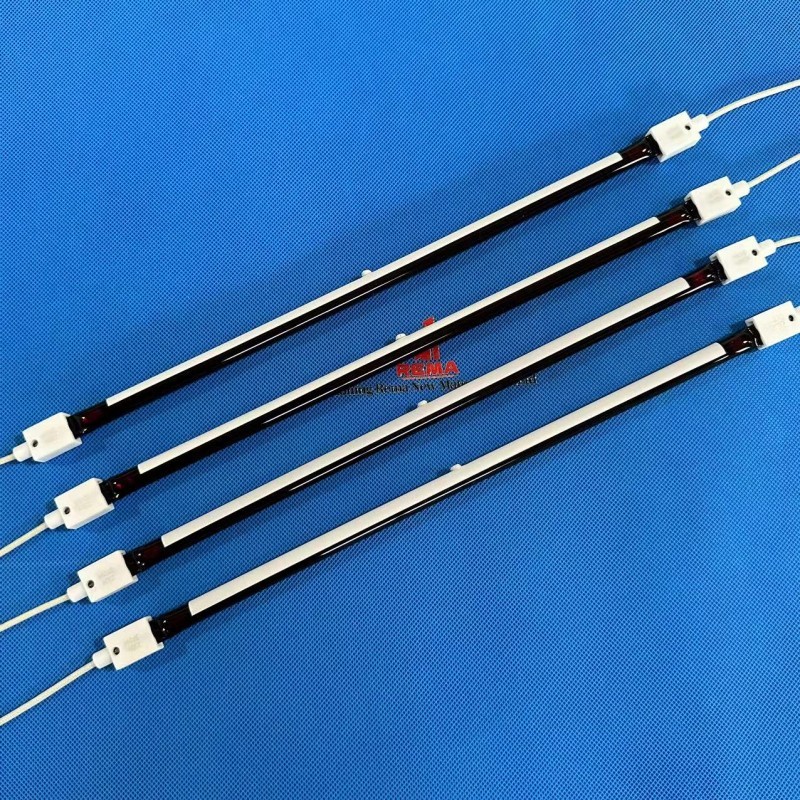

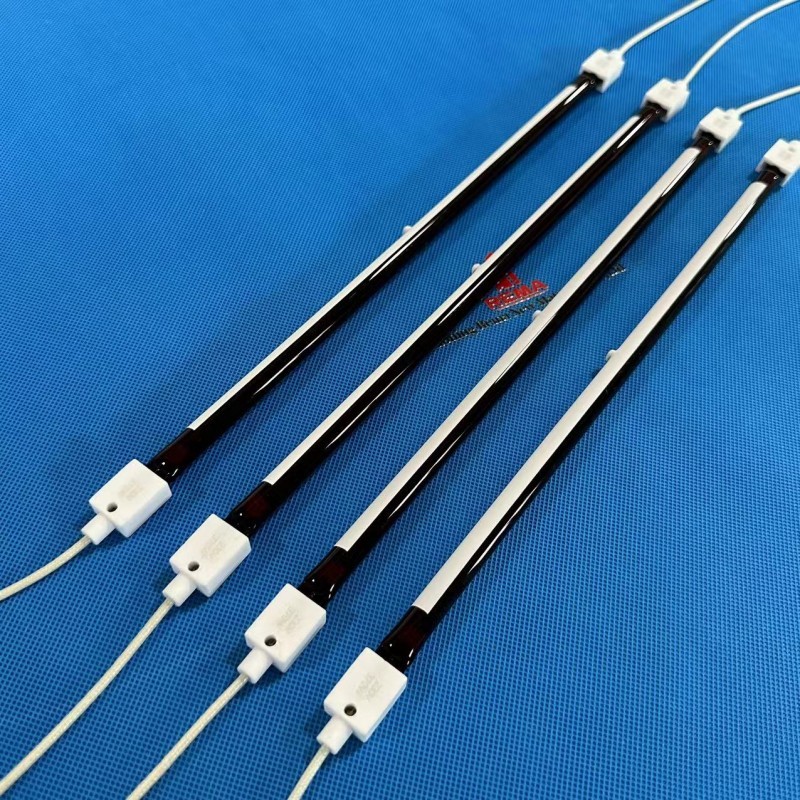

Ruby Quartz Ir Heating Lamp For Pet Blow Molding Machine
The biggest difference between Short Wave ir lamp and the standard short-wave quartz lamp is that it uses ruby quartz tubes, which blocks the output of UV and a large amount of visible light, eliminating glare at the application site and improving production safety.
Input Voltage：230V
Input Wattage：370W
Working Lifetime：5000+ Hours
IR Distance:0.9-1.8μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA quartz heater Infrared lamp for pet blow molding machine
Name： | quartz ir heating lamp | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1400mm |
Response time： | 1-2 s | Wavelength： | 0.9-1.8um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
WHY WITH WHITE REFLECTIVE COATING:
Half white coating, effectively transmit and focus heat on materials.more than 70% reflection efficiency.The reflective coating can be customized：
180 degree half white reflecter
doube sides white reflecters
240 degree white reflecer
With professional coating technology
The white relfeter coating is stable,long time working not easy to to fall off.
Halogen heaters with reflective film
A white coating is applied to the rear surface of the lamp which increases the efficiency and the energy
emitted from the front of the lamp, and eliminates the optical components, such as the reflective mirror,
reducing the cost. It also helps suppress the increase in temperature of surfaces on the side of the reflective
film.
Customized Service
No suitable product for you? Welcome to contact us .REMA Design an infrared lamp for the unique you ！
With thousands of specification IR lamps,infrared short wave lamp (SW), infrared medium wave lamp (MW),
Infrared fast medium wave lamp (Fast MW) and infrared special lamp, more than 30 years processing experience,
Skilled and experienced technical team, Make our products more excellent , Welcome to customize it according to your requirements .
Lamp Base

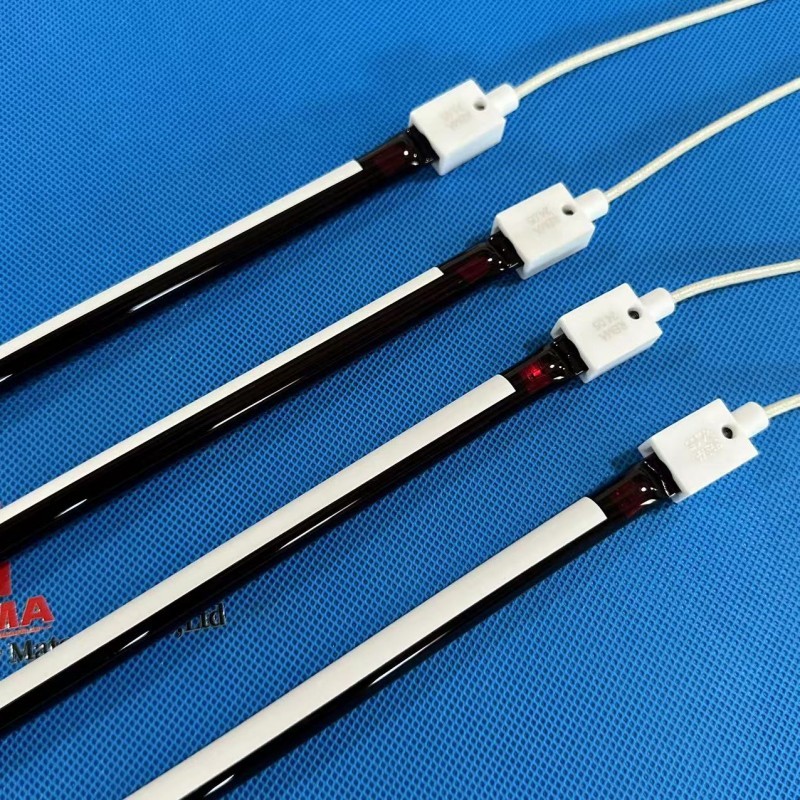

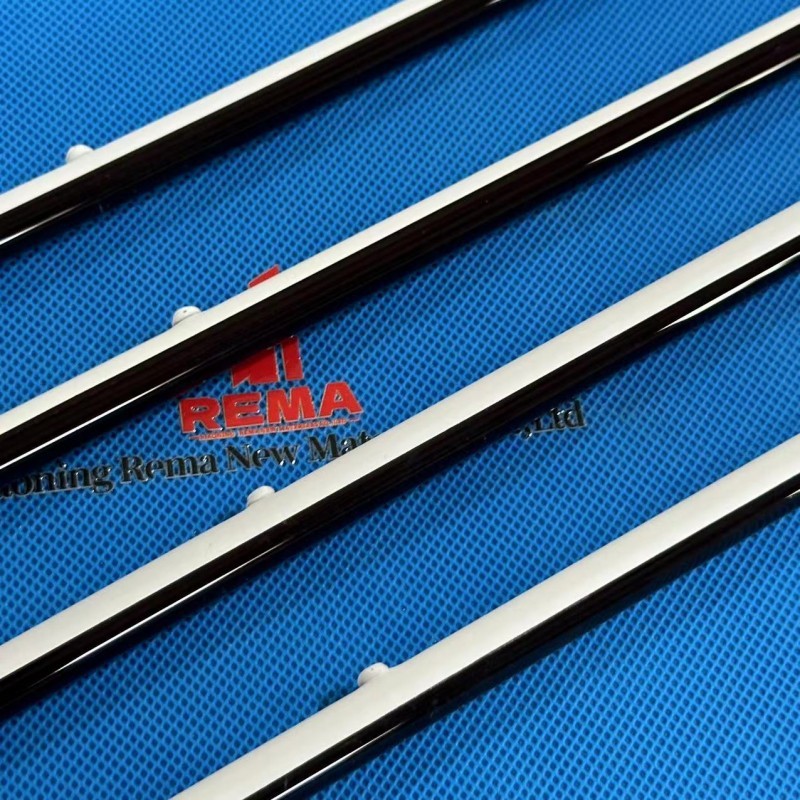

Reflective coating of the lamp

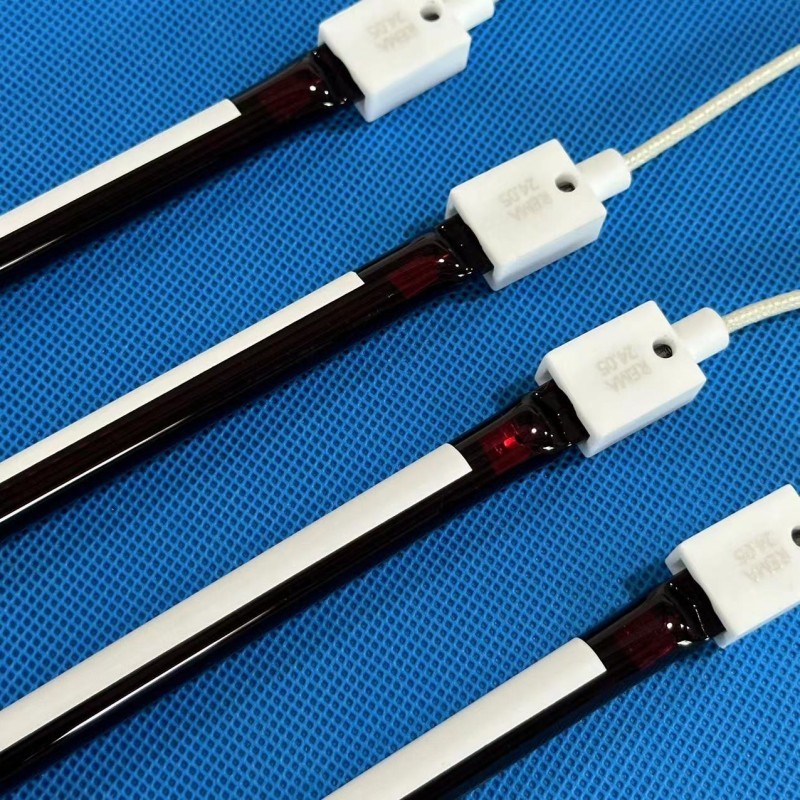

Terminal
Characteristics:
Short Wave Infrared Lamp is High-efficiency energy source.
Short Wave Infrared Lamp is Non-contact heating.
Short Wave Infrared Lamp can Intelligent heat and control temperature precisely.
Short Wave Infrared Lamp is Clean heat source.
Short Wave Infrared Lamp can Quick on/off response.
Short Wave Infrared Lamp has Long life and constant energy emission.
Short Wave Infrared Lamp is Heating in vacuum.
