Twin Tube Industry Short Wave Infrared IR Emitters For Paint Curing
Industry Infrared Emitters has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：220V
Input Wattage：2000W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 2000w Dual Double Halogen Quartz Heater Shortwave Twin near Infrared Heat Lamp
Name： | Short wave half white Half coated Infrared Lamp | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1-2um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||

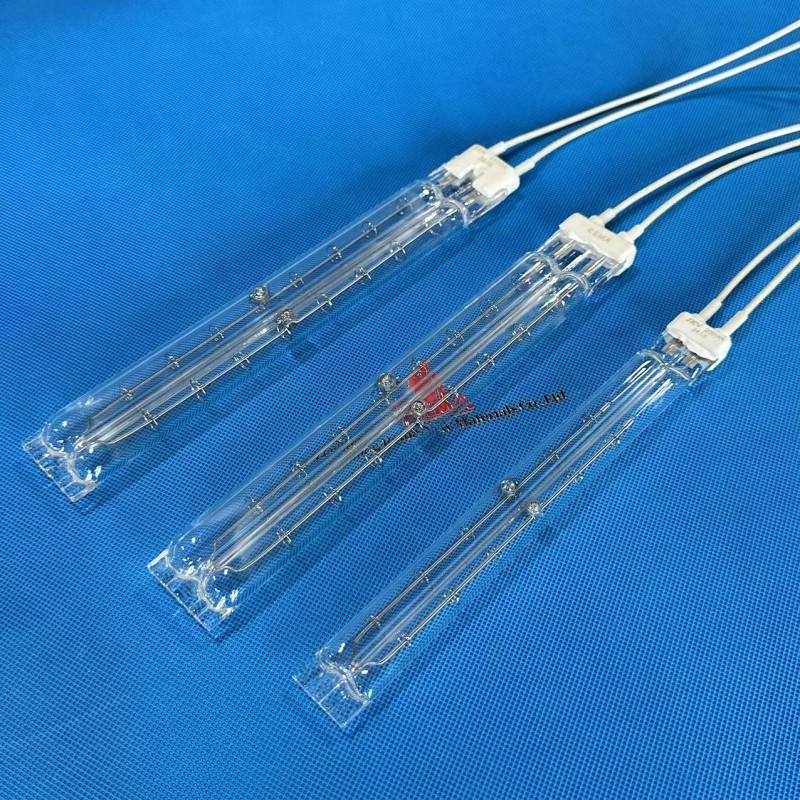

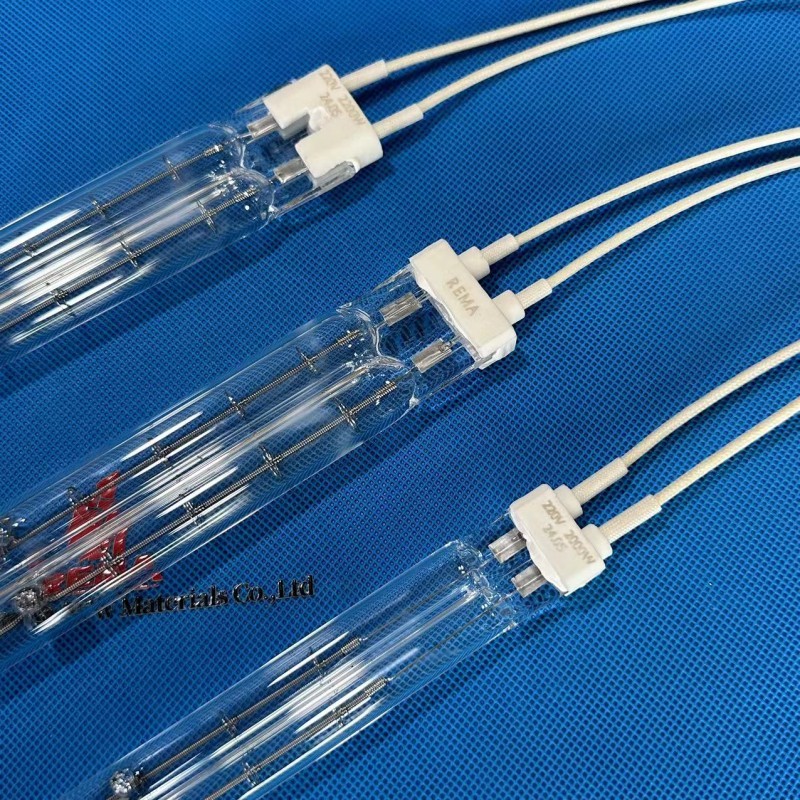

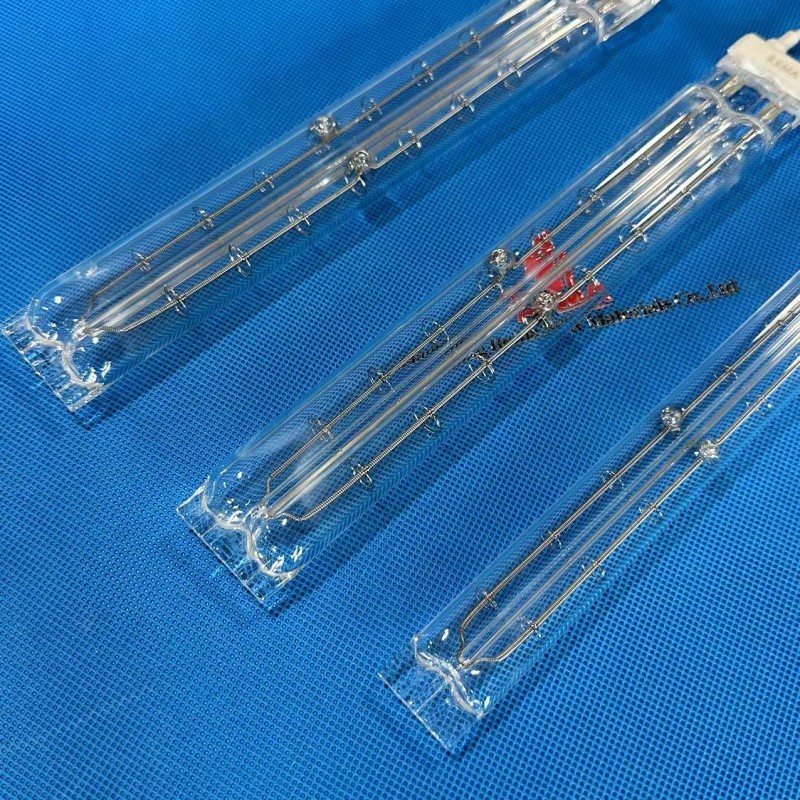

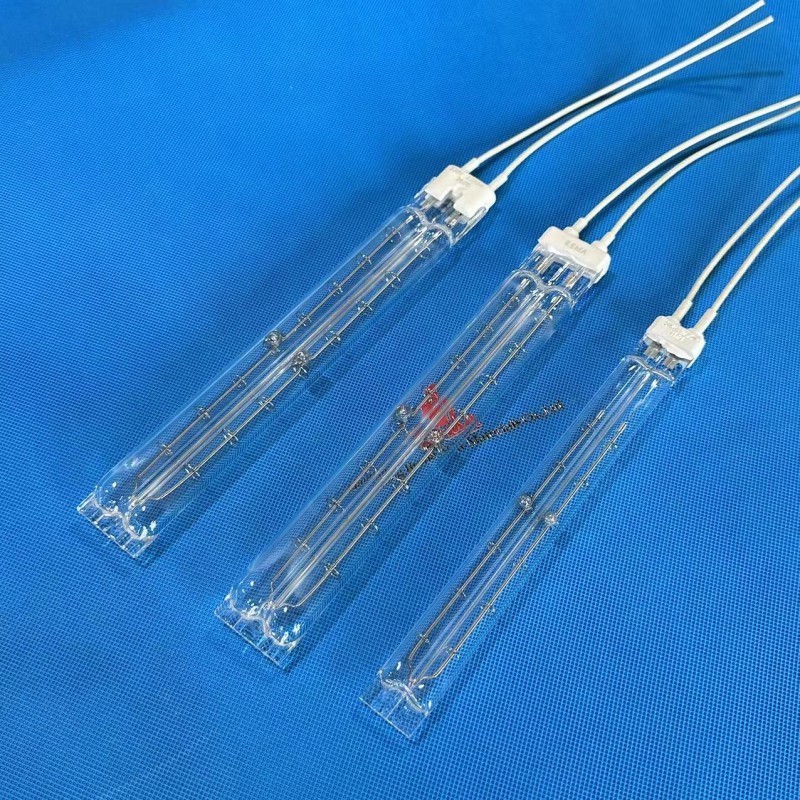

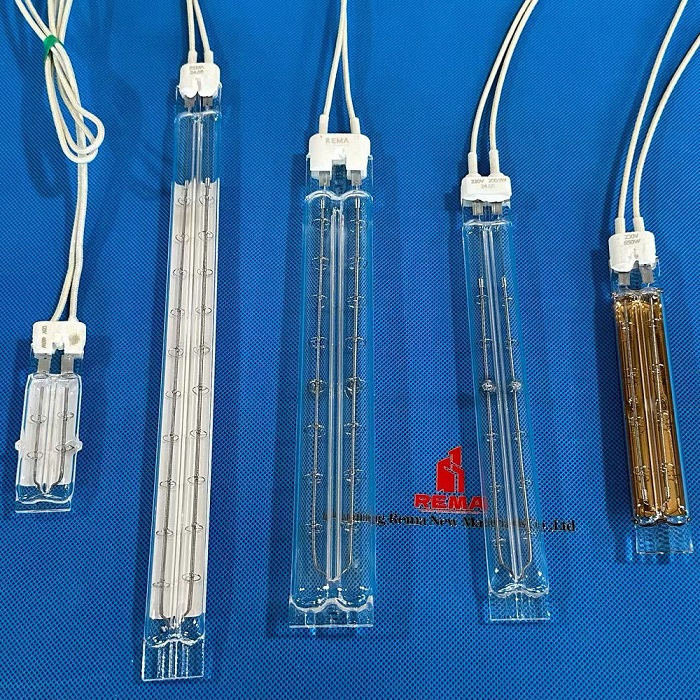

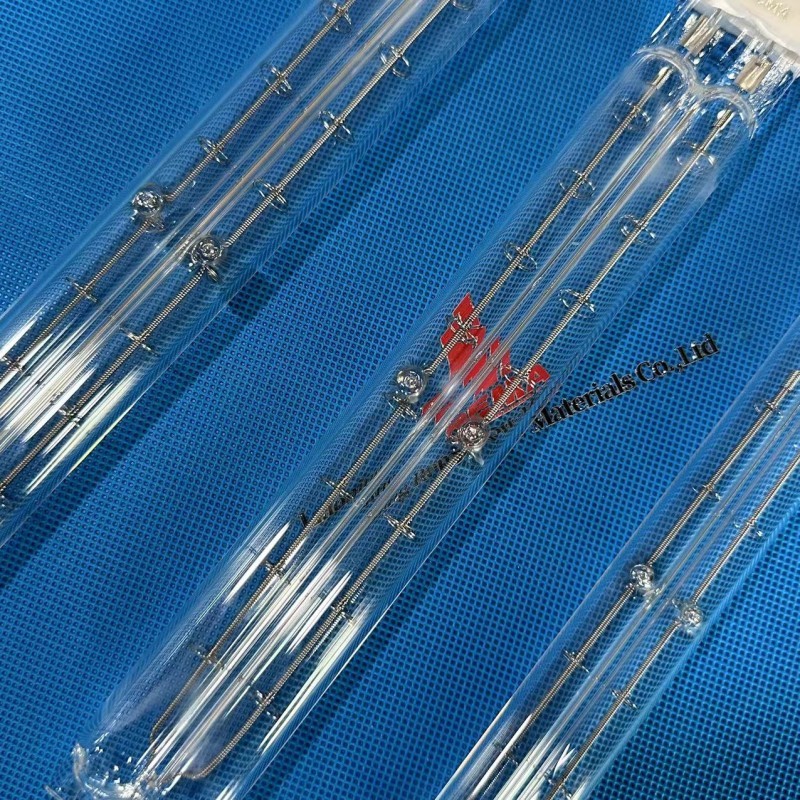

If you need a quartz lamp with higher radiation intensity and longer effective radiation area, we recommend the infrared twin-tube quartz radiator.
This product is widely used in various fields with rapid temperature rise. It uses tungsten wire with a bracket ring as the radiator,
which is sealed in a twin-tube quartz glass shell after being fired by a special process. After vacuuming,
it is filled with special halogen gas to increase the infrared emissivity, avoid blackening, and extend the life.
Twin tube shortwave radiation has low thermal inertia and can be used for the processing of heat-sensitive materials and other special fields.
The conventional twin tube cross-section (AxB) is: 22x11mm, 33x16mm.
Customized Service
No suitable product for you? Welcome to contact us .REMA Design an infrared lamp for the unique you ！

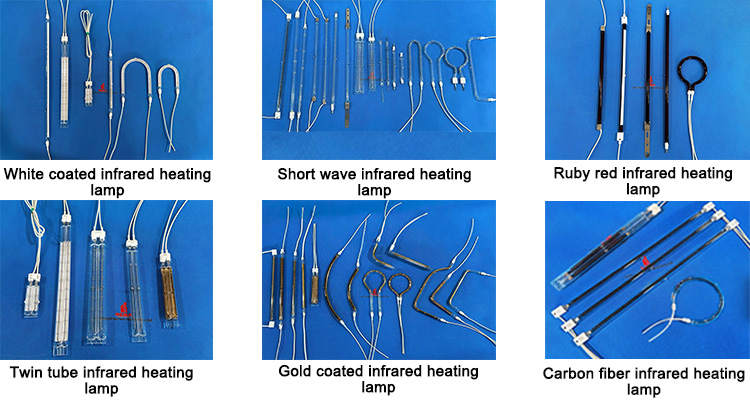

With thousands of specification IR lamps,infrared short wave lamp (SW), infrared medium wave lamp (MW),
Infrared fast medium wave lamp (Fast MW) and infrared special lamp, more than 30 years processing experience,
Skilled and experienced technical team, Make our products more excellent , Welcome to customize it according to your requirements .
Lamp Base
Reflective coating of the lamp
Terminal
Characteristics:
1.High-efficiency energy source.
High-efficiency heat sources that convert and emit over 85% of the input power to infrared. Lamp-based heat irradiation produces high-quality infrared irrespective of the ambient temperature .
2.Clean heating process , no pollution.
3.Long life and constant energy emission
Halogen-cycle lamp for long-life design of 5,000 hours.
4.Energy saving and environmental protection
Can accurately control the radiation of energy, does not consume oxygen, and has higher thermal efficiency than other long-wave infrared rays, energy saving and environmental protection.
5.Easy to design, manufacture and install, economical and safe.
