Quartz Infrared Heating Lamp Element For Drying Coating
quartz infrared heating element has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：380V
Input Wattage：2600W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information

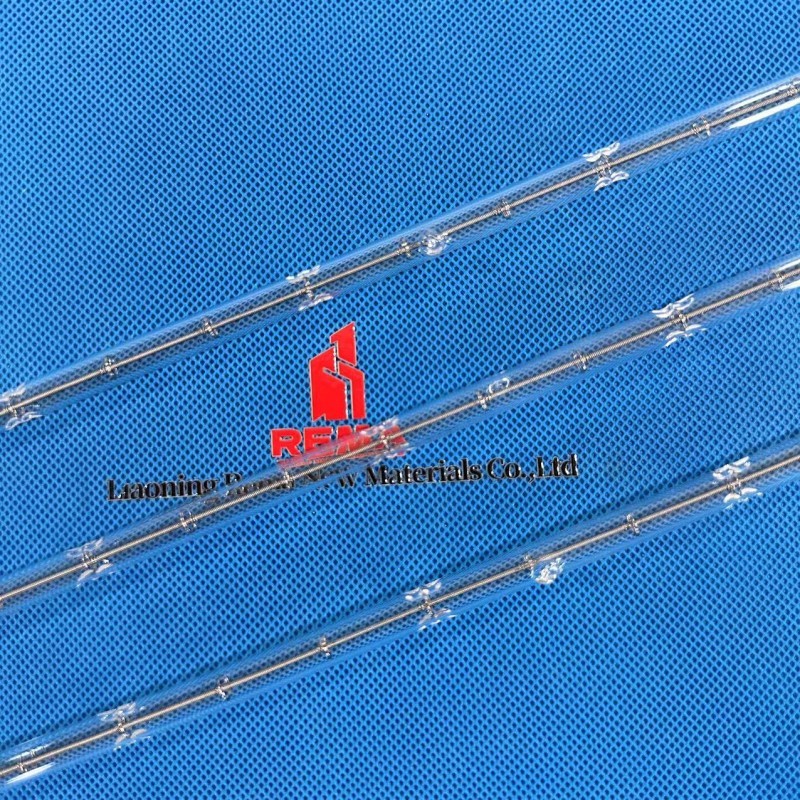

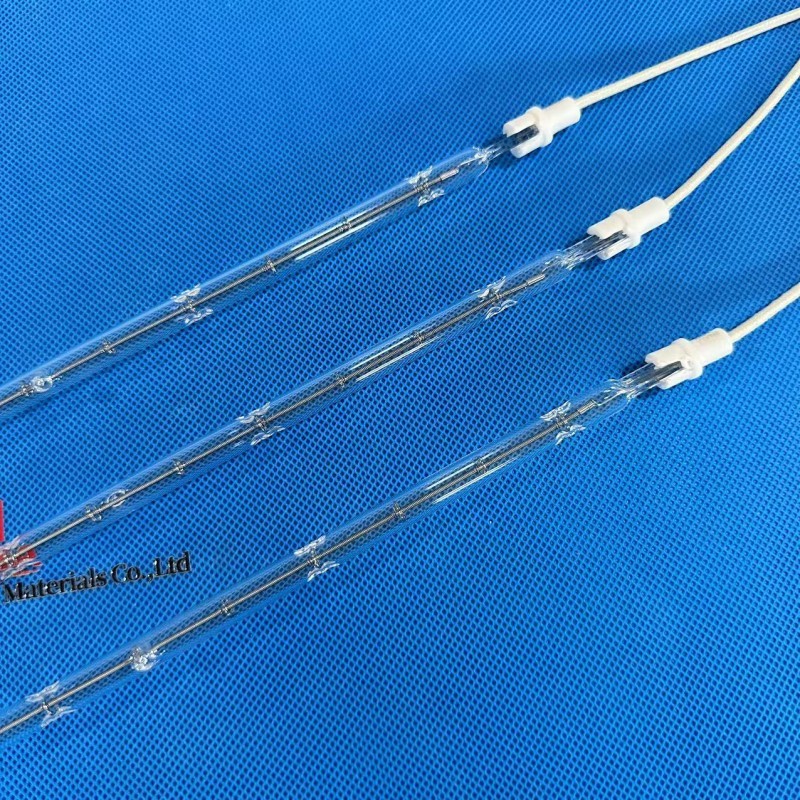

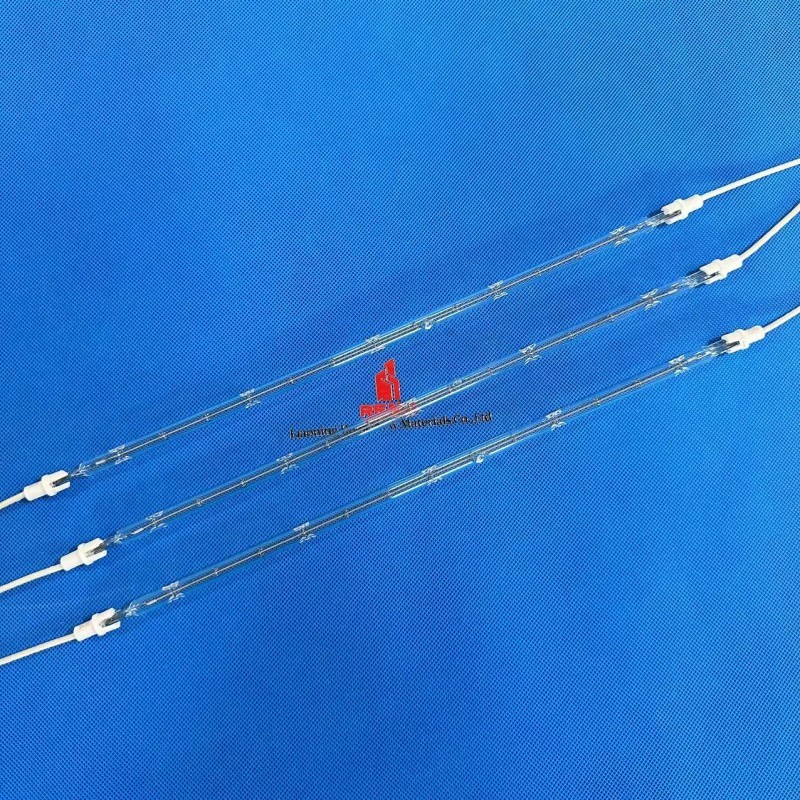

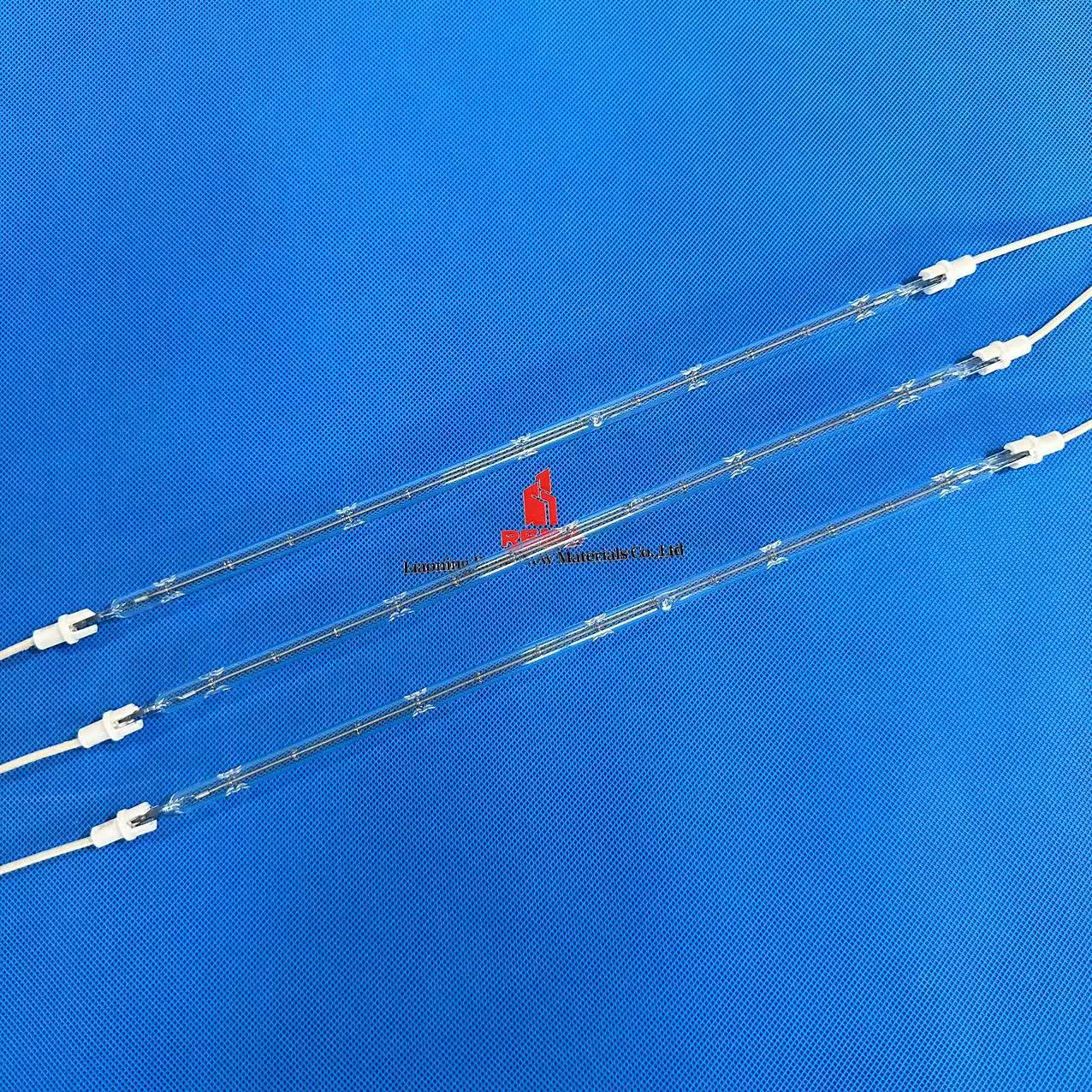

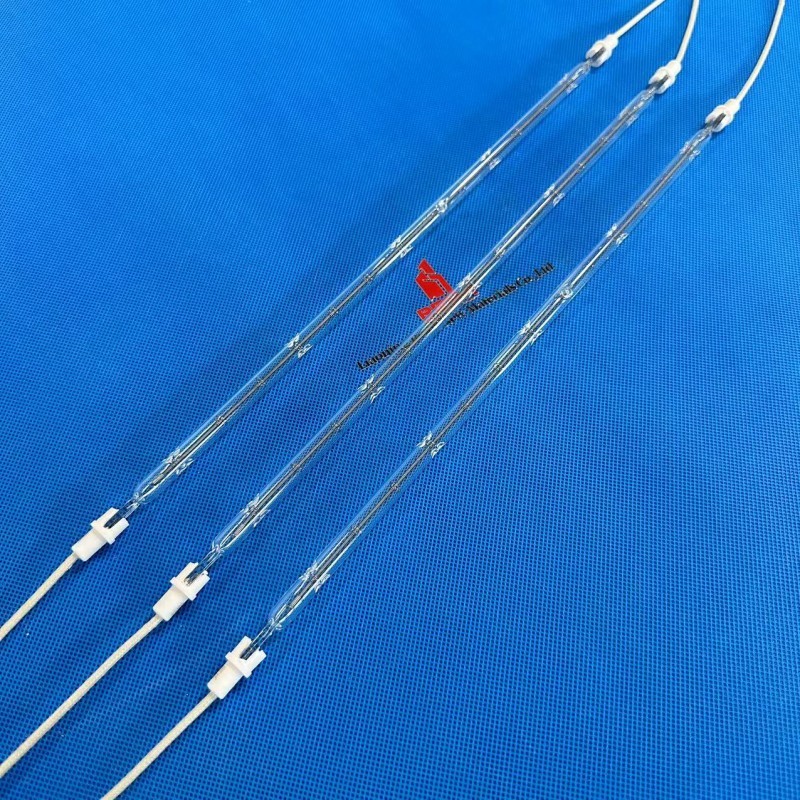

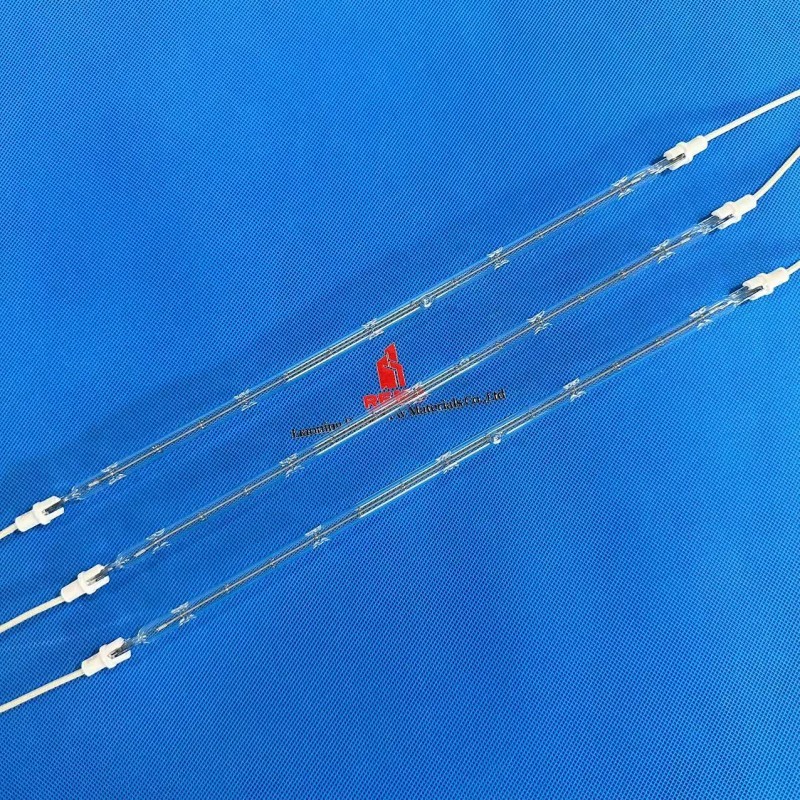

REMA Shortwave Tungsten Filament Clear Single Tube Lamp Near infrared heating element
30-years experience professional custom manufacturer
| Name： | Infrared heating element | Voltage ： | 24-600V |
| Wattage | 100-5000W | Heated length ： | 100-1500mm |
| Response time： | 1-2 s | Wavelength： | 1-2um |
| Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
| Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
OEM/ODM
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | ***** | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ white/ clear | 6.Base： | SK15、R7s、..... |
Or you can directly send us the photos and drawings.
CLICK TO CONTACT US !
According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.
Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
Printing industry：
- In treadmill printing machine, quartz heating lamp is an indispensable and important component, which can accelerate the evaporation of water and solvent in printing ink or pigment, achieve rapid drying, and ensure the bright and uniform pattern.Use infrared to heat the ink and the energy-consumption of the printingis reduced.
- In other types of printing machines, such as flatbed printing machine, rotary screen printing machine, etc., quartz heating lamp is also widely used in the drying and curing process of printing materials.
- Choose suitable infrared emitters ofscientific wavelength for productsspeed up the producing speed anddouble the outputmaintain the stability of high-qualityadopt the REMA lR module with thepower of 18kw
