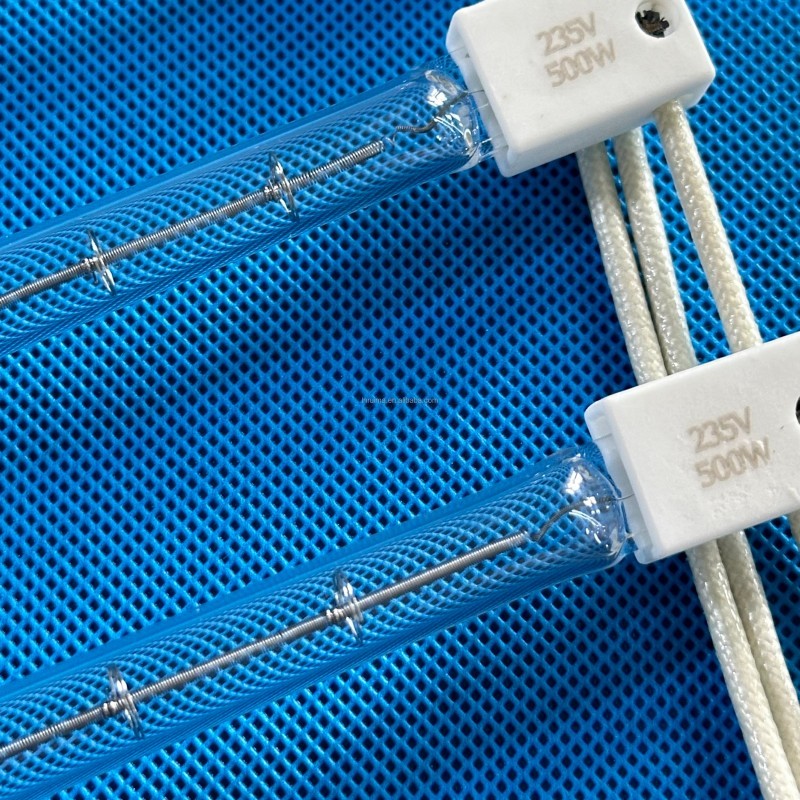

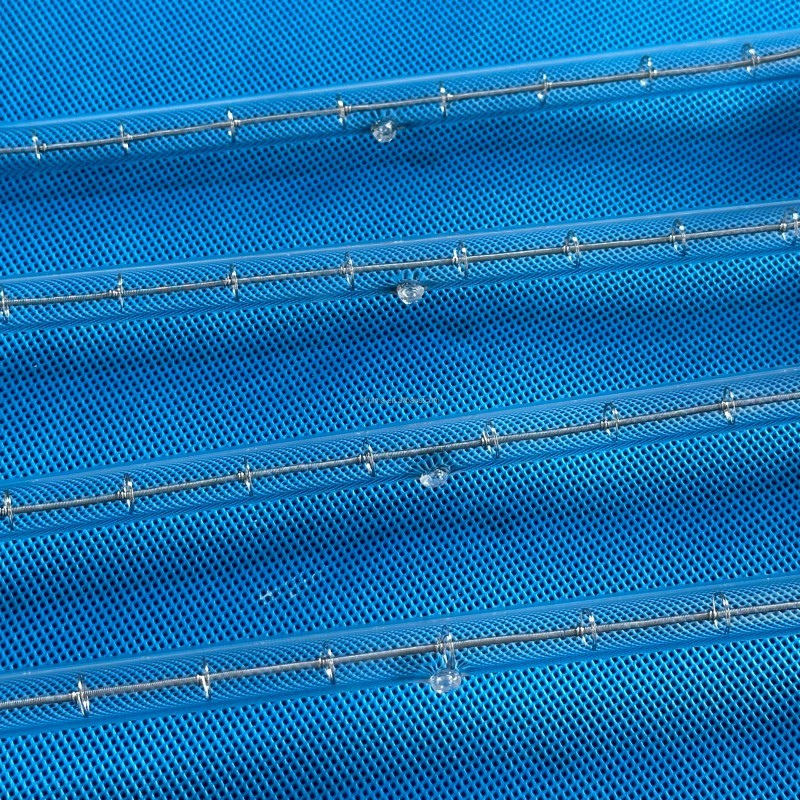

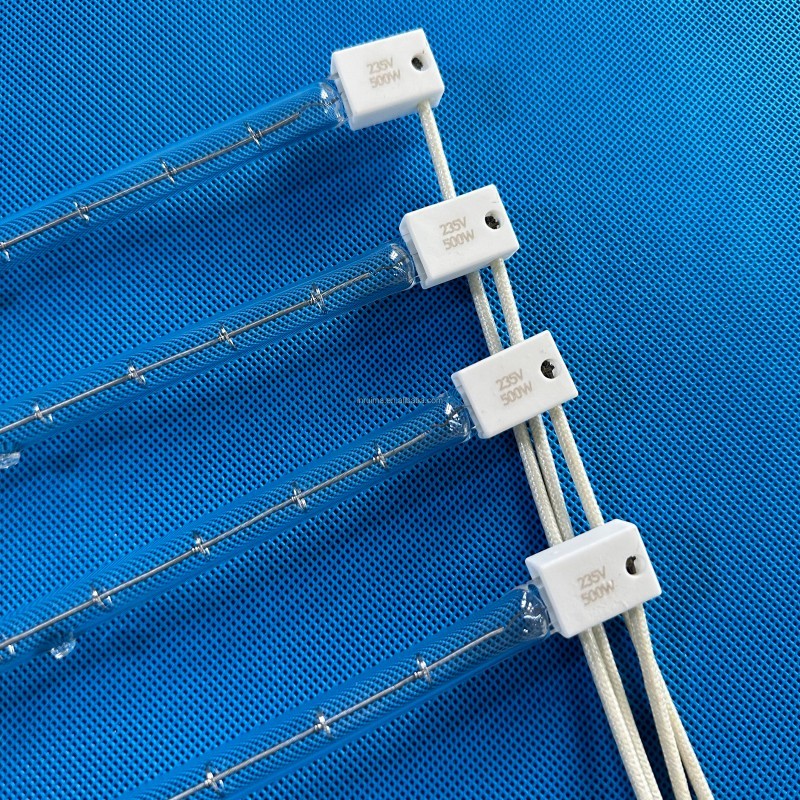

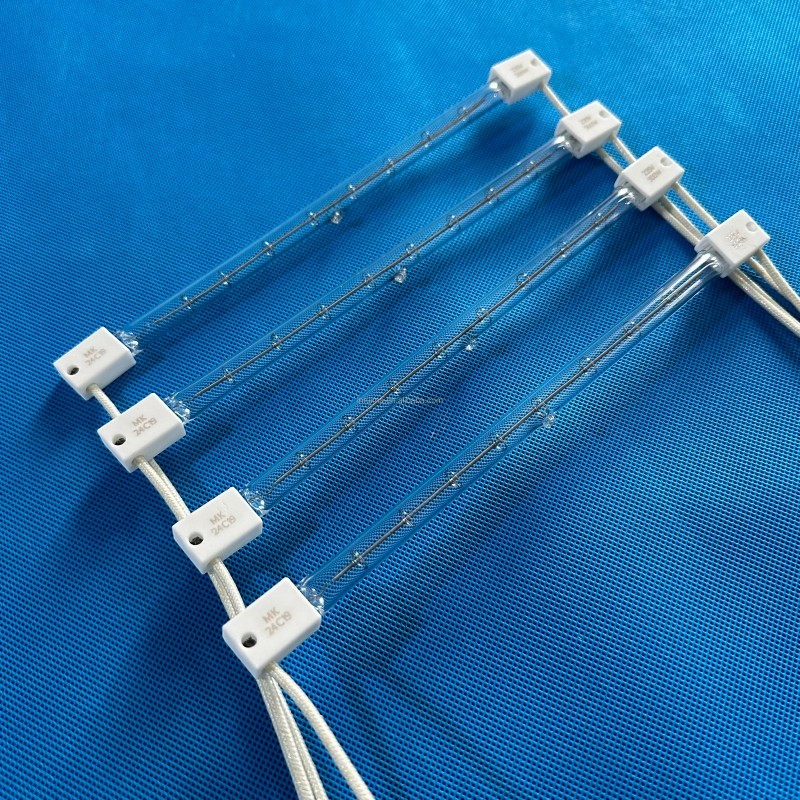

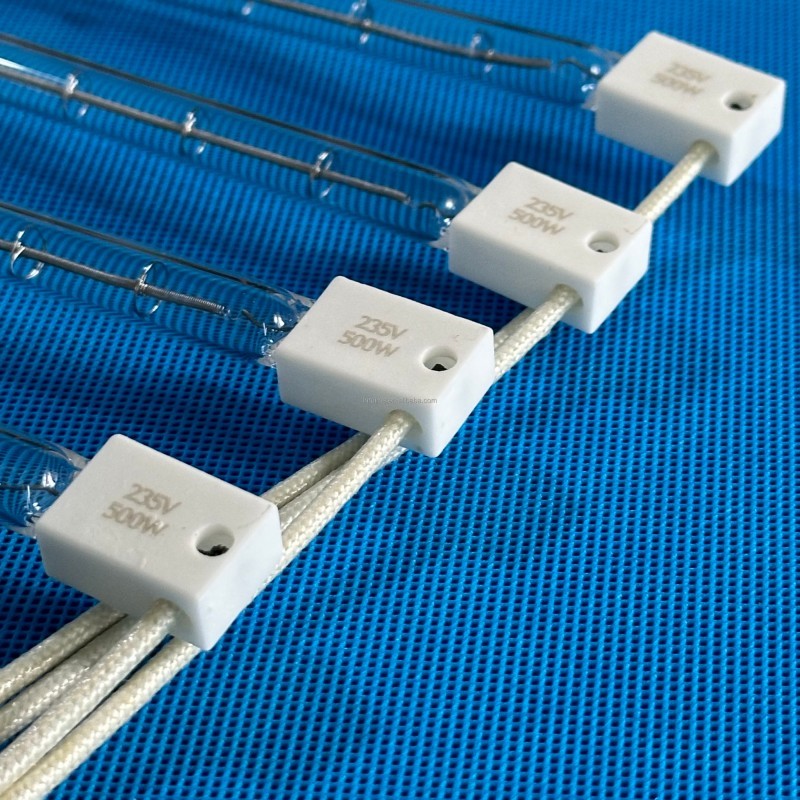

SK-15 Clear Infrared Lamp For Printing Machine

Clear Infrared Lamp has a quick response time: 1-2 Seconds, And heats up quickly,Strong radiation,Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage:220V
Input Wattage:700W
Working Lifetime:5000+ Hours
IR Distance:1-2μm.
OEM/ODM:Can be customized according to customer requirements.

  • REMA
  • China
  • 5-10 days
  • 200000 Pices
  • Information

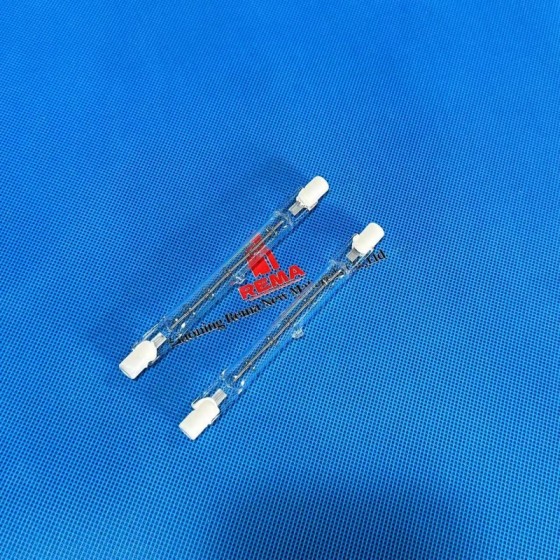

REMA 230v 500w Shortwave Infrared Paint Curing Lamp Single Tube Quartz

  • Clean heating process , no pollution

  • High temperature resistance, corrosion resistance, good thermo-chemical stability, long service life, high insulation strength.

  • Direct heat transfer , little loss in air saving 60% energy.

  • Out-from-within heating , improving the producing quality dramatically.

  • Out-from-within heating , improving the producing quality dramatically .

  • Easy to design, manufacture and install, economical and safe.

  • Wide range of matching heating , making it possible for heating many kinds of products.

Infrared Lamp

Name:

SK-15 Clear Infrared Lamp

Voltage :

24-600V

Wattage

100-5000W

Heated length :

100-1500mm

Response time:

1-2 s

Wavelength:

1.1-1.8 um

Tube diameter:

8-12mm

Filament temperature:

1100-2900℃

Short wave quartz infrared emitters are used in various industrial applications :

1. Paint drying

2. Pre-heating of PET perform

3. Silicon wafer manufacturing process in Semiconductor

4. Drying process in paper mill

5. Plastics thermoforming

6. Fusing printing ink

7. And various kind of drying processes.

APPLICATION SCENARIO

– In treadmill printing machine, quartz heating lamp is an indispensable and important component, which can accelerate the evaporation of water and solvent in printing ink or pigment, achieve rapid drying, and ensure the bright and uniform pattern.
– In other types of printing machines, such as flatbed printing machine, rotary screen printing machine, etc., quartz heating lamp is also widely used in the drying and curing process of printing materials.




OEM/ODM

If the parameter is not suitable for you. Welcome to contact us .REMA Design an infrared lamp for the unique you !

Infrared Paint Curing Lamp

How to customized ?              Pls provide this informations:
1.Voltage:220V、380V、...2.Wattage:1000w、2000w、..
3.Total length:**mm4.Wire length:500MM、.....
5.Coated or not.What color coating?Gold/ White/ Clear/Black6.Base:SK15、R7s、.....
Or you can directly send us the photos and drawings.



SK-15 Clear Infrared Lamp

Infrared Lamp

Infrared Paint Curing Lamp

SK-15 Clear Infrared Lamp

Custom Lamp Base LOGO

REMA uses laser printing LOGO. Make the LOGO more clear , durable and not easy to disappear by friction.



AFTER-SALE GUARANTEE

Infrared Paint Curing Lamp

Before we proceed with the shipment, we will send you a customized product video and packaging for your confirmation.

Infrared Paint Curing Lamp

After shipment, we will update the logistics information and tracking number in time


Infrared Paint Curing Lamp

Professional customer service.

Infrared Paint Curing Lamp

Complete package.

Infrared Paint Curing Lamp

Damaged replacement & After-sales service.



Infrared Paint Curing Lamp

We promise that we can change or refund the products if there is any quality problem.


WAVELENGTH SUGGESTION

According to our experience, the characteristics of the irradiated objects (heating /drying/ physiotherapy/ disinfection) are different, and the spectrum energy absorption caused by infrared radiation are also different.

When selecting infrared radiation products ,we recommend that customers pay special attention to the following data in order to select suitable products:

  • Metal---1~2 μm (Short wave )

  • High speed printing --- 1~2 um (Short wave )

  • Resin---2~4 μm (Middle wave)

  • High-grade matte paint drying room---3~50 μm (Long wave)

  • Glass---2-4 μm (Middle wave)

  • Water system dying---2-4 ym (Middle wave)

  • Ceramic---3-5 μm (Long wave)

  • High speed printing --- 1~2 ym (Short wave )

  • High-grade matte paint drying room---3~50 μm (Long wave)

  • Physical rehabilitative treatment (lmported bulb)---1.35um (standing A)

                                                                                ---2.2um(standing B).
