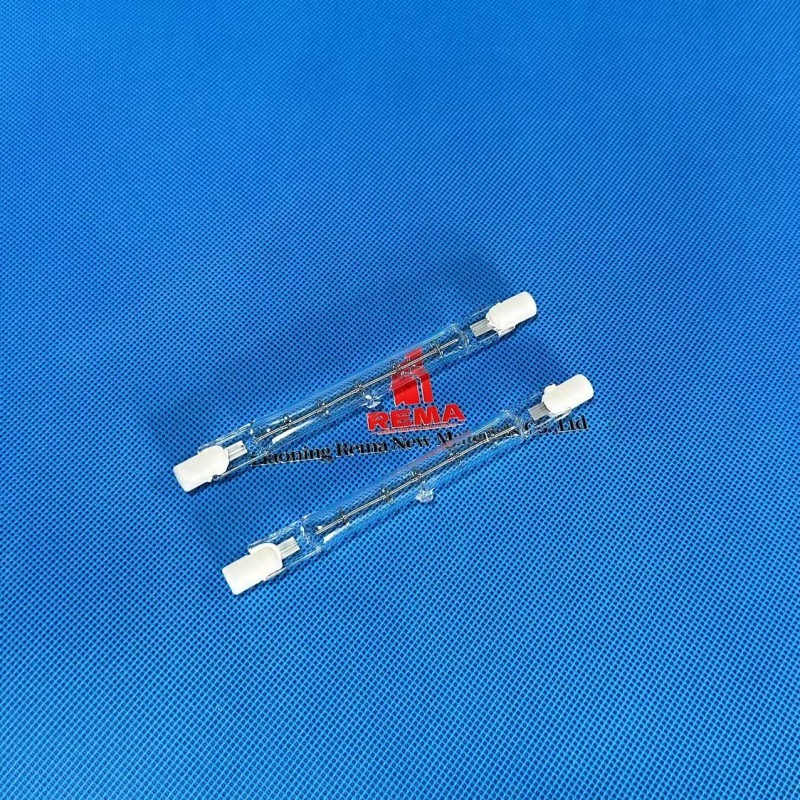

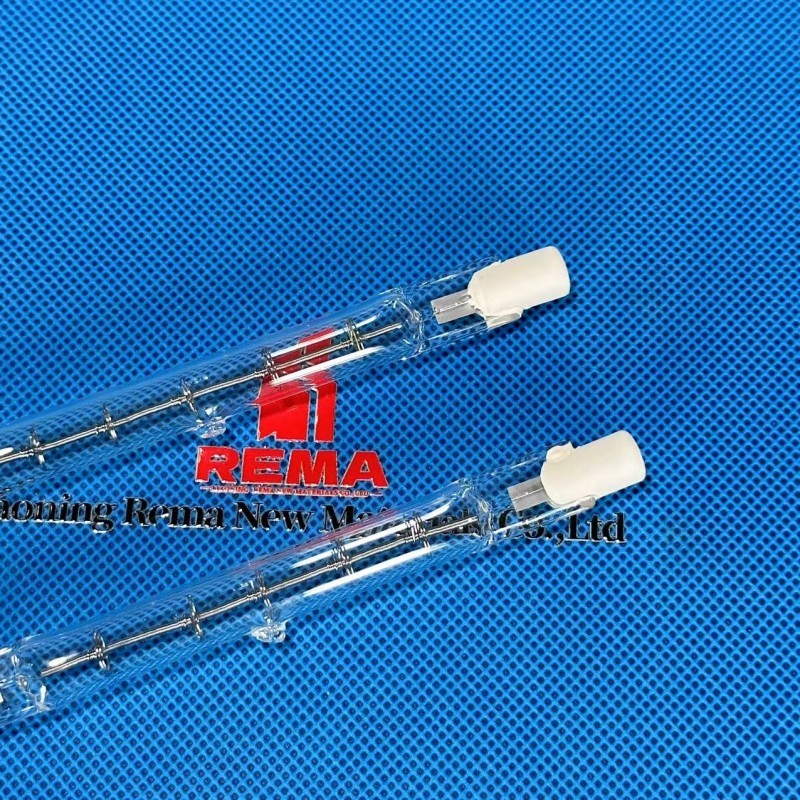

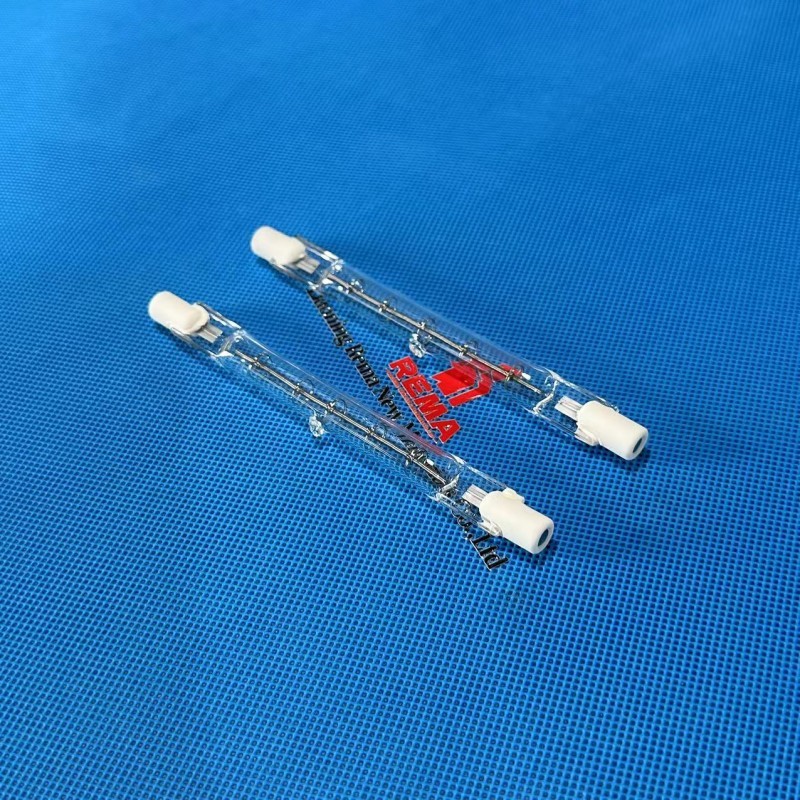

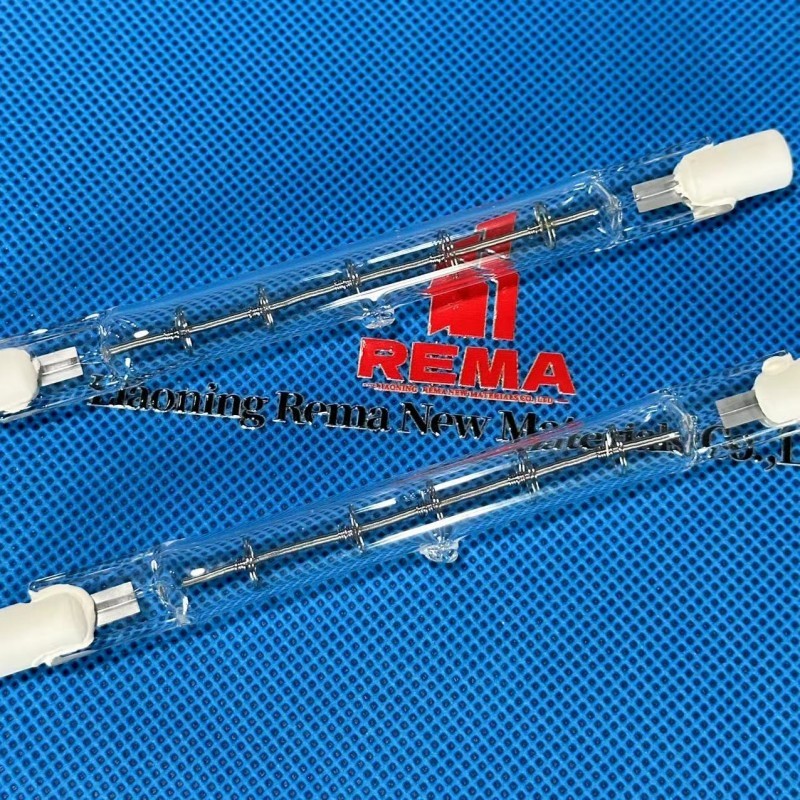

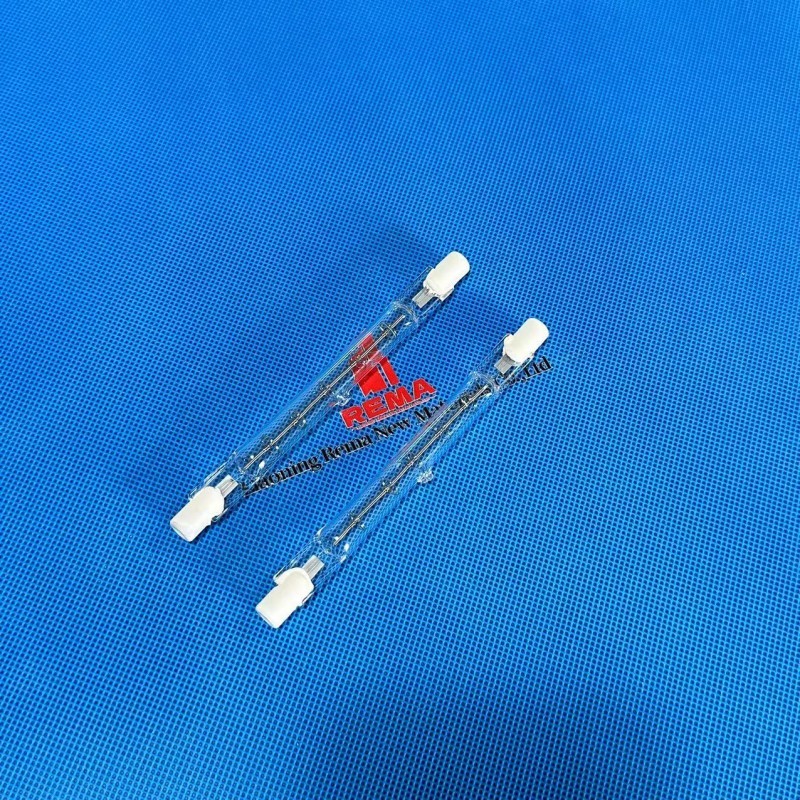

J118 220v 500w Clear Single Tube Halogen IR Lamp
Halogen IR Lamp has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：220V
Input Wattage：500W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 500w J78 150W 200W 300W 500W Tungsten J118 Halogen Lamp
30-years experience professional custom manufacturer
| Name： | Short wave Clear IR Lamp | Voltage ： | 24-600V |
| Wattage | 100-5000W | Heated length ： | 100-1500mm |
| Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
| Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
| Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
OEM/ODM
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | ***** | 4.Wire length: | 500MM、..... |

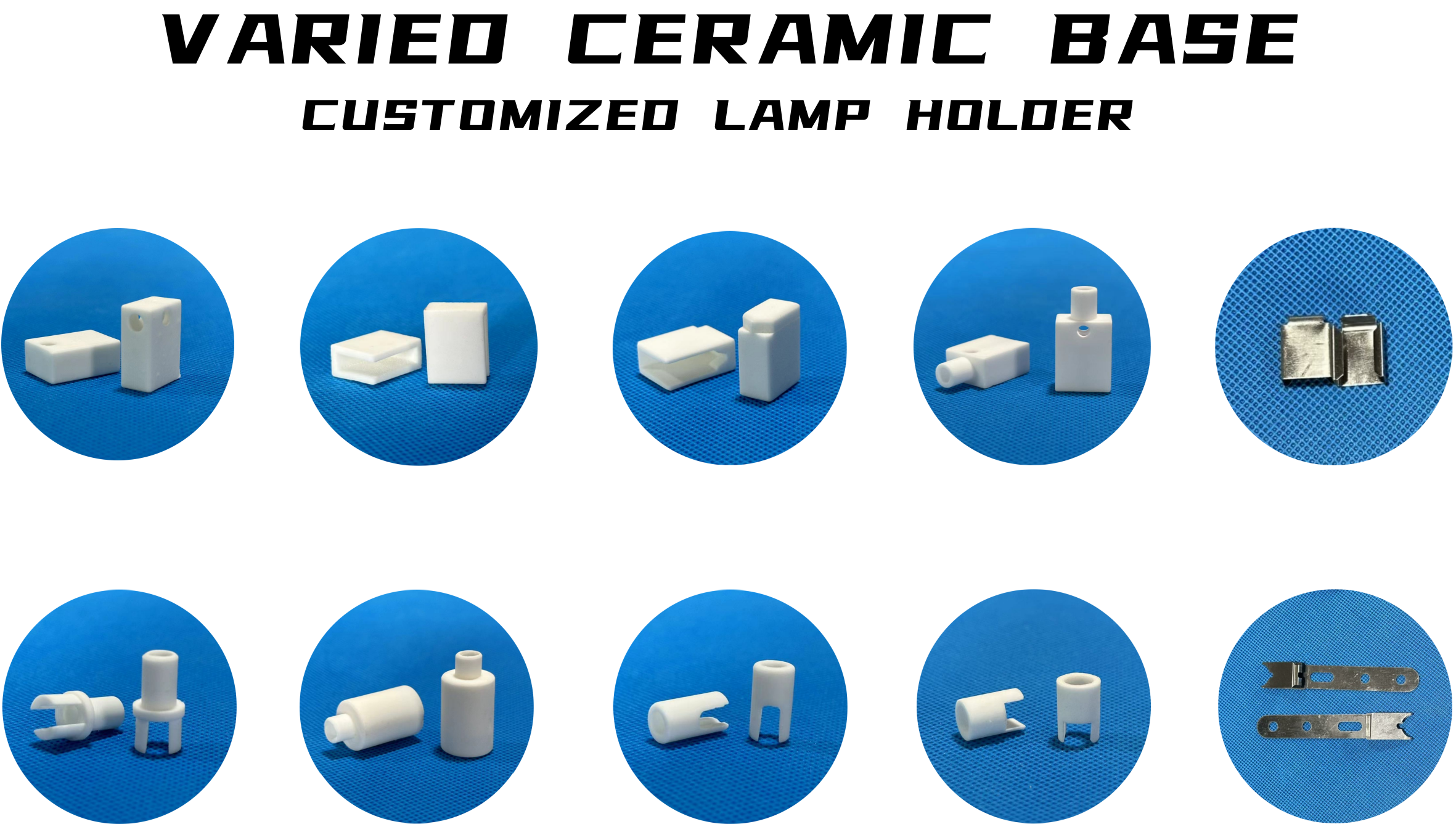

| 5.Coated or not.What color coating？ | Gold/ white/ clear | 6.Base： | SK15、R7s、..... |
Or you can directly send us the photos and drawings.
CLICK TO CONTACT US !

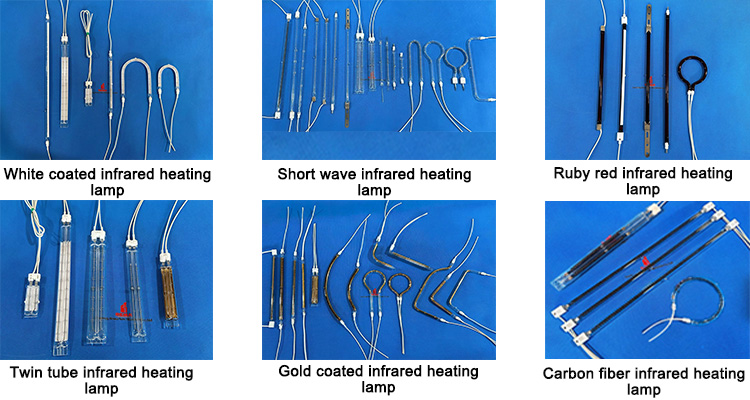

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.
Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
INFRARED LAMP ADVANTAGES
Infrared halogen heating lamp is a small and efficient energy source that uses the light emitted by halogen lamp as heat. Its main features include:
1. Fast heating speed: short start-up time, can reach rated power within 2 seconds, and heat up quickly.
2. High thermal efficiency: most of the light emitted is invisible infrared, which can quickly heat the surface of objects and has high thermal conversion efficiency.
3. Long life: long service life, generally up to 5000 hours.
4. Energy saving and environmental protection: can accurately control the radiation of energy, does not consume oxygen, and has higher thermal efficiency than other long-wave infrared rays, energy saving and environmental protection.
5. Easy to control: the heating power and temperature can be controlled by adjusting the voltage or current.
6. Wide application: suitable for industrial heating, drying, baking, surface melting and other fields.
MAINTENANCE AND CARE
Regular cleaning: During use, dust, oil and other impurities may accumulate on the surface of quartz heating lamp, affecting its heating effect and service life. Therefore, it is necessary to clean the quartz heating lamp regularly, and you can use a clean soft cloth or paper towel to gently wipe the surface.
Check the circuit: Regularly check whether the connection circuit of the quartz heating lamp is normal, whether there is looseness, short circuit, etc., to ensure its normal operation.
Avoid collision: Quartz glass is relatively fragile. Avoid collision or falling during installation and use to avoid damage to the quartz heating lamp.
