Near Quartz Infrared Heating IR Lamp For Lacquers Drying
quartz infrared Lamp has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：480V
Input Wattage：6000W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information

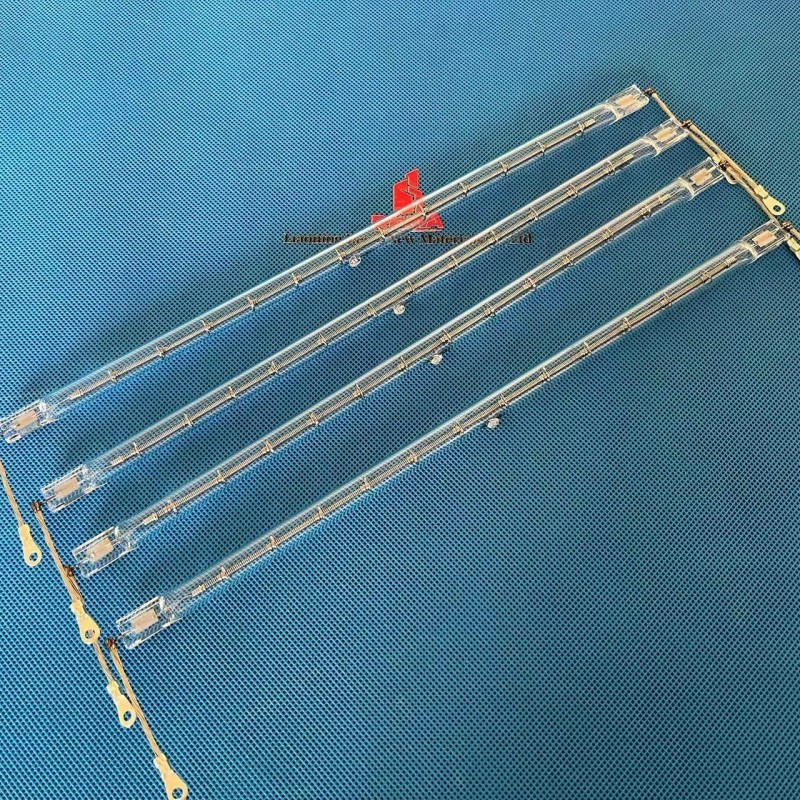

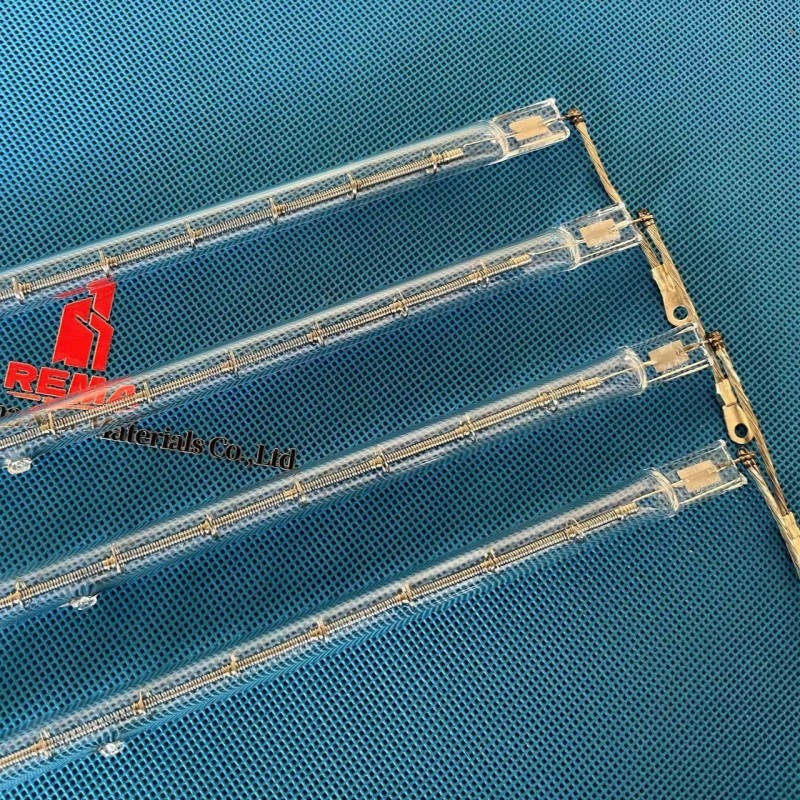

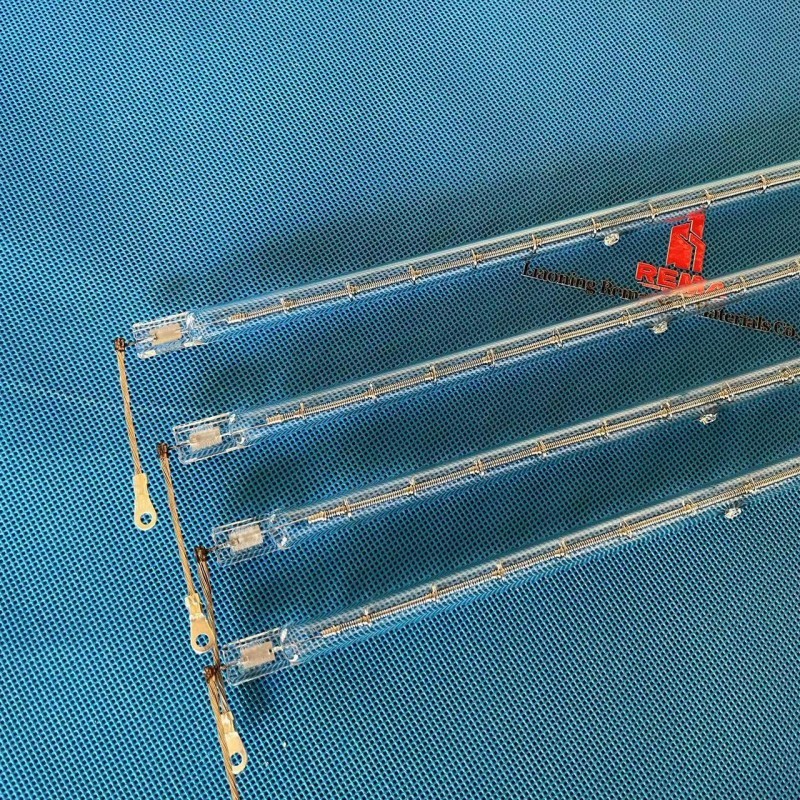

REMA 480V 6000W Halogen Lacquers drying Infrared Lamp Emitters
Name： | Near Infrared Heating Lamp | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1-2um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Customized Service
No suitable product for you? Welcome to contact us .REMA Design an quartz infrared Lamp for the unique you ！

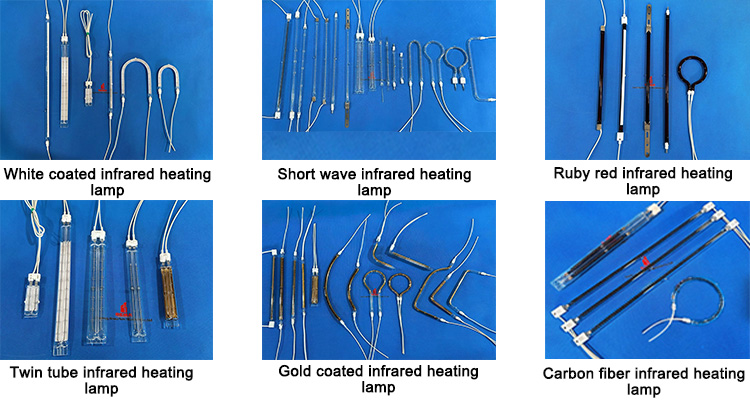

With thousands of specification IR lamps,infrared short wave lamp (SW), infrared medium wave lamp (MW),
Infrared fast medium wave lamp (Fast MW) and infrared special lamp, more than 30 years processing experience,
Skilled and experienced technical team, Make our products more excellent , Welcome to customize it according to your requirements !

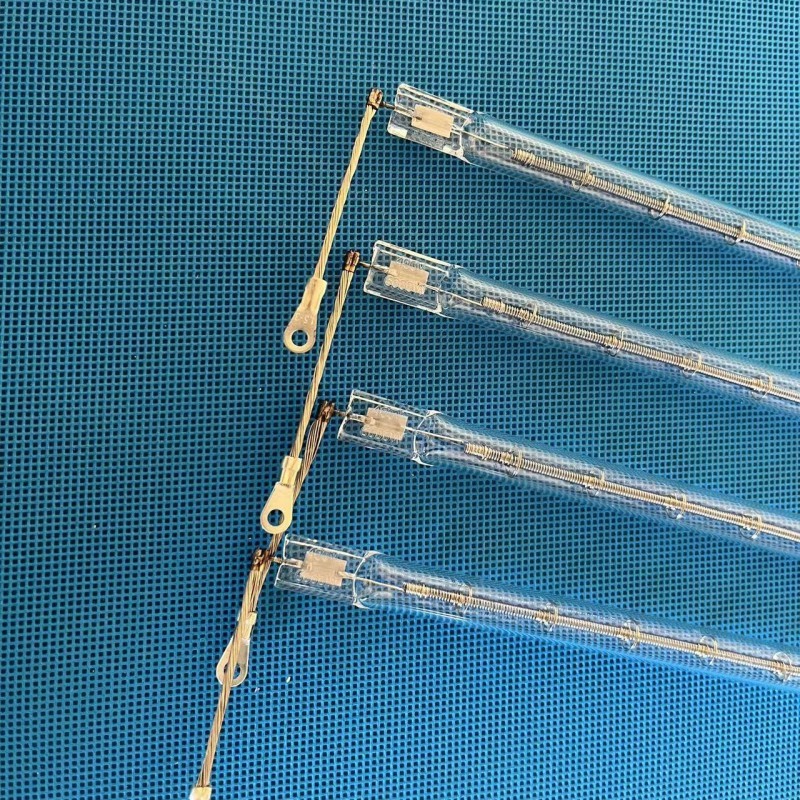

Lamp Base
Reflective coating of the lamp

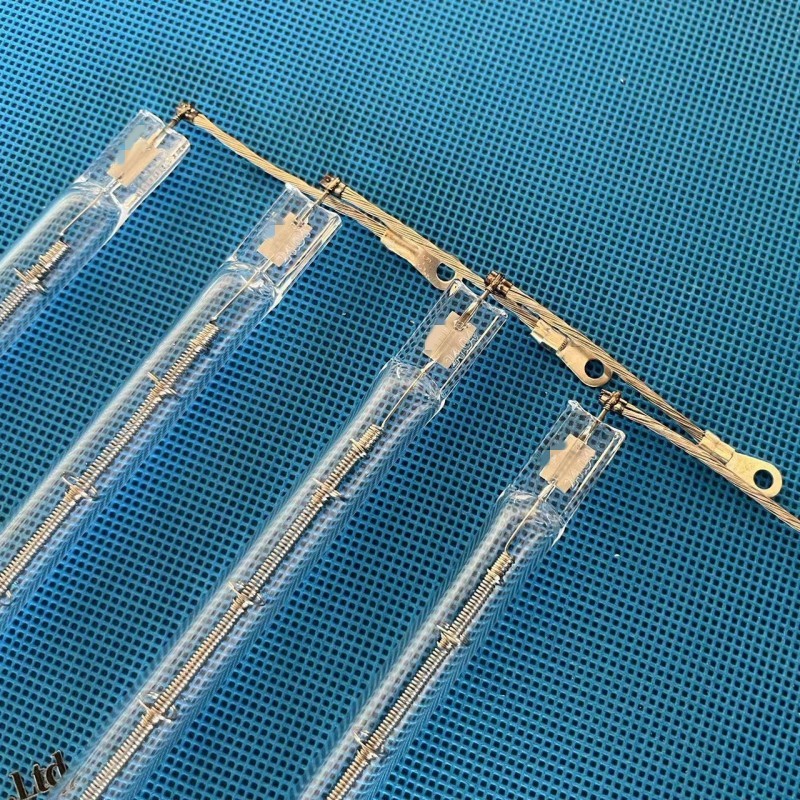

Terminal
According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.
Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
According to our experience, the characteristics of the irradiated objects (heating /drying/ physiotherapy/ disinfection) are different,
and the spectrum energy absorption caused by infrared radiation are also different.
When selecting infrared radiation products ,we recommend that customers pay special attention to the following data in order to select suitable products:
Metal---1~2 μm (Short wave ) High speed printing --- 1~2 um (Short wave )
Resin---2~4 μm (Middle wave) High-grade matte paint drying room---3~50 μm (Long wave)
Glass---2-4 μm (Middle wave) Water system dying---2-4 ym (Middle wave) Ceramic---3-5 μm (Long wave)
High speed printing --- 1~2 ym (Short wave ) High-grade matte paint drying room---3~50 μm (Long wave)
Physical rehabilitative treatment (lmported bulb)---1.35um (standing A）
---2.2um(standing B ).
Maintenance and care
– Regular cleaning: During use, dust, oil and other impurities may accumulate on the surface of quartz heating lamp, affecting its heating effect and service life. Therefore, it is necessary to clean the quartz heating lamp regularly, and you can use a clean soft cloth or paper towel to gently wipe the surface.
– Check the circuit: Regularly check whether the connection circuit of the quartz heating lamp is normal, whether there is looseness, short circuit, etc., to ensure its normal operation.
– Avoid collision: Quartz glass is relatively fragile. Avoid collision or falling during installation and use to avoid damage to the quartz heating lamp.
