Twin Tube Gold Golden Short Wave Quartz Tube Heater IR Lamps
Gold Golden Short Wave Lamps has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：230V
Input Wattage：1100W
Working Lifetime：5000+ Hours
IR Distance: 1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information

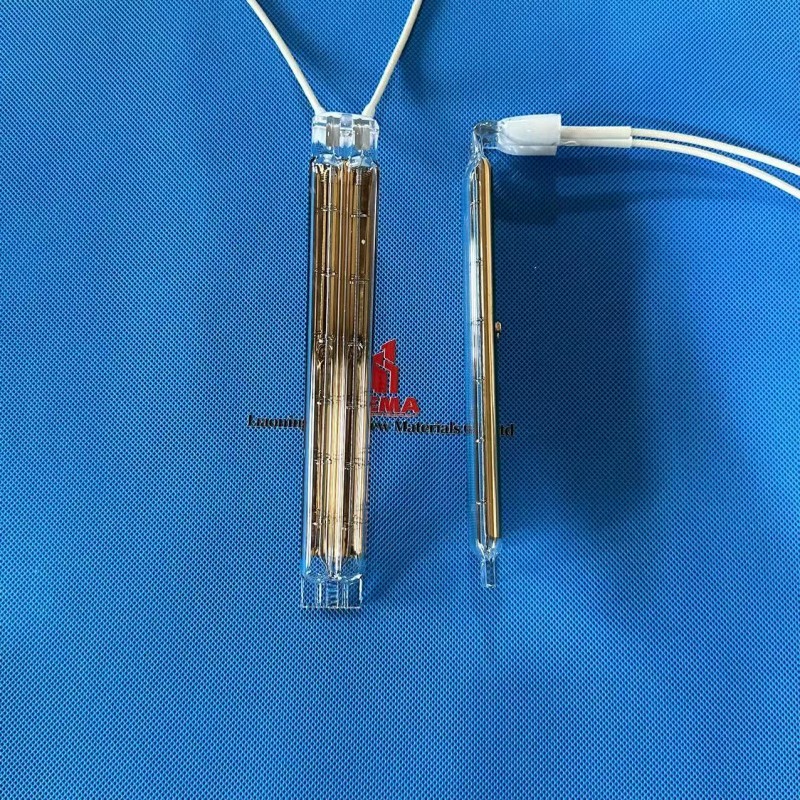

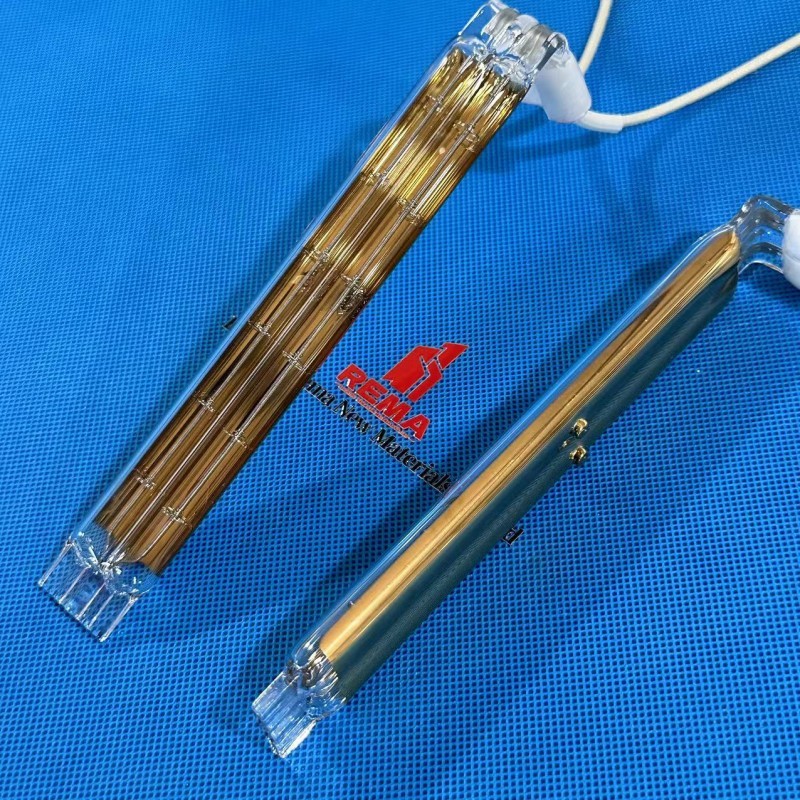

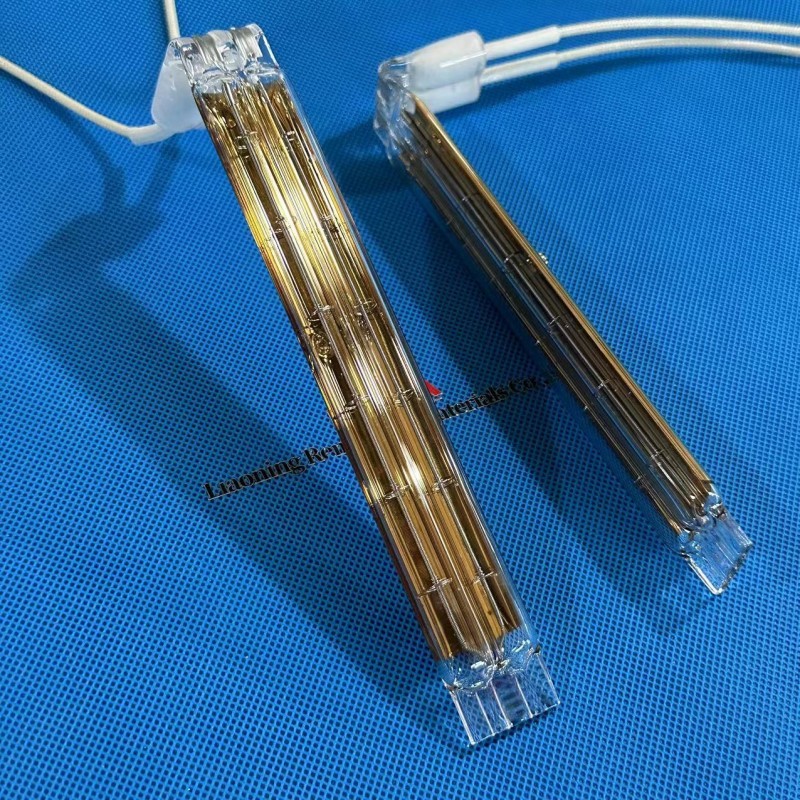

REMA Twin Tube Gold Golden Short Wave Quartz Tube HeaterL Type IR Lamps For Vacuum Coating On Glass
30-years experience professional custom manufacturer
| Name： | Twin Tube Quartz Tube Heater | Voltage ： | 24-600V |
| Wattage | 100-5000W | Heated length ： | 100-1500mm |
| Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
| Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
| Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
OEM/ODM
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | ***** | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ white/ clear | 6.Base： | SK15、R7s、..... |
Or you can directly send us the photos and drawings.
CLICK TO CONTACT US !

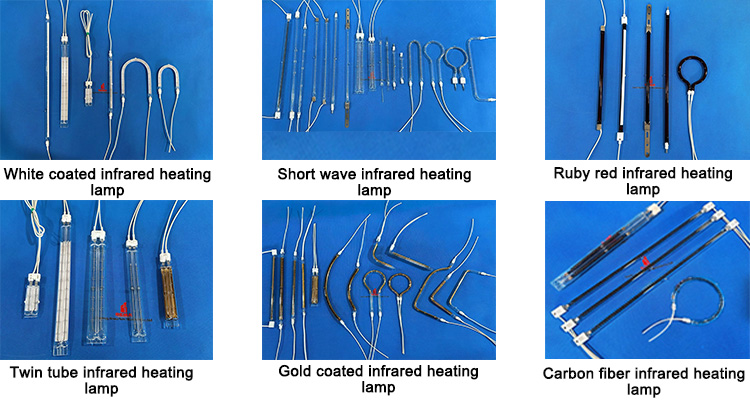

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.
Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
Omnidirectional lighting type:
The standard models are all horizontal lighting specification.
Lamps may fail or have extremely reduced life if the lamp is turned on when inclined at an angle exceeding the permitted angle (horizontal ±4°), Consult REMA if you require lighting at angles
exceeding the permitted angle. The addition of dimples to the seal body during manufacture allows the lamp to emit light at any angle when attached to fixed supports.
