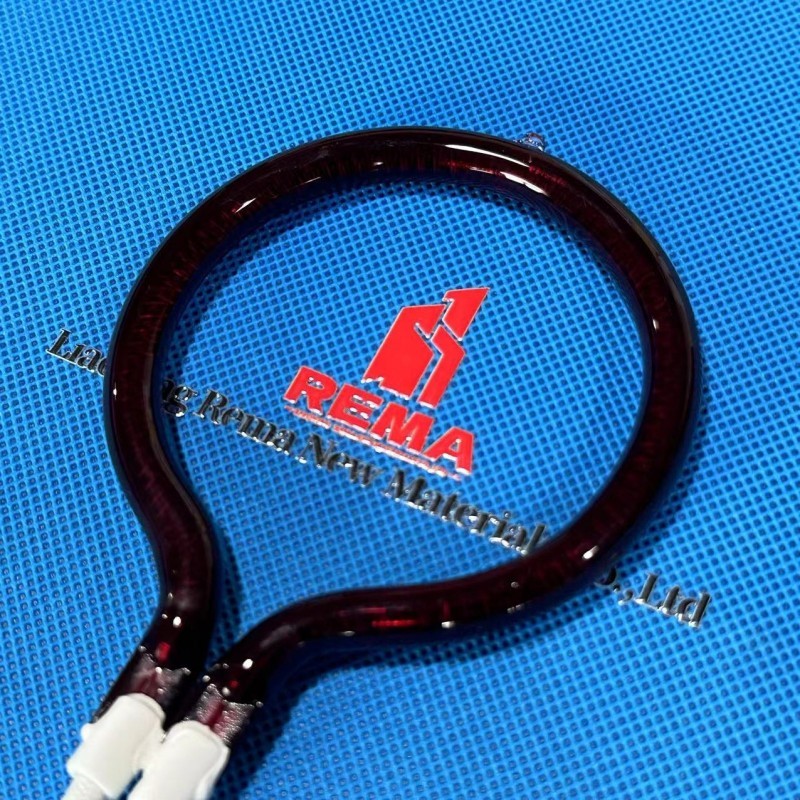

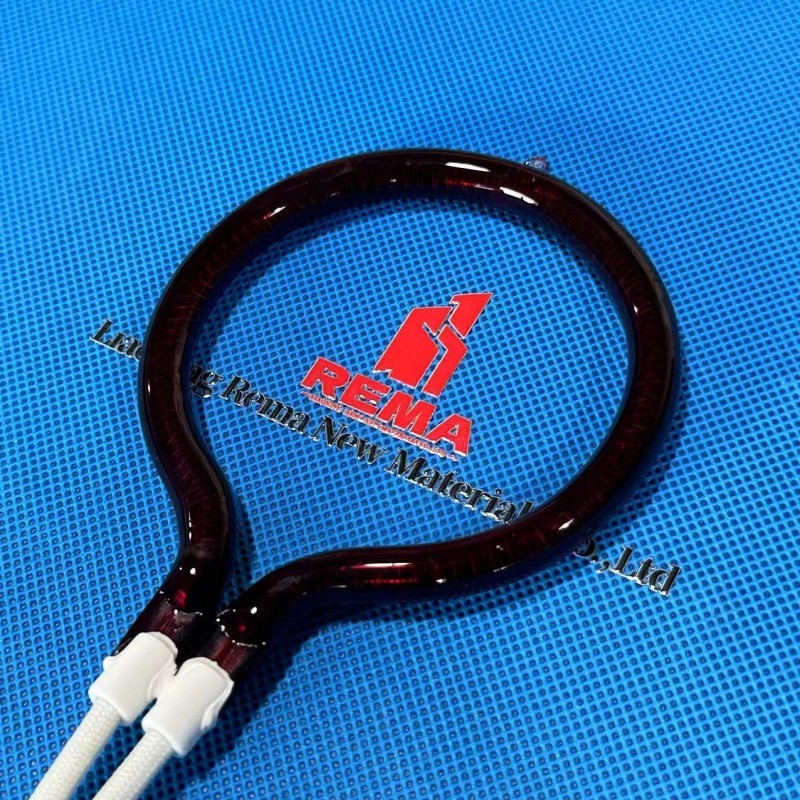

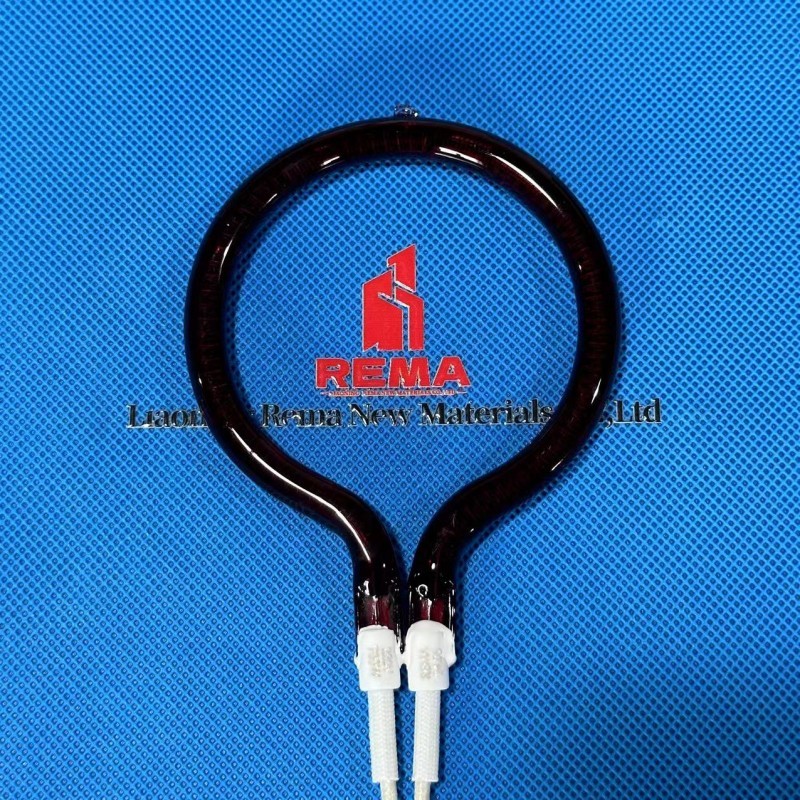

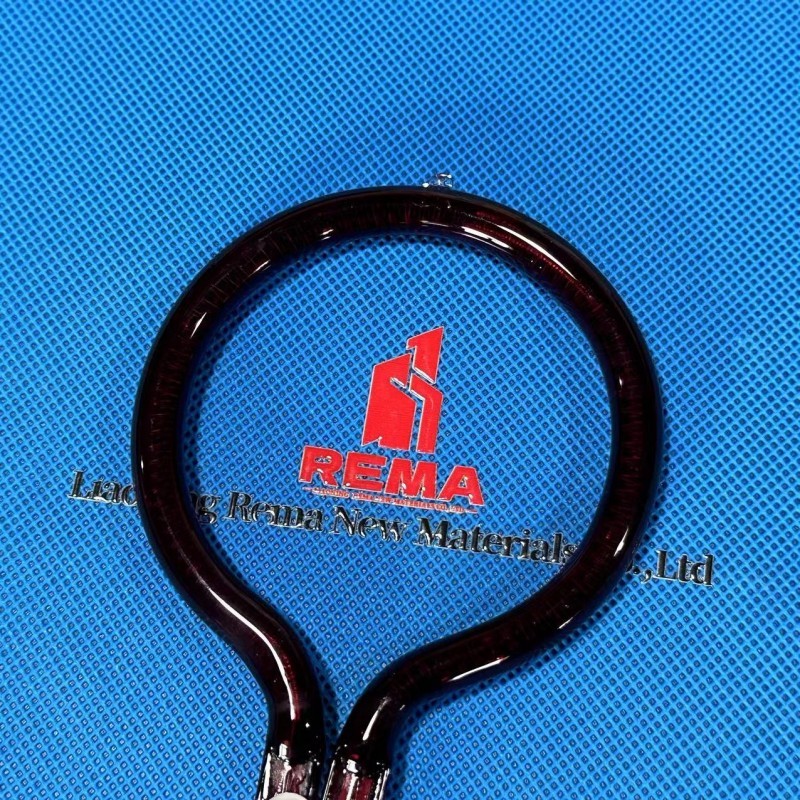

Ruby Octagonal Wire Infrared Quartz Heating Tube For Oven Parts
The biggest difference between Infrared quartz tube and the standard short-wave quartz lamp is that it uses ruby quartz tubes, which blocks the output of UV and a large amount of visible light, eliminating glare at the application site and improving production safety.
Input Voltage：220V
Input Wattage：700W
Working Lifetime：5000+ Hours
IR Distance: 0.9-1.8μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 700w Halogen IR Heater Lamp Quartz For Vacuum Forming Machine
The top quality of filament can let the lamp keep long time life.
High efficiency.
Economical to run.
Have a fast response switching on and off timeEffectively transmit and focus heat on materials
High purity99.99% qurtz glass tube
Is totally transparent at lR radiation.
quartz is used in halogen bulbs because it can withstand high temperatures. Quartz also ensures against heat shock.
Name： | Infrared quartz heating tube | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1400mm |
Response time： | 1-2 s | Wavelength： | 0.9-1.8 um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Infrared quartz tube are used in various industrial applications：
Scutcheon.-Drying of printing, coating and baking varnish
Conveyor belt.-Conveyor belt of coal, ironstone and so on
Wallpaper industry.-Printing, coating and embossing on wallpaper
Ore.-Drying of non-ferrous metal ore and nonmetallic ore
Resinic crystal.-Drying of resinic crystal
Paper processing.-Drying of papermaking、surface coating and printing
Water-based material.
Semiconductor industry

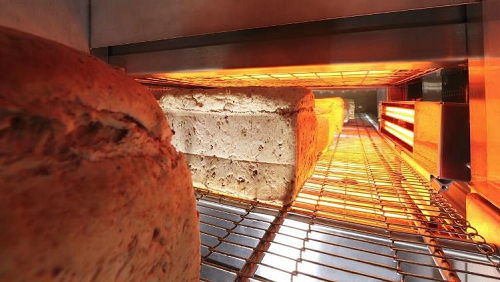

In the bakery sector:
REMA Carbon infrared is already allowing simple, quick and safe disinfection of baking trays,
conveyors and other bakery equipment, killing germs and spores to eliminate mildew and fungal growth. Infrared is
much more practical than ultra-violet disinfection, which is effective mainly on smooth surfaces and requires a high UV
dose to destroy mould and fungi. Carbon infrared emitters from REMA are also eminently controllable, with a response
time of 1-2 seconds, so that there is no danger of overheating baked items in the event of unplanned conveyor
stoppage. They are also extremely compact, allowing easy retro-fitting into existing machinery and emitter fields can be
adjusted to match the width of baking trays.
OEM/ODM
If the parameter is not suitable for you. Welcome to contact us .REMA Design an infrared lamp for the unique you ！
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | **mm | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ White/ Clear/Black | 6.Base： | SK15、R7s、..... |
| Or you can directly send us the photos and drawings. | |||
Custom Lamp Base LOGO
REMA uses laser printing LOGO. Make the LOGO more clear , durable and not easy to disappear by friction.
AFTER-SALE GUARANTEE
According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.
Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
