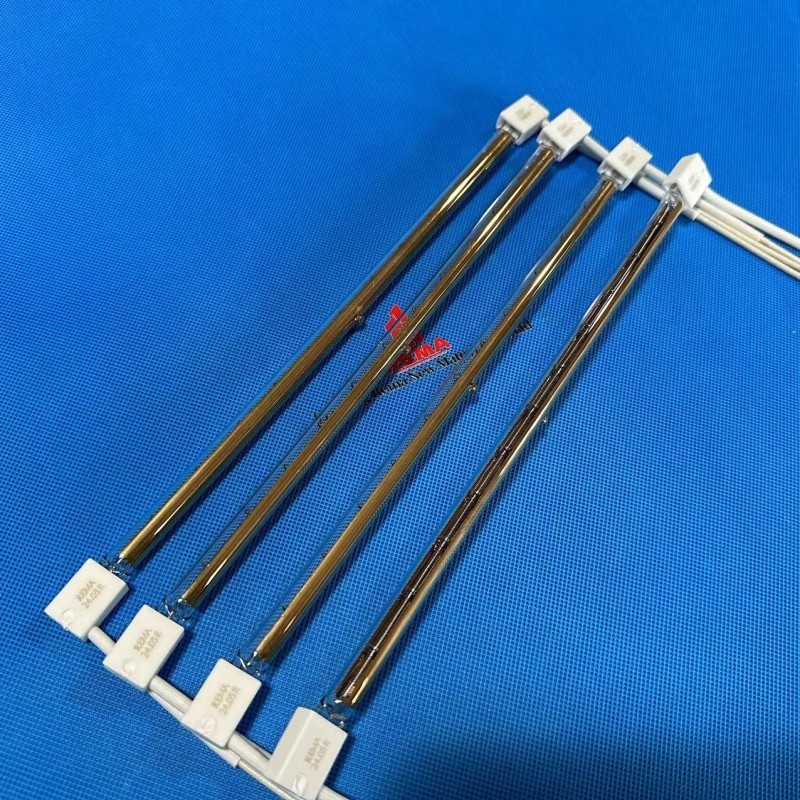

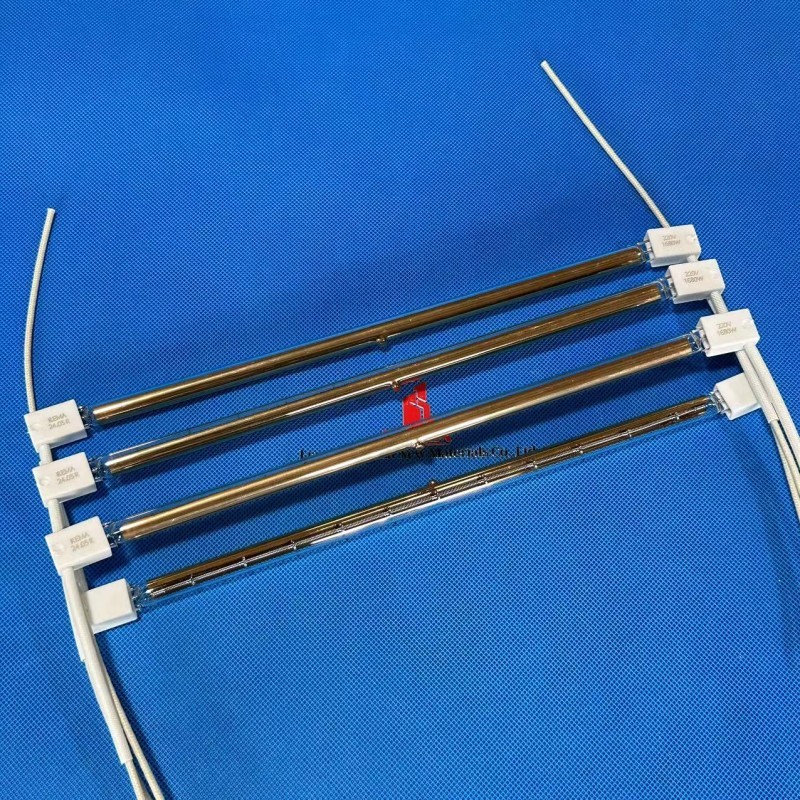

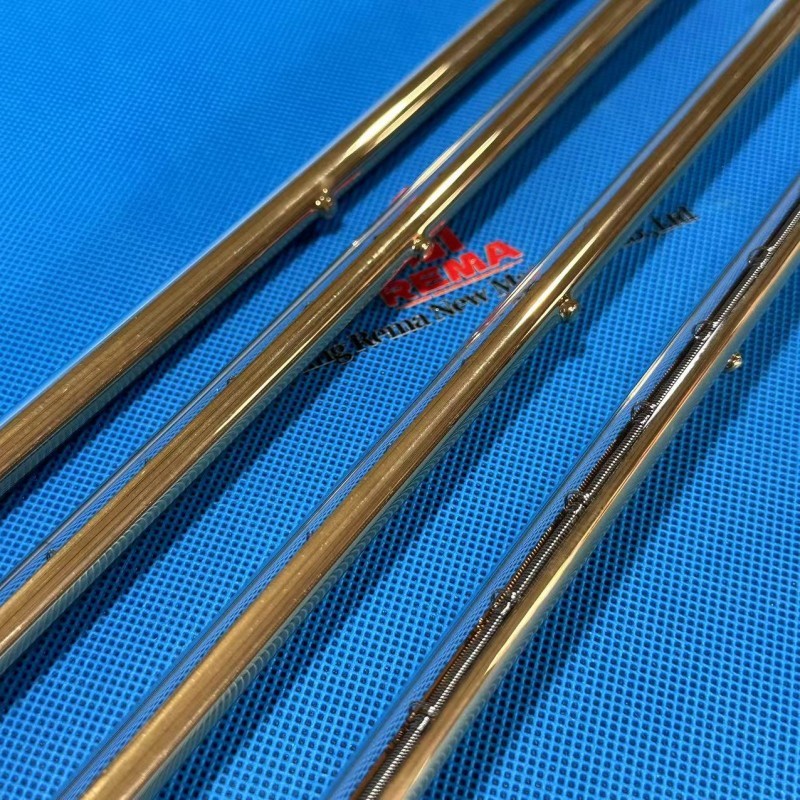

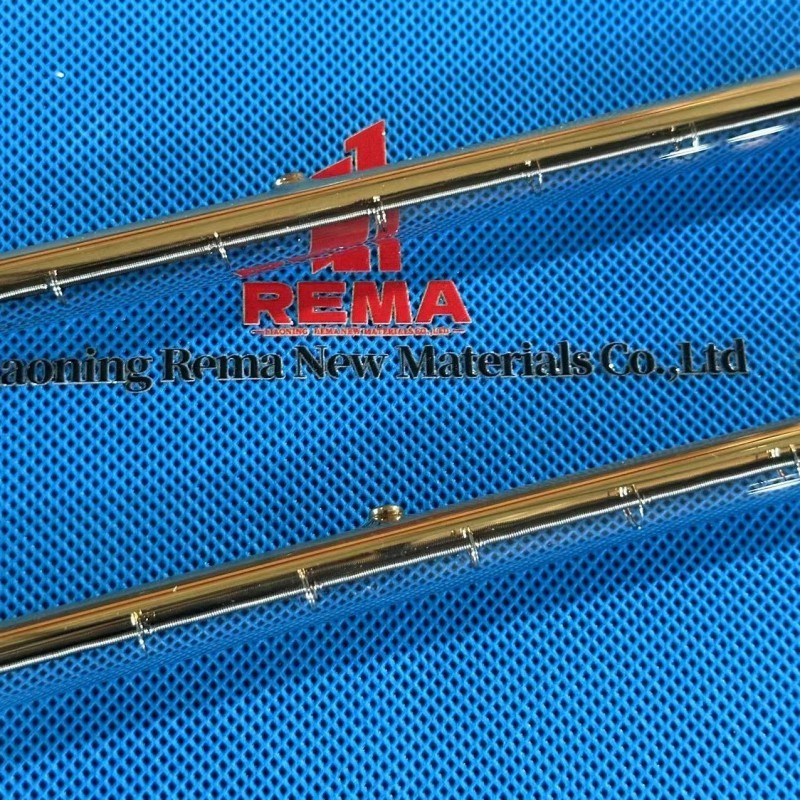

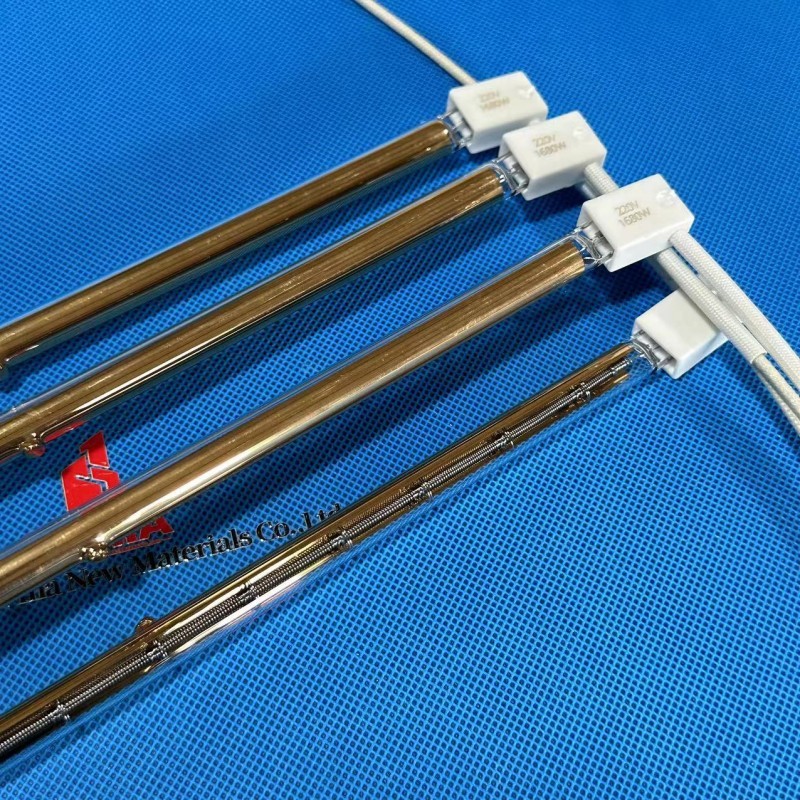

SK-15 Gold Infrared Heating Lamp For Printed Electronics
Infrared Heating Lamp has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：220V
Input Wattage：1250W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 1000w Shortwave Gold Coated Infrared Heating Lamp Halogen Quartz Heater
The top quality of filament can let the lamp keep long time life
1.High efficiency.
2.Economical to run.
3.Have a fast response switching on and off timeEffectively transmit and focus heat on materials
High purity99.99% qurtz glass tube
1.Is totally transparent at lR radiation.
2.quartz is used in halogen bulbs because it can withstand high temperatures. Quartz alsoensures against heat shock.
Name： | Short wave half white IR lamp | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Short wave quartz infrared heaters are used in various industrial applications：
1.Paint drying
2.Pre-heating of PET perform
3.Silicon wafer manufacturing process in Semiconductor
4.Drying process in paper mill
5.Plastics thermoforming
6.Fusing printing ink
7.And various kind of drying processes
8.Powder coating
9.Lacquers drying
Metal drying equipment：
REMA Infrared Emitters the quality and production speed of metal coating Applications: cutting & curing for metal powder Features:
Curing temperature about 200℃
Curing speed increased to 150%
Higher curing speed&saving space
The results shows that by using REMA infrared heating technology, the curing of the product increases the curing rate of more than 50%,
This painting production line composed of two parts.before spraying drying parts and after spraying drying parts at 200℃.
These two parts both use medium-wave infrared module, which can control the temperature in different regions. In order to coat different colors,
infrared emitters can be adjusted. In general, the dark needs less energy than the light-colored spray paint.
OEM/ODM
If the parameter is not suitable for you. Welcome to contact us .REMA Design an infrared lamp for the unique you ！
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | **mm | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ White/ Clear/Black | 6.Base： | SK15、R7s、..... |
| Or you can directly send us the photos and drawings. | |||
Custom Lamp Base LOGO
REMA uses laser printing LOGO. Make the LOGO more clear , durable and not easy to disappear by friction.
AFTER-SALE GUARANTEE
Before we proceed with the shipment, we will send you a customized product video and packaging for your confirmation.
After shipment, we will update the logistics information and tracking number in time
Professional customer service.
Complete package.
Damaged replacement & After-sales service.
We promise that we can change or refund the products if there is any quality problem.

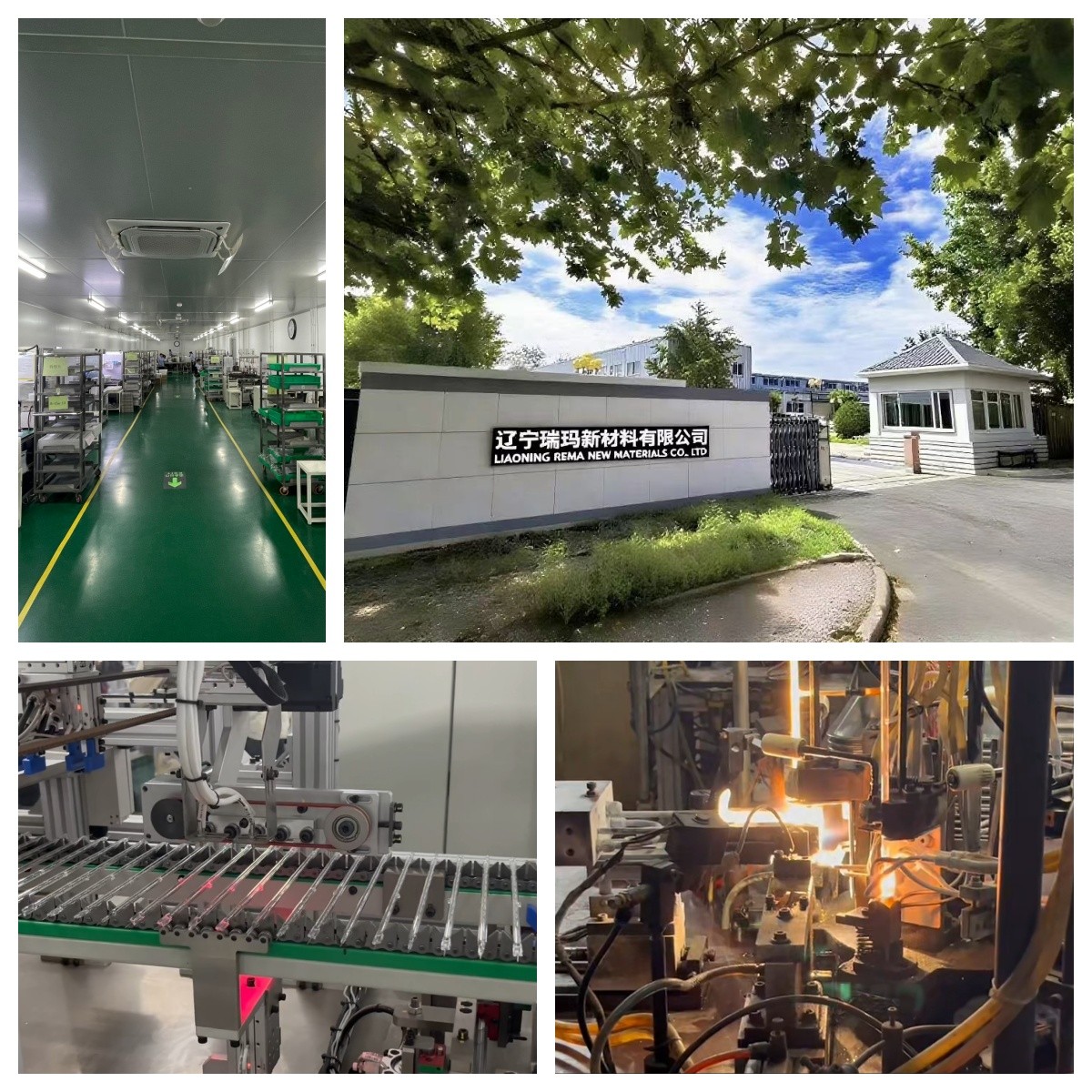

ABOUT US
REMA located in Huludao city of China , In 30 years, 10,950 days and 262800 hours, REMA have grown from a small factory to a strength factory of 2000 square meters. From less than 5 people at the beginning to more than 50 staffs to work together.
REMA has been committed to developing and providing professional products for global users of infrared heating lamps and quartz glasses, exported to more than 30 countries, some of lamps can instead of Heraeus, Toshiba brand products to used for Blowing machine, 3D printing, glass cutting, vacuum coating, semiconductor, photovoltaic and other fields.
