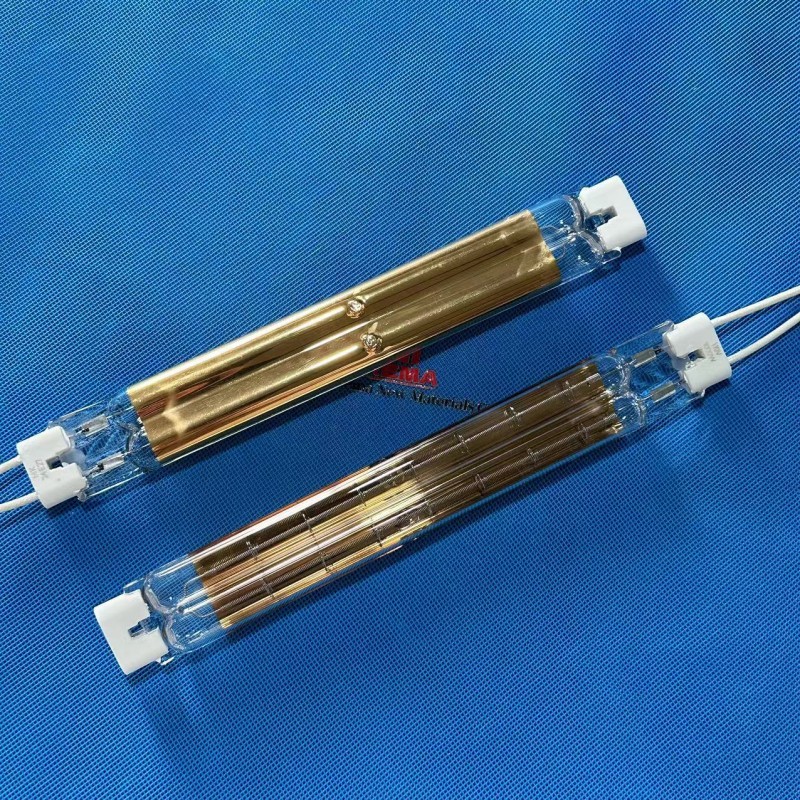

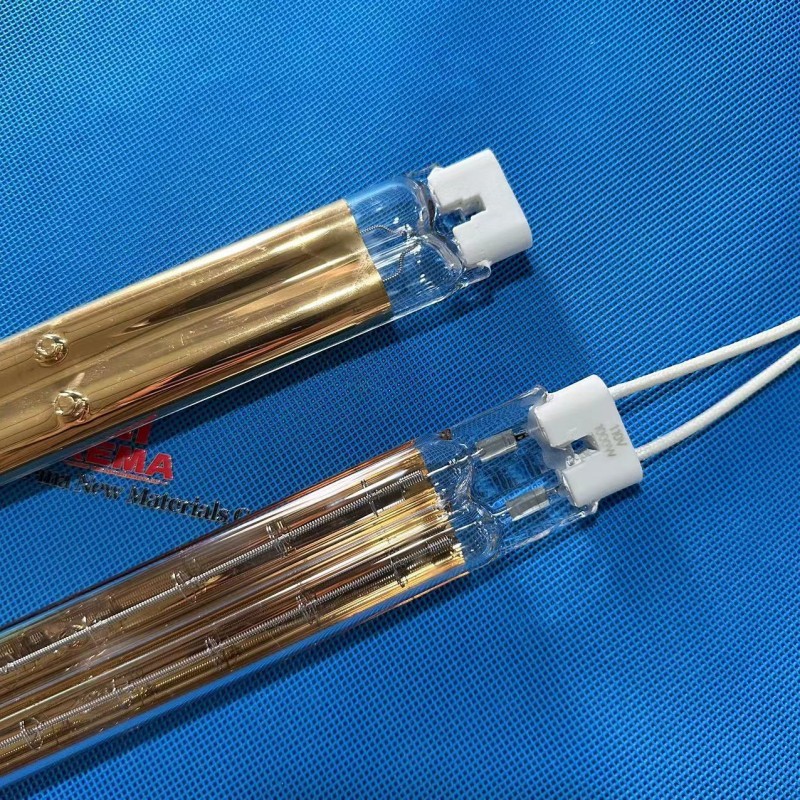

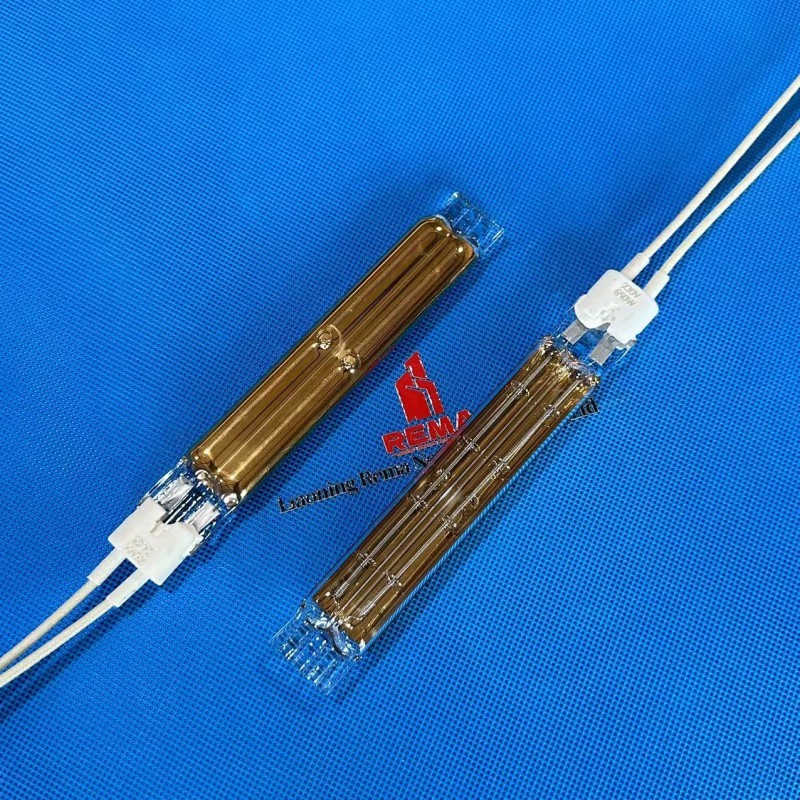

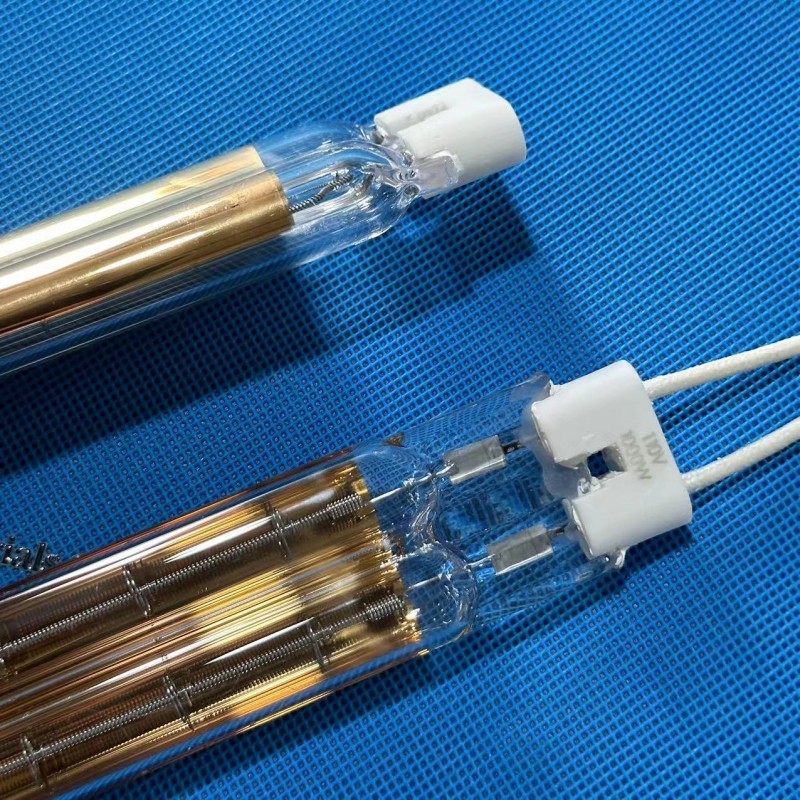

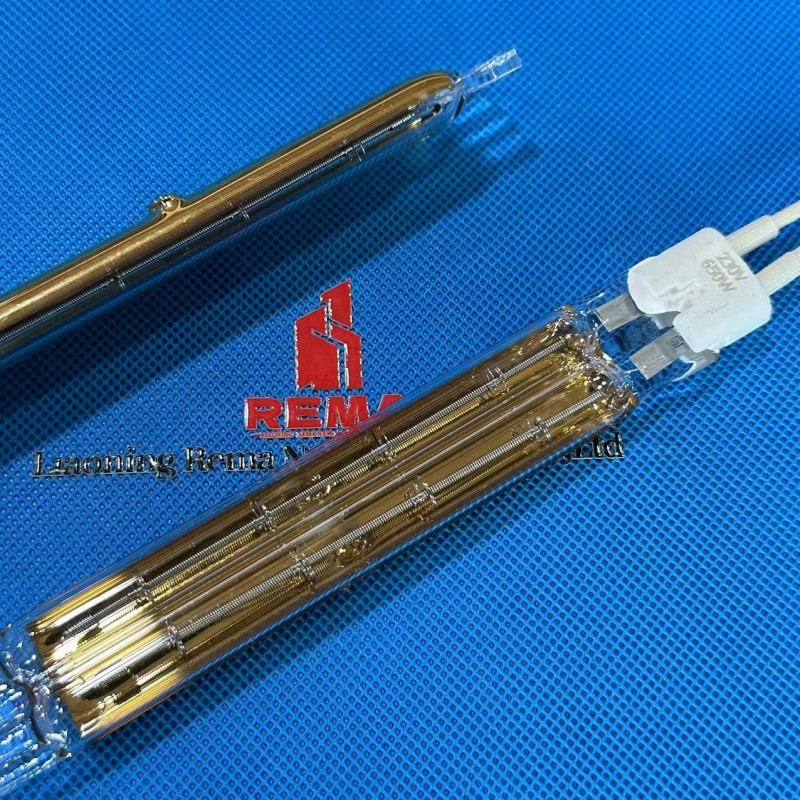

IR Twin-tube Quartz IR With Gold Reflector For Laminator
quartz IR heater has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：220V
Input Wattage：1250W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 1000w R7s Infrared Lamp Quartz For Vacuum Forming Machines
30-years experience professional custom manufacturer

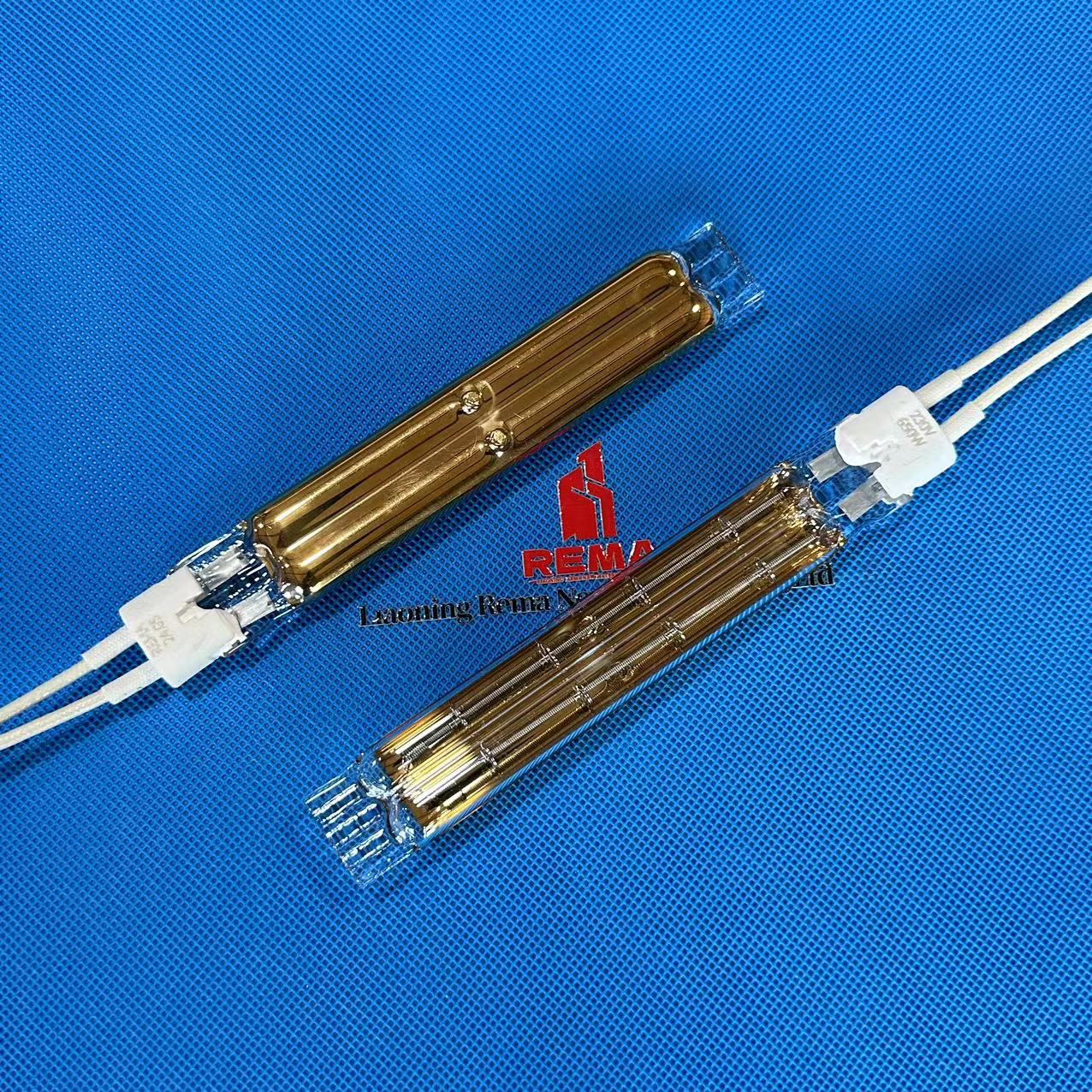

| Name： | twin-tube quartz heater | Voltage ： | 24-600V |
| Wattage | 100-5000W | Heated length ： | 100-3000mm |
| Response time： | 1-2 s | Wavelength： | 1-2 um |
| Tube diameter： | 23*11、33*16mm | Filament temperature： | 1100-2900℃ |
| Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
REMA infrared equipment has a wide range of applications in the plastics industry, such as plastic welding, blown film. in addition.through the different types of infrared emitters the flexibility to mix and design of complex objects can be achieved through heating.
Unparalleled advantages are as follow:
Use infrared heating technology, customers can reduce electricity power
REMA infrared emitters heat the plastic directly and no media is6needed to transfer energy and there's no consumption in the air.
Since the plastic can absorb infrared radiation well, it can quickly heatup and melt. Compared to convection oven, infrared baking plastic appears to be much more even.
Compared with the hot-air blast stove, the lR heating plastic achieves better quality and decreases potential dangers of gas leaking.
Infrared heating system can also be easily integrated into existingproduction drying.
OEM/ODM
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | ***** | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ white/ clear | 6.Base： | SK15、R7s、..... |
Or you can directly send us the photos and drawings.
CLICK TO CONTACT US !

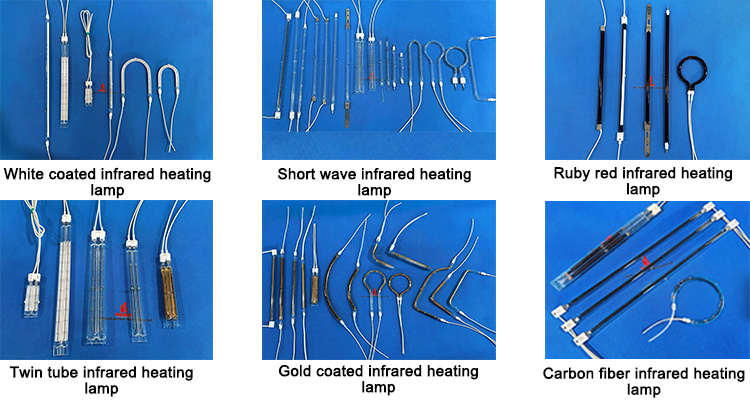

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.

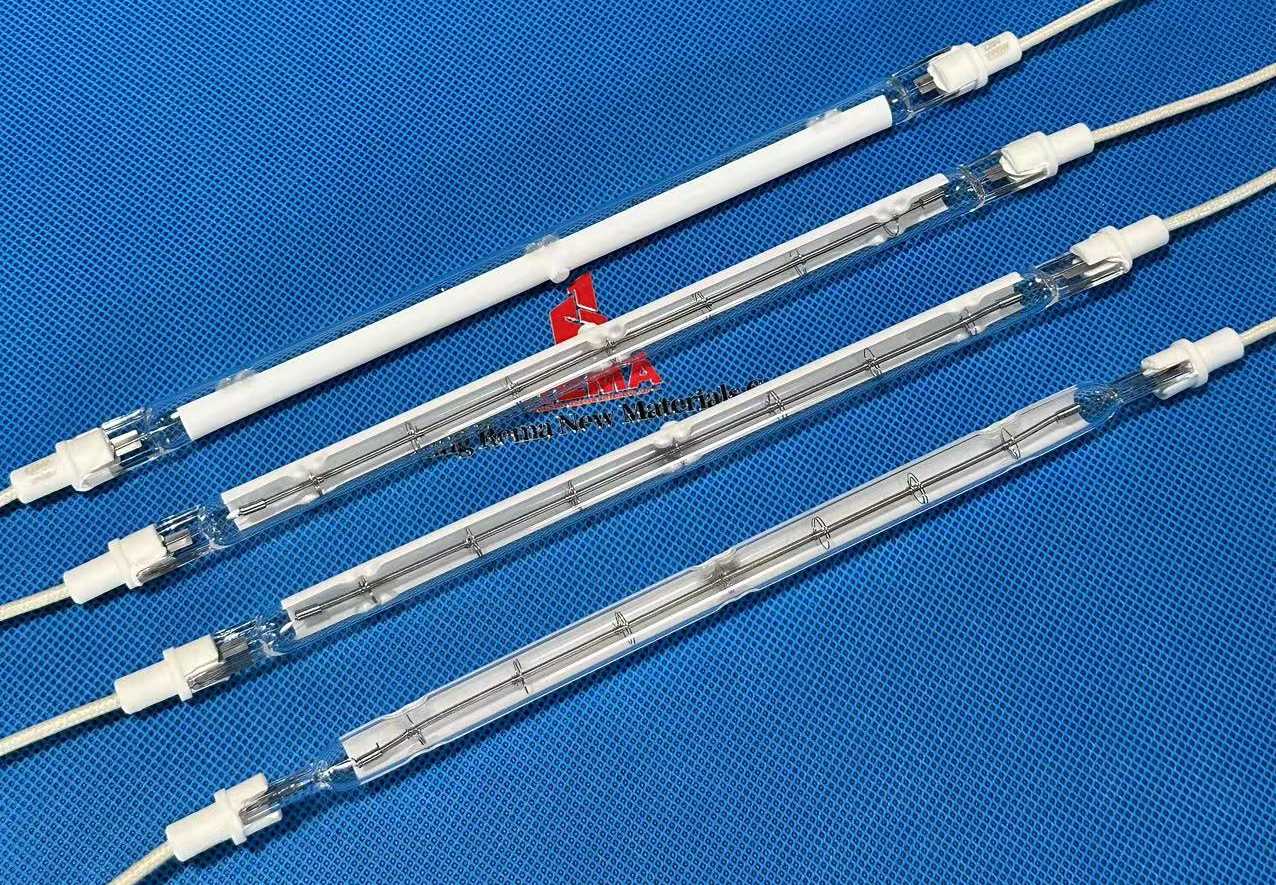

Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
According to our experience, the characteristics of the irradiated objects (heating /drying/ physiotherapy/ disinfection) are different,
and the spectrum energy absorption caused by infrared radiation are also different.
When selecting infrared radiation products ,we recommend that customers pay special attention to the following data in order to select suitable products:
Metal---1~2 μm (Short wave ) High speed printing --- 1~2 um (Short wave )
Resin---2~4 μm (Middle wave) High-grade matte paint drying room---3~50 μm (Long wave)
Glass---2-4 μm (Middle wave) Water system dying---2-4 ym (Middle wave) Ceramic---3-5 μm (Long wave)
High speed printing --- 1~2 ym (Short wave ) High-grade matte paint drying room---3~50 μm (Long wave)
Physical rehabilitative treatment (lmported bulb)---1.35um (standing A）---2.2um(standing B).
