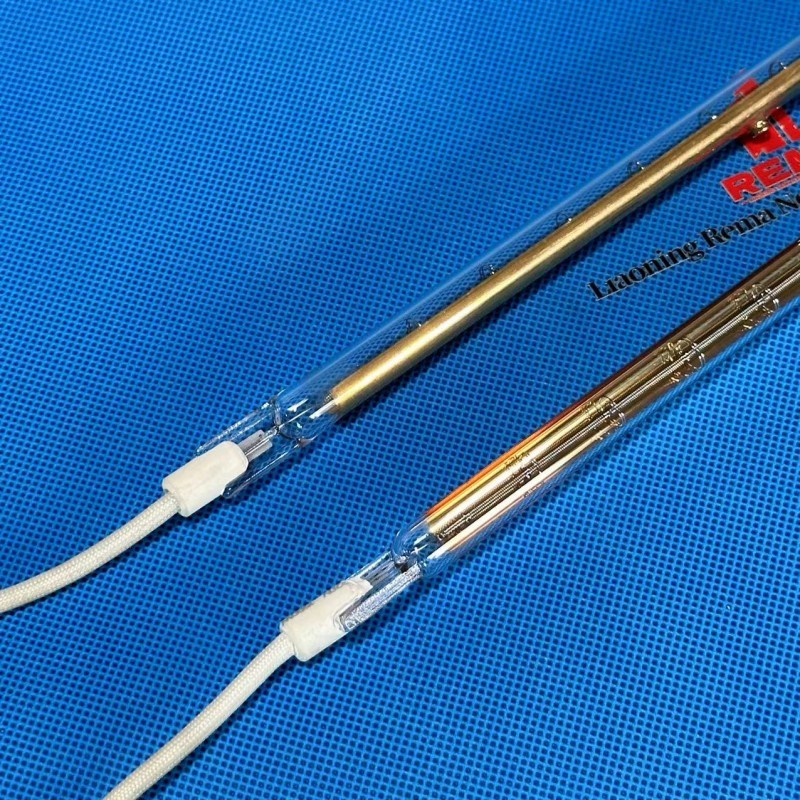

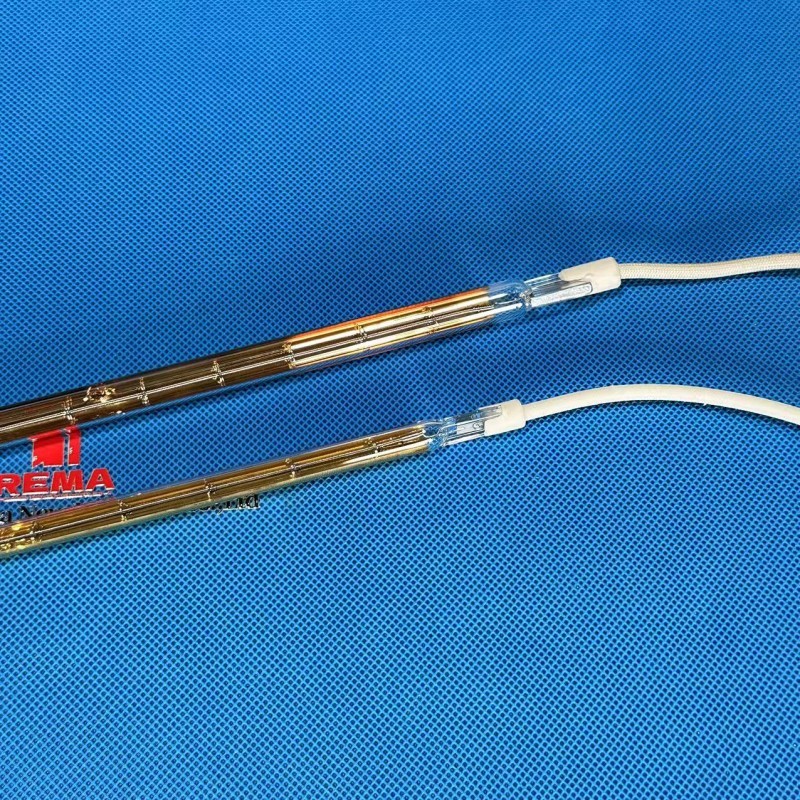

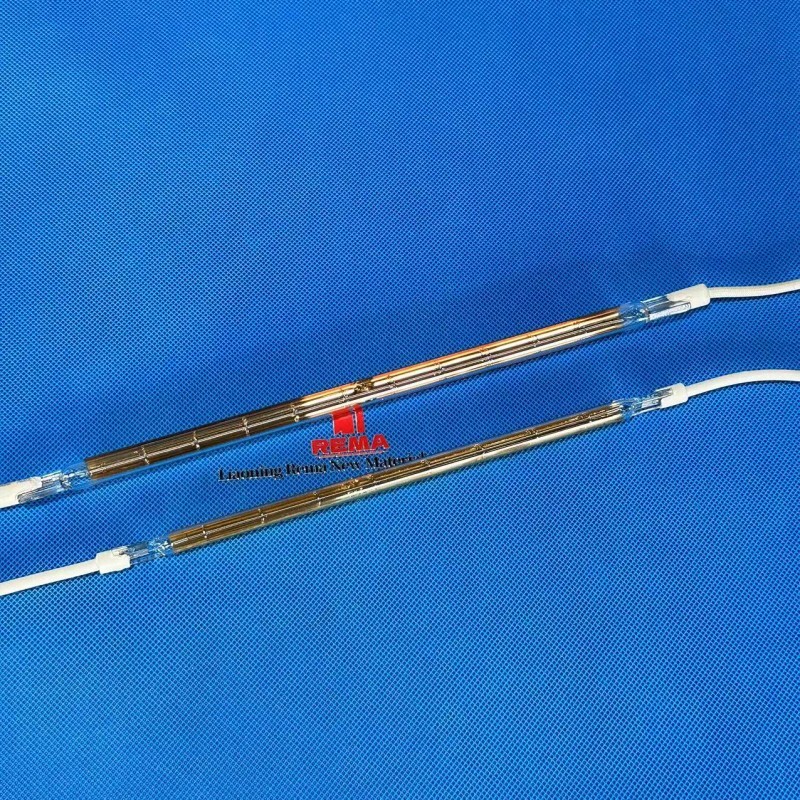

R7s Shortwave Infrared Heating Lamp With Gold Reflector
Shortwave Heating lamp has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：220V
Input Wattage：1500W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 1500w R7s Gold Infrared Lamp With Gold Reflector halogen quartz heater
30-years experience professional custom manufacturer
| Name： | Short wave gold Half Infrared Lamp | Voltage ： | 24-600V |
| Wattage | 100-5000W | Heated length ： | 100-1500mm |
| Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
| Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
| Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Product Details:

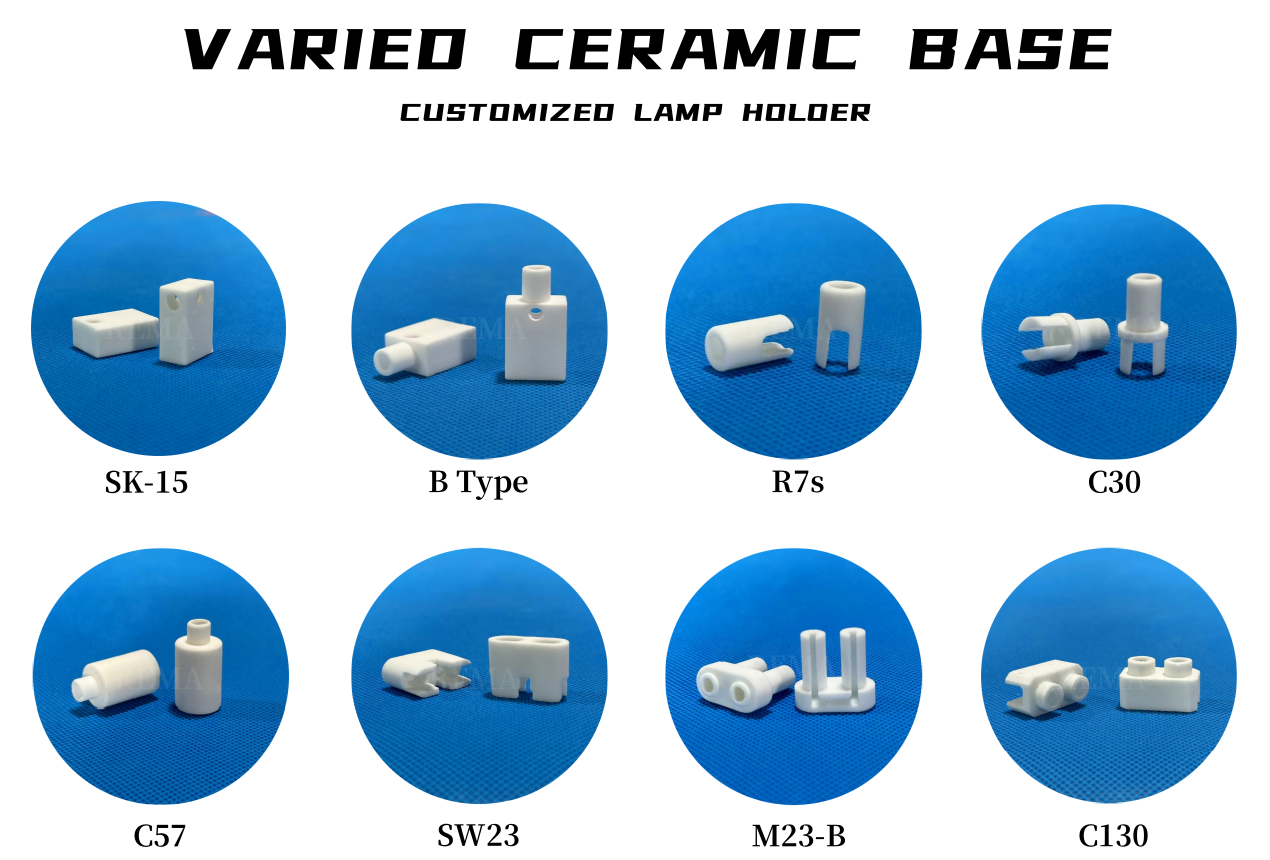

Robust ceramic socket with various specifications to choose.

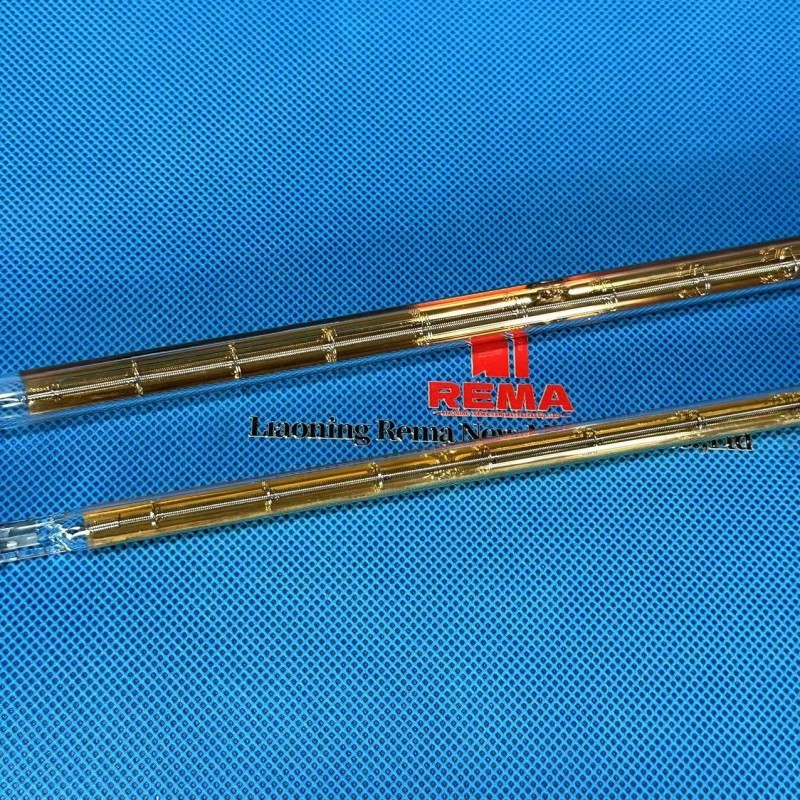

More than 95% reflection efficiency of the gold coating , it is currently the highest reflective efficiency coating lamp.
Can work horizontally, vertically or in motion
ADVANTAGES：
1.High-efficiency energy source.
High-efficiency heat sources that convert and emit over 85% of the input power to infrared. Lamp-based heat irradiation produces high-quality infrared irrespective of the ambient temperature .
2.Non-contact heating.
Heats objects without direct, physical contact.
3.High controllability due to nature of “light”
Light energy can be controlled optically using mirrors to focus and disperse the light, and hence heat, to “direct” the heat to the target. This provides high-level control over the heated area .
4.Clean heat source.
Objects are heated in any environment, whether exposed to the atmosphere or in a vacuum, alleviating concerns about harming the object or the environment.
5.Quick on/off response.
Radiated energy rises and falls almost simultaneously as the switch is turned on/off due to the use of filaments with low heat capacity.
6.Long life and constant energy emission.
Halogen-cycle lamp for long-life design of 5,000 hours.
Furthermore, the lamps maintain almost constant energy emission until the end of the rated life.
7.Heating in vacuum.
Proven track record as a heat source with high reliability in vacuum equipment.
OEM/ODM
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | ***** | 4.Wire length: | 500MM、..... |

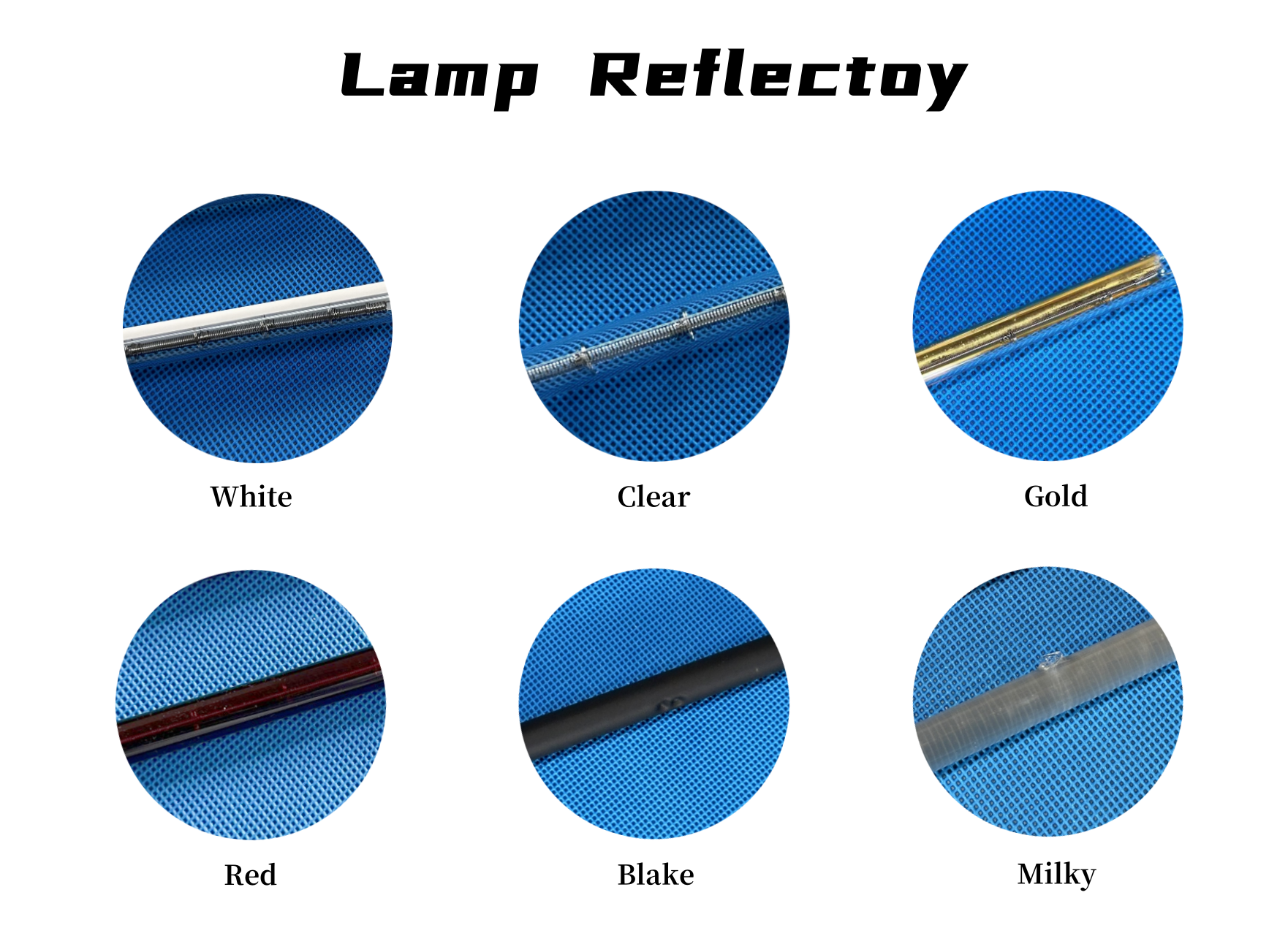

| 5.Coated or not.What color coating？ | Gold/ white/ clear | 6.Base： | SK15、R7s、..... |
Or you can directly send us the photos and drawings.
CLICK TO CONTACT US !

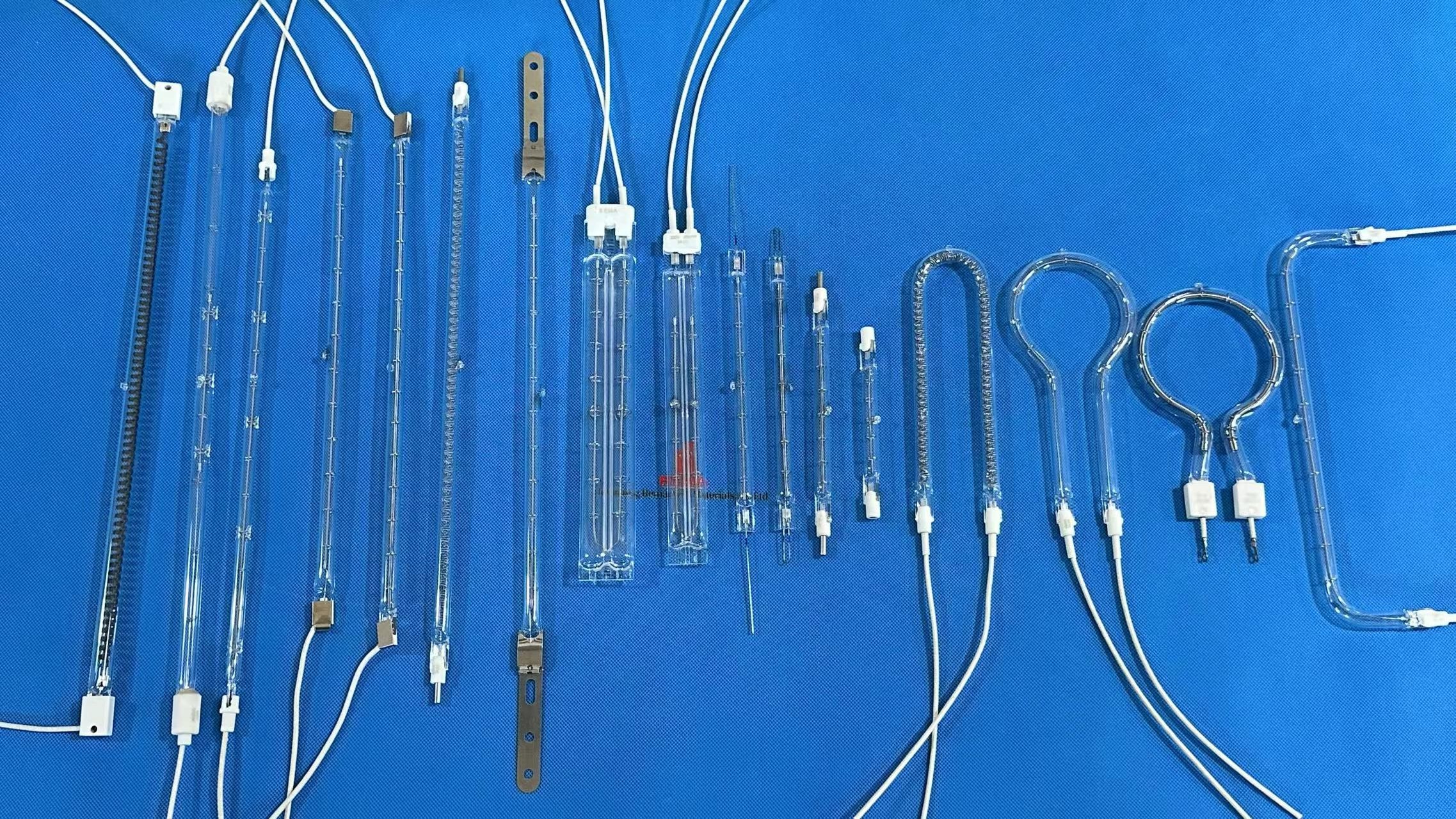

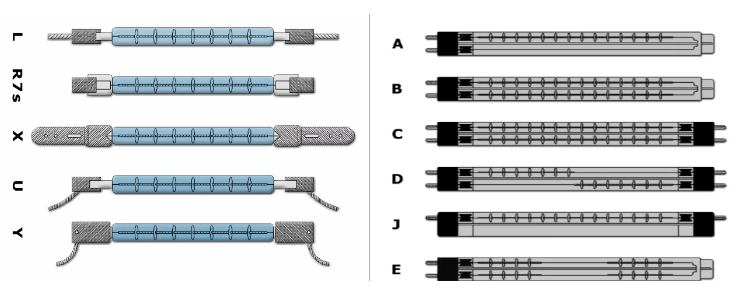

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.

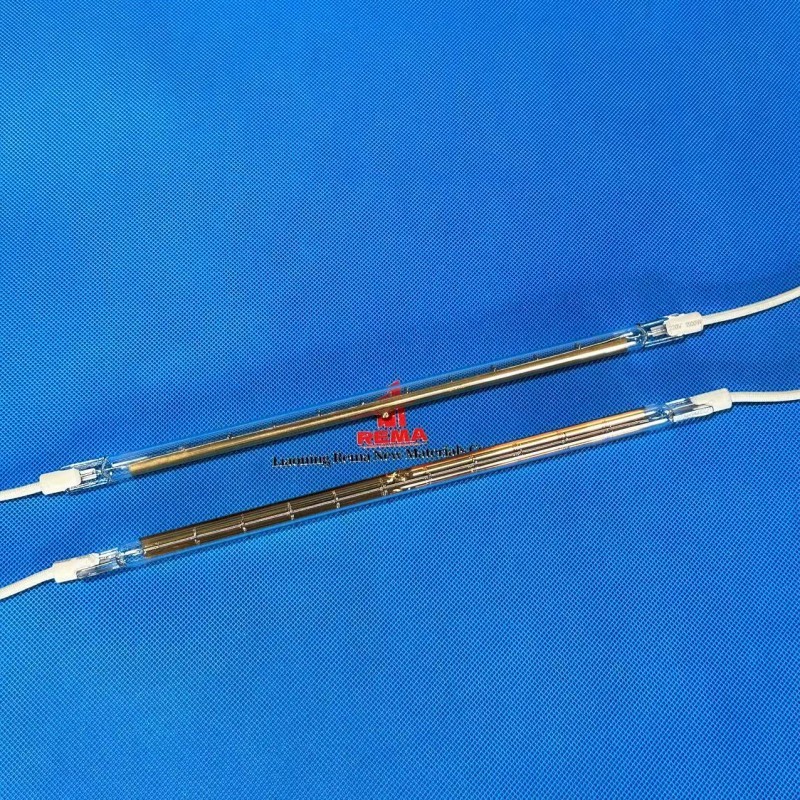

Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
Metal drying equipment：
REMA Infrared Emitters the quality and production speed of metal coating Applications: cutting & curing for metal powder Features:
Curing the metal parts of powder
Curing temperature about 200℃
Curing speed increased to 150%
Higher curing speed&saving space
The results shows that by using REMA infrared heating technology, the curing of the product increases the curing rate of more than 50%,
This painting production line composed of two parts.before spraying drying parts and after spraying drying parts at 200℃.
These two parts both use medium-wave infrared module, which can control the temperature in different regions. In order to coat different colors,
infrared emitters can be adjusted. In general, the dark needs less energy than the light-colored spray paint.
