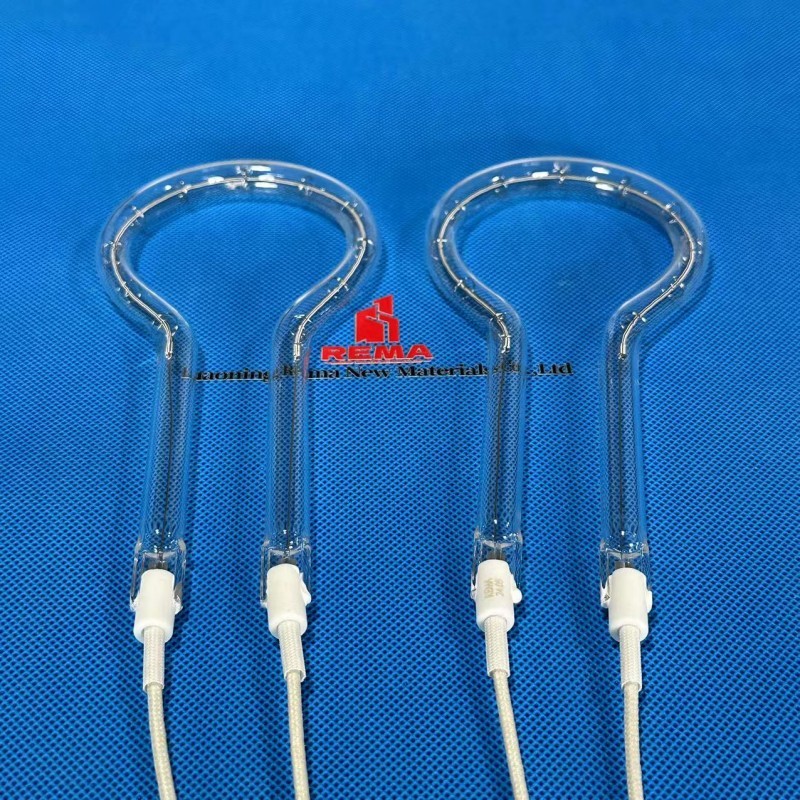

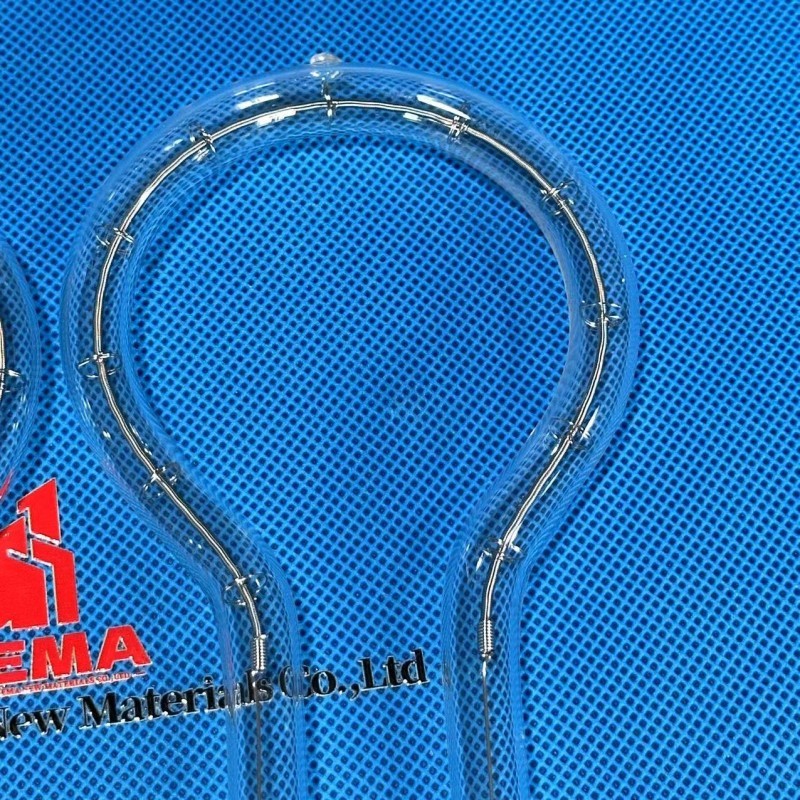

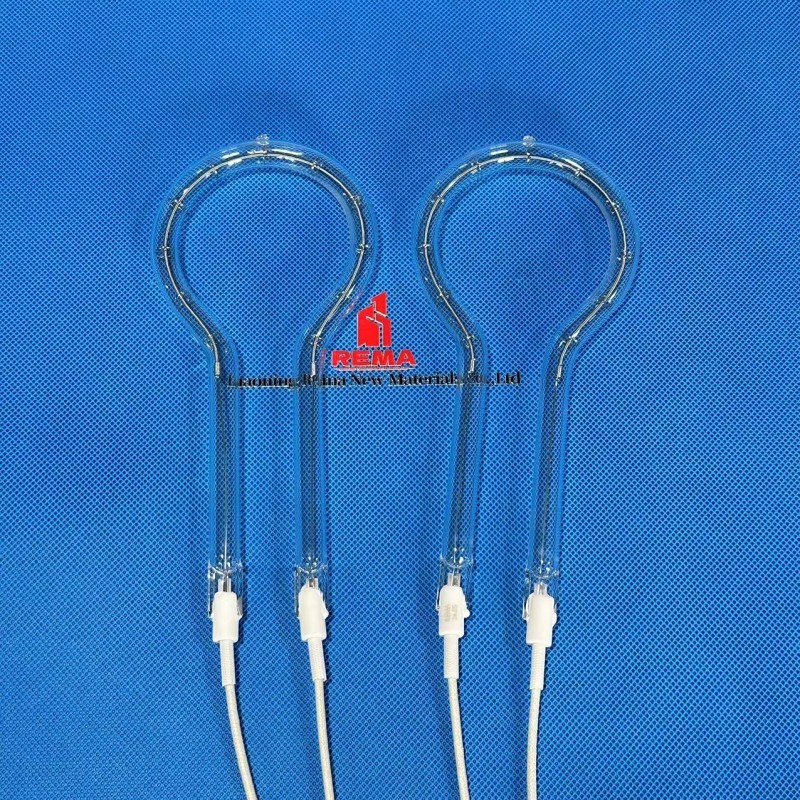

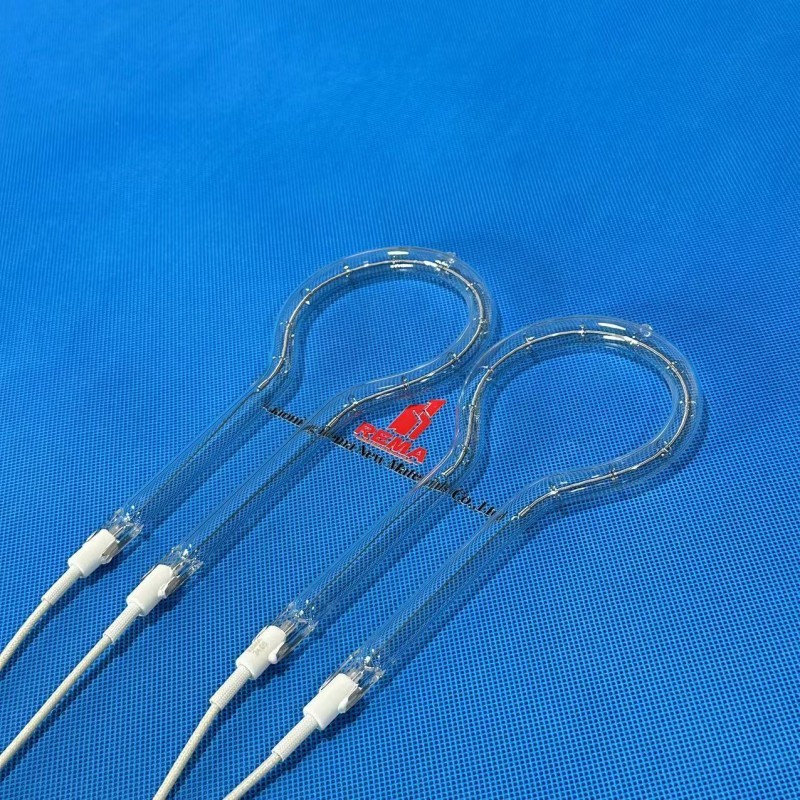

Shortwave Clear Halogen Infrared Ring IR Lamp Emitters
IR Lamp Emitters has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：220V
Input Wattage：2000W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 2000w Shortwave Clear Halogen Infrared Ring IR Lamp Element Tube
30-years experience professional custom manufacturer
| Name： | Infrared Ring lamp | Voltage ： | 24-600V |
| Wattage | 100-5000W | Heated length ： | 100-1500mm |
| Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
| Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
| Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Metal drying equipment：
Applications: cutting & curing for metal powder Features:
Curing the metal parts of powder
Curing temperature about 200℃
Curing speed increased to 150%
Higher curing speed&saving space
The results shows that by using REMA infrared heating technology, the curing of the product increases the curing rate of more than 50%,
This painting production line composed of two parts.before spraying drying parts and after spraying drying parts at 200℃.These two parts both use medium -wave infrared module,
which can control the temperature in different regions. In order to coat different colors, infrared emitters can be adjusted. In general, the dark needs less energy than the light-colored spray paint.
Characteristics:
High temperature resistance, corrosion resistance, good thermo-chemical stability, long service life, high insulation strength.
Direct heat transfer , little loss in air saving 60% energy
Out-from-within heating , improving the producing quality dramatically
Make heat processes faster, more energy-efficient , space-saving , green and environmental protection
Easy to design, manufacture and install, economical and safe.
Wide range of matching heating , making it possible for heating many kinds of products
OEM/ODM
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | ***** | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ white/ clear | 6.Base： | SK15、R7s、..... |
Or you can directly send us the photos and drawings.
CLICK TO CONTACT US !

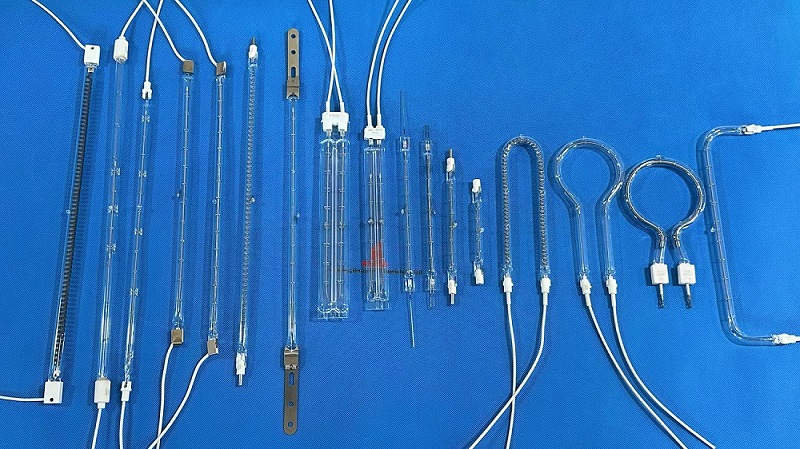

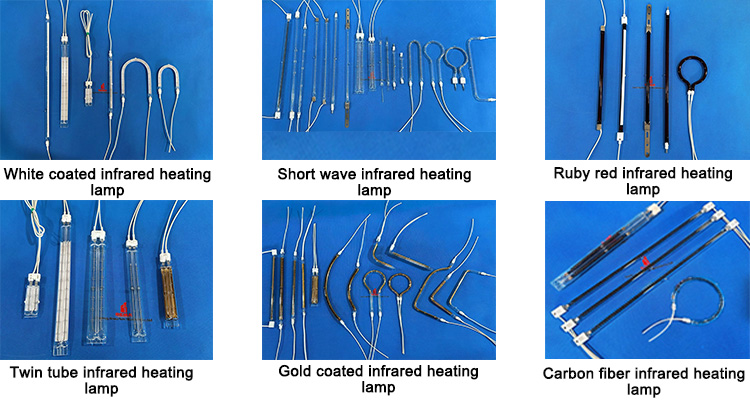

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.

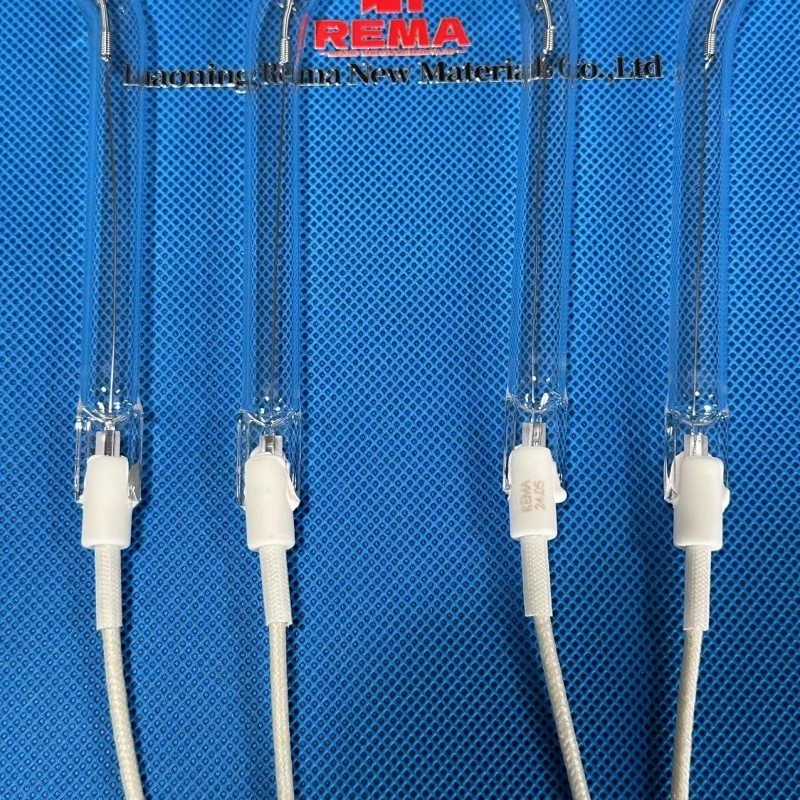

Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
According to our experience, the characteristics of the irradiated objects (heating /drying/ physiotherapy/ disinfection) are different,
and the spectrum energy absorption caused by infrared radiation are also different.
When selecting infrared radiation products ,we recommend that customers pay special attention to the following data in order to select suitable products:
AFTER-SALE GUARANTEE：
