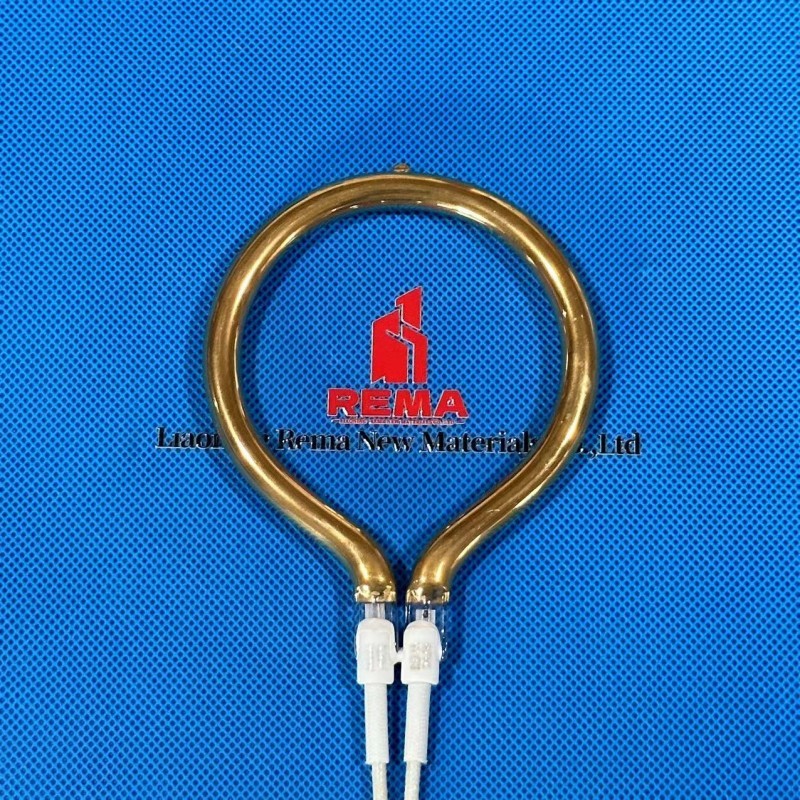

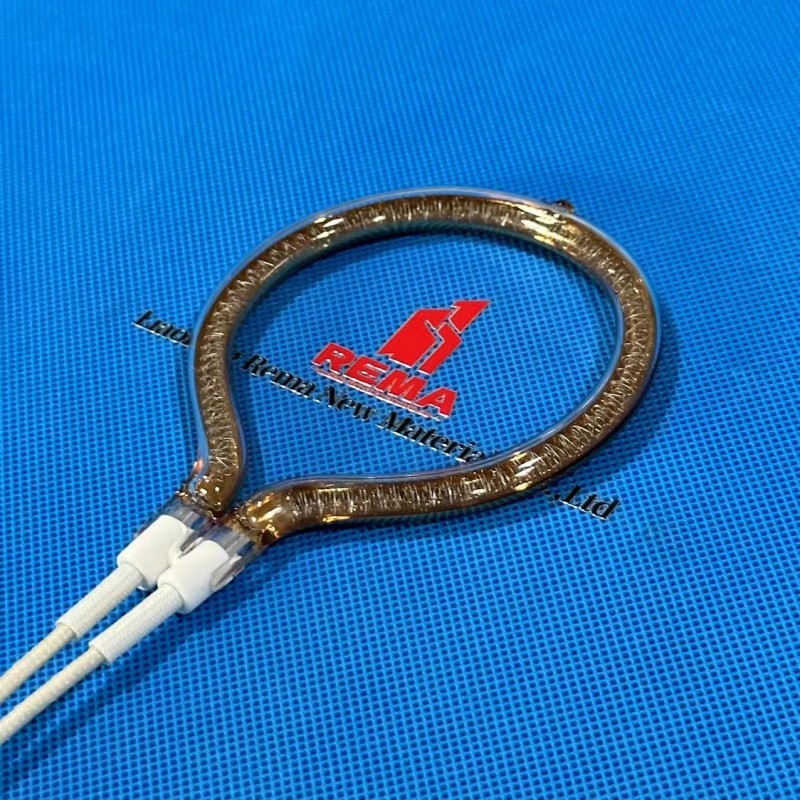

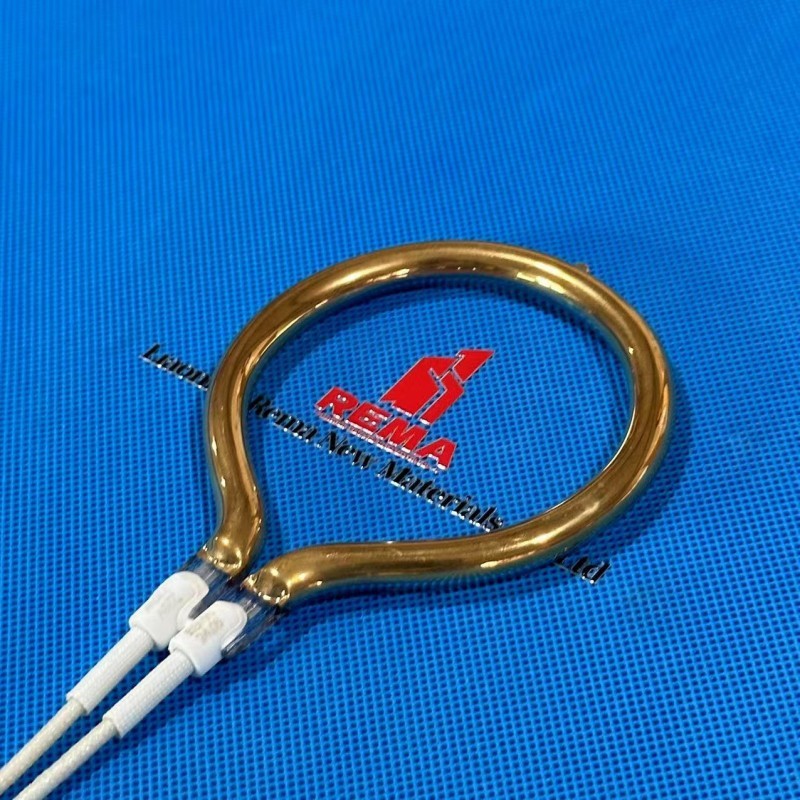

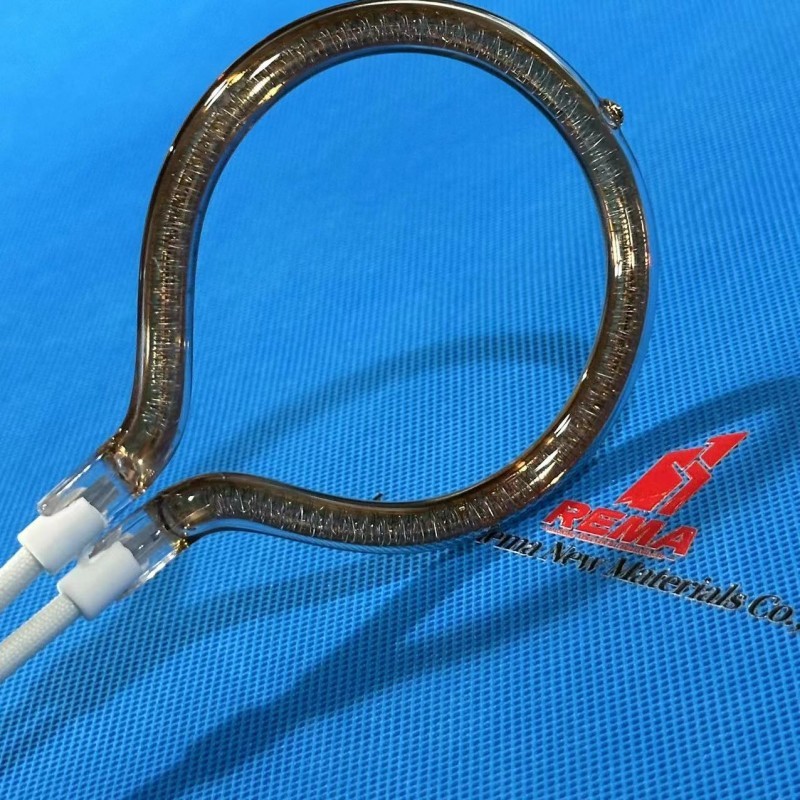

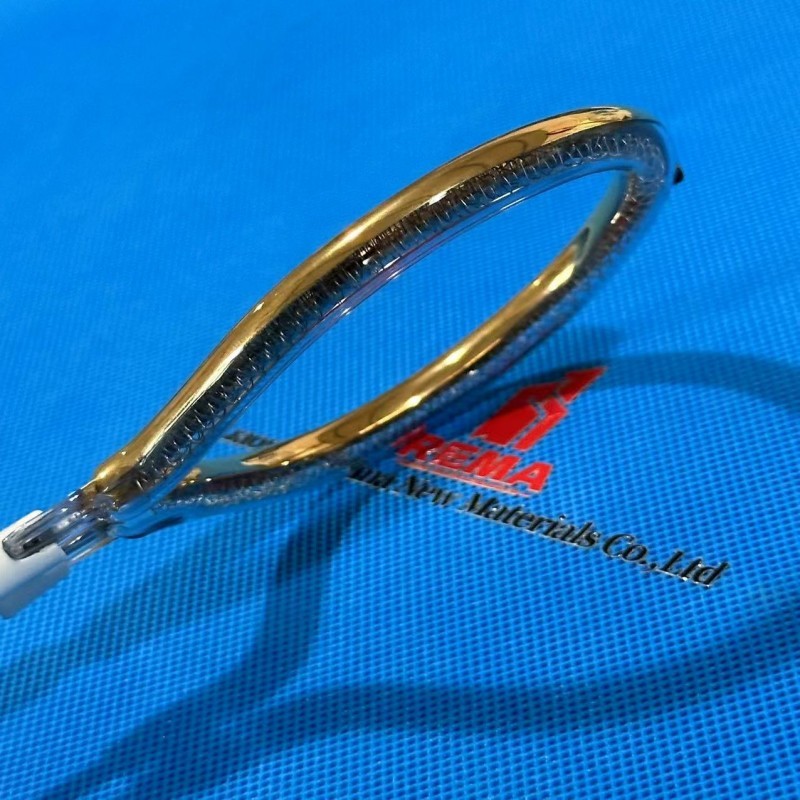

Quartz Infrared Ring Heat Lamp For Vacuum Forming
infrared Ring heat lamp has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：220V
Input Wattage：700W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 700w Halogen IR Heater Quartz infrared lamp for vacuum forming
The top quality of filament can let the lamp keep long time life
1.High efficiency.
2.Economical to run.
3.Have a fast response switching on and off timeEffectively transmit and focus heat on materials
High purity99.99% qurtz glass tube
1.Is totally transparent at lR radiation.
2.quartz is used in halogen bulbs because it can withstand high temperatures. Quartz alsoensures against heat shock.
Name： | Omega Quartz infrared lamp | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Product Details:
Edges, corners and contours are followed exactly and heated in a focused manner.
Flexible design allows IR lamps to be produced to match complex geometry work pieces significantly saving in both energy and operating costs.
Heat can be rapidly and precisely applied to the right place.
Energy losses to the environment are incredibly small and production process times can be reduced or more parts can be produced in the same time.
Omnidirectional lighting type:
The standard models are all horizontal lighting specification.
Lamps may fail or have extremely reduced life if the lamp is turned on when inclined at an angle exceeding the permitted angle (horizontal ±4°),
Consult REMA if you require lighting at angles
exceeding the permitted angle. The addition of dimples to the seal body during manufacture allows the lamp to emit light at any angle when attached to fixed supports.
Short wave quartz infrared heaters are used in various industrial applications：
PET performs heating in stretch blow moulding machines.
Printing ink drying in offset machines
Pre-heating before embossing
Screen printing curing onT-shirtst
Paint curing
Powder coating
Lacquers drying
Semiconductor industry
OEM/ODM
If the parameter is not suitable for you. Welcome to contact us .REMA Design an infrared lamp for the unique you ！
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | **mm | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ White/ Clear/Black | 6.Base： | SK15、R7s、..... |
| Or you can directly send us the photos and drawings. | |||
Custom Lamp Base LOGO
REMA uses laser printing LOGO. Make the LOGO more clear , durable and not easy to disappear by friction.
AFTER-SALE GUARANTEE
ABOUT US

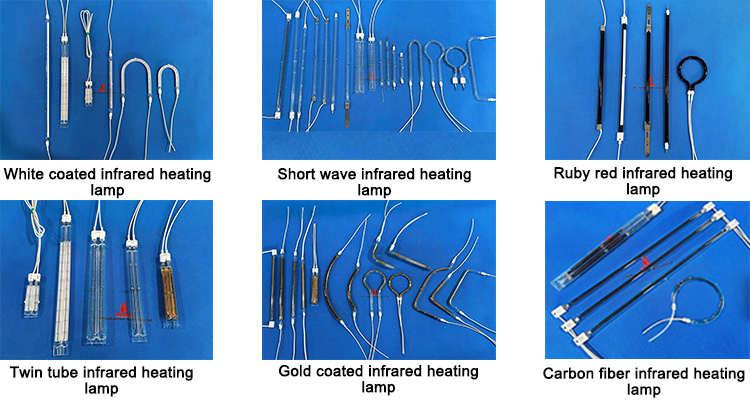

Liaoning Rema New materials Co., Ltd is a highly professional and experienced manufacturer in IR/UV lamp and quartz glass productsWe manufacture and supply wide range of infrared short wave lamp (SW),
infrared medium wave lamp (MW), infrared fast medium wave lamp (Fast MW) and infrared special lamp as well as UV lamp.
Because of Infrared intelligent heat ---precise, efficient, space and cost saving, widely used in all industrial heating processes. We also offer various kinds of precision quartz products (quartz ring, quartz flange,
quartz disc, quartz cylinder, quartz plate, quartz laboratory instrument etc.), with machining and flame-processing way, used in Semiconductor, PV,LED, Optics, Vacuum, Fiber, lighting, Disinfection, sterilization,
Chemical tube and etc.
Also, we can customize as per your requirement. OEM/ODM is accepted.
