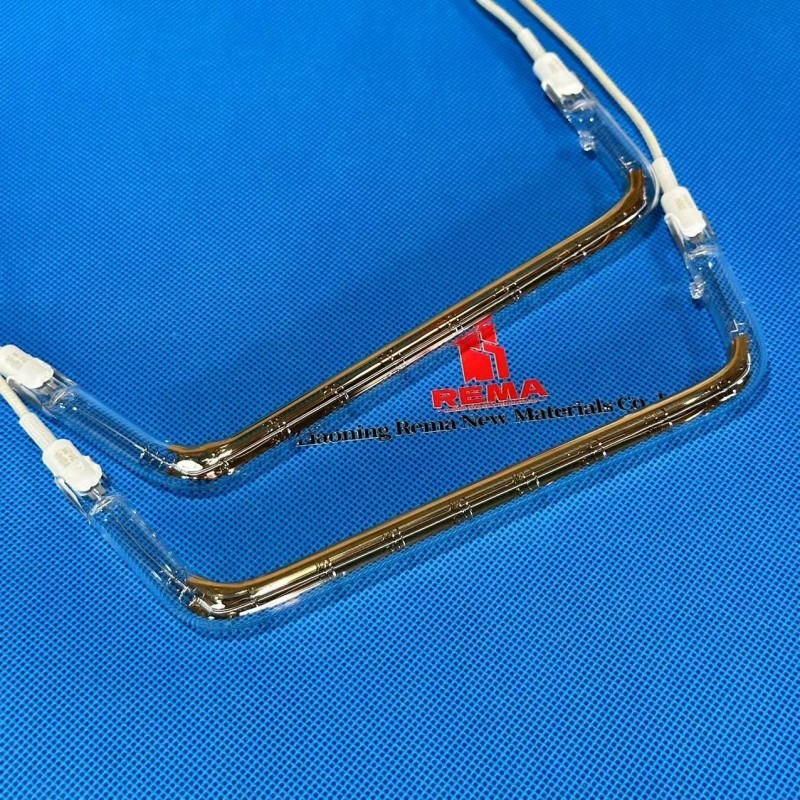

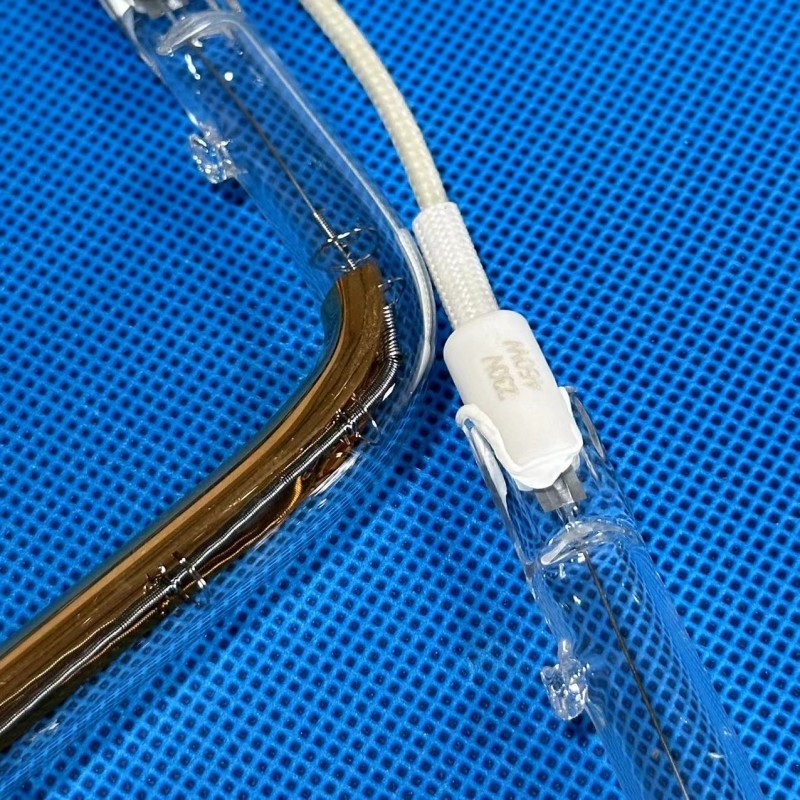

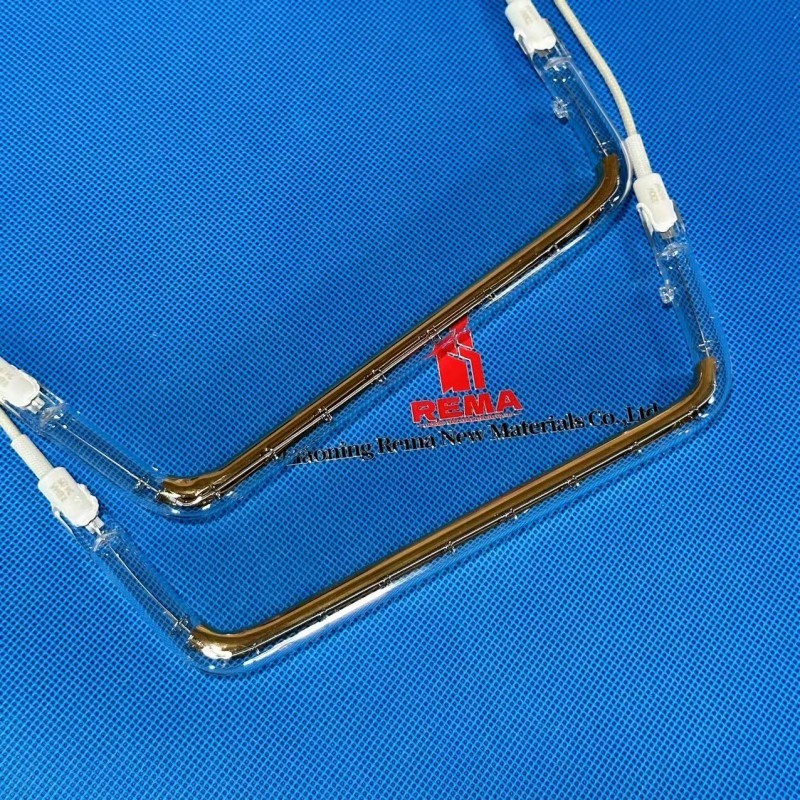

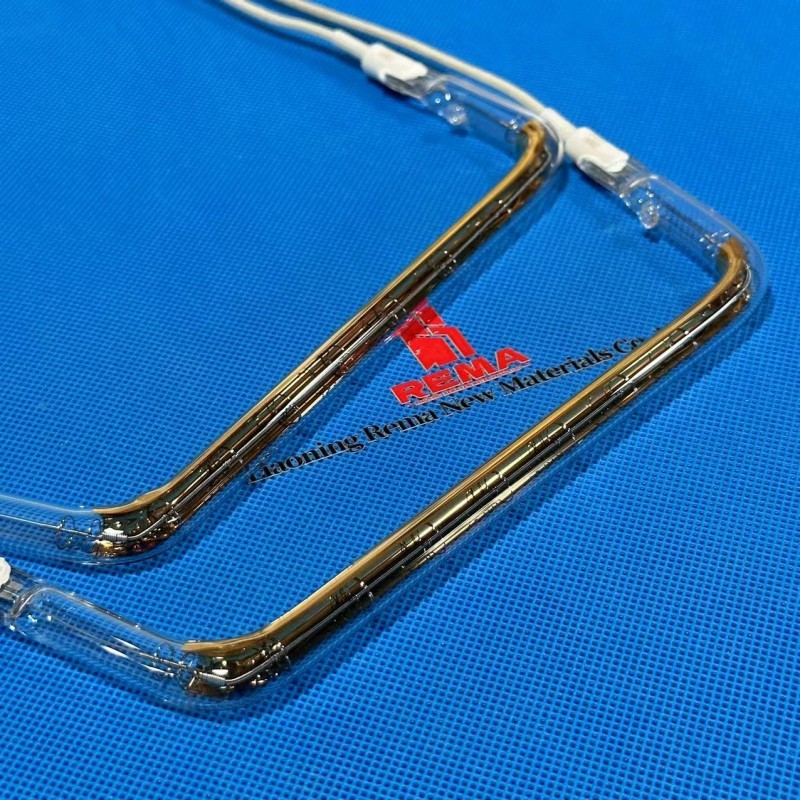

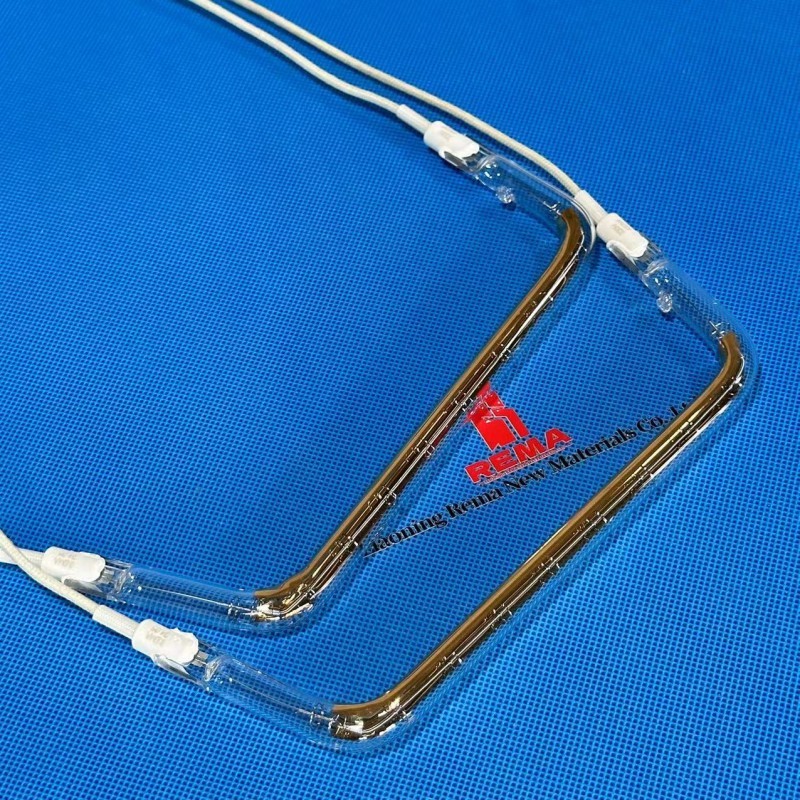

Quartz Heating Tube Ir Infra Emitter Lamp For Car Thermoforming
Quartz ir Emitter has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：230V
Input Wattage：460W
Working Lifetime：5000+ Hours
IR Distance: 1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 230v 460w Halogen IR Heater Lamp Quartz infra lamp for Car Thermoforming
High-efficiency energy source.
Non-contact heating.
High controllability due to nature of “light”
Clean heat source.
Quick on/off response.
Long life and constant energy emission
Heating in vacuum.
Name： | Quartz ir heating tube | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Drying wood
REMA drying equipment used in the production of wooden furniture
Application:drying wood on the water-based paint Features:
Easy open and turn-off,saving energy
High efficiency in the field by uniform heating
achieve the perfect surface quality
Saving space
Easily fixed into existing production lines
Since attention is paid to the environmental protection, the wood processing industry began to use water-based paint.
Therefore.customers are trying to use water-based paint, but a series of problems appear: traditional solvents will be volatile after heating,
but water-based paint will not, it is so difficult to be dried thus hinder the next coating process.
By using REMA infrared radiation: two meters long with 12kW lamps, customers are endowed with the courage of throwing away the traditional gas convection oven,
needing 20 meters production line and costing about 30 minutes for complete drying Practice proves that REMA drying equipment increases productivity,saves energy&space.
Typical Applications:
Curing Painted Surfaces
Preheating Plastics
Curing Powder Coatings
Drying /heat setting textiles after dyeing or printing
Rubber Curing.
SLS 3D print
Drying of paints
Processing Plastic foils and sheet
OEM/ODM
If the parameter is not suitable for you. Welcome to contact us .REMA Design an infrared lamp for the unique you ！
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | **mm | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ White/ Clear/Black | 6.Base： | SK15、R7s、..... |
| Or you can directly send us the photos and drawings. | |||
Custom Lamp Base LOGO
REMA uses laser printing LOGO. Make the LOGO more clear , durable and not easy to disappear by friction.
AFTER-SALE GUARANTEE
Before we proceed with the shipment, we will send you a customized product video and packaging for your confirmation.
After shipment, we will update the logistics information and tracking number in time
Professional customer service.
Complete package.
Damaged replacement & After-sales service.
We promise that we can change or refund the products if there is any quality problem.
