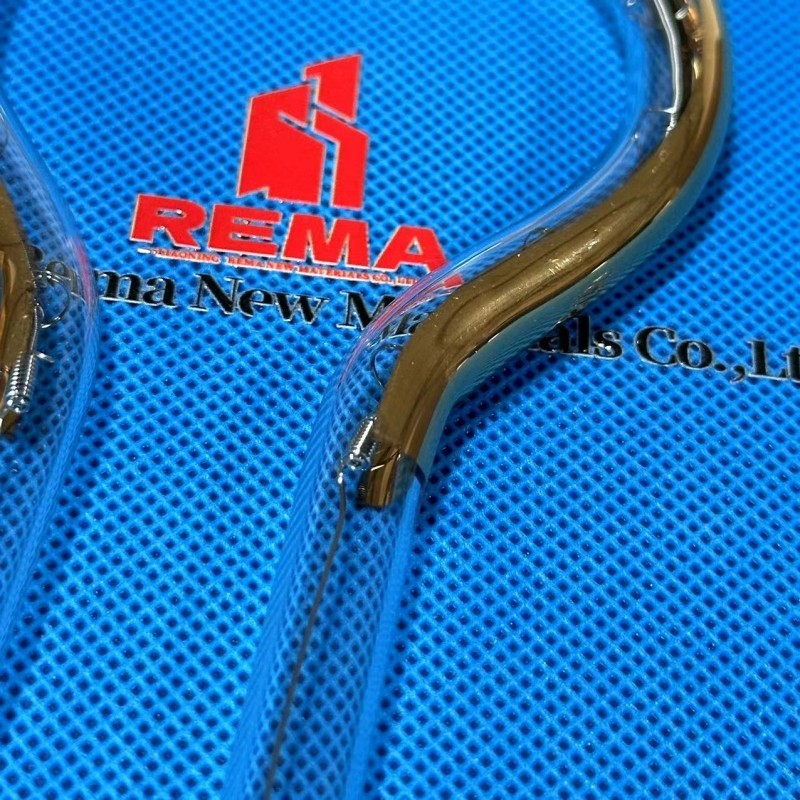

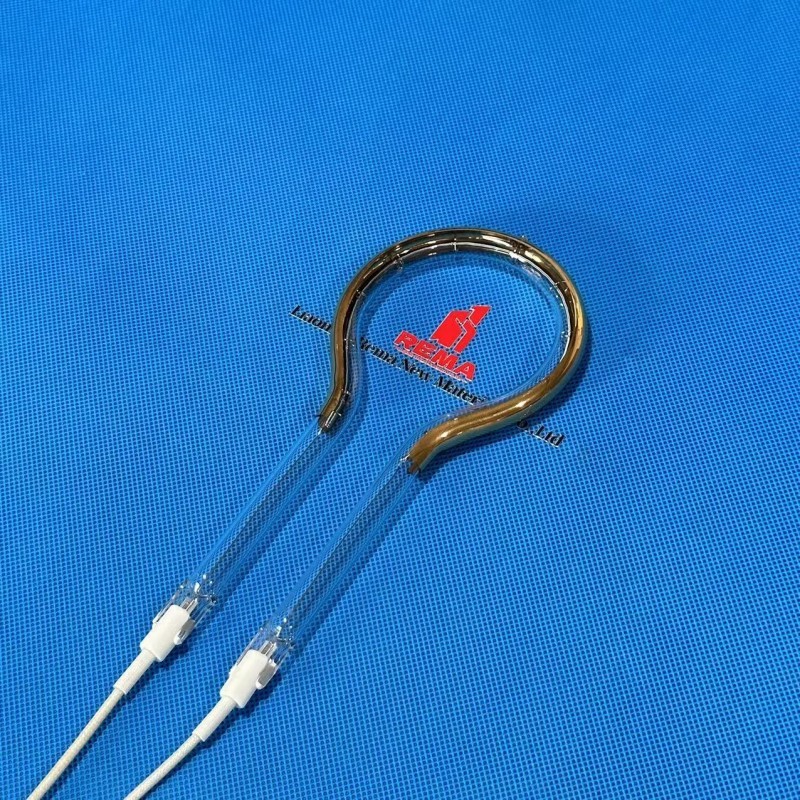

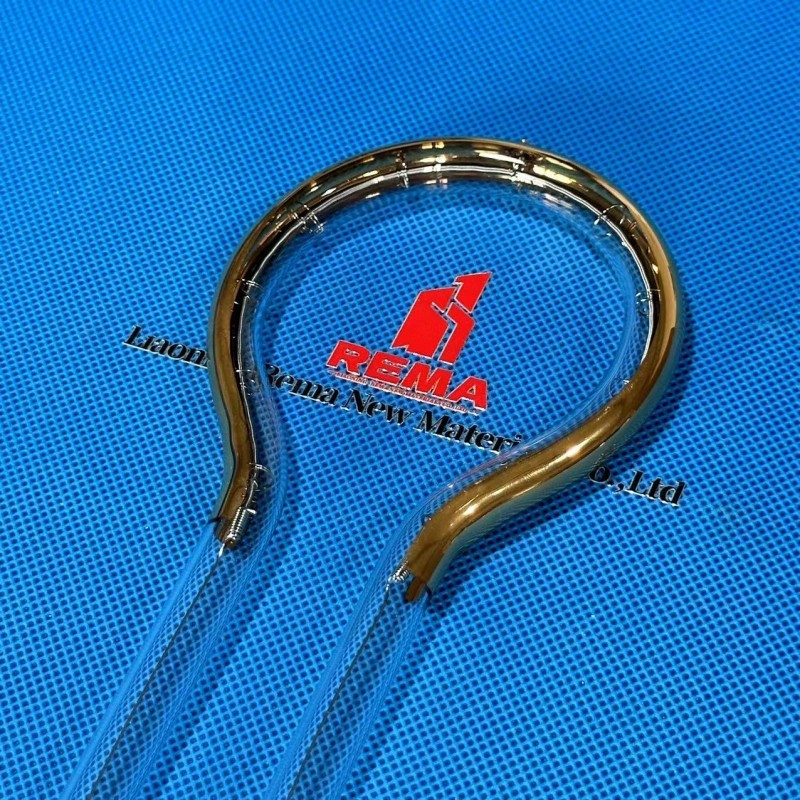

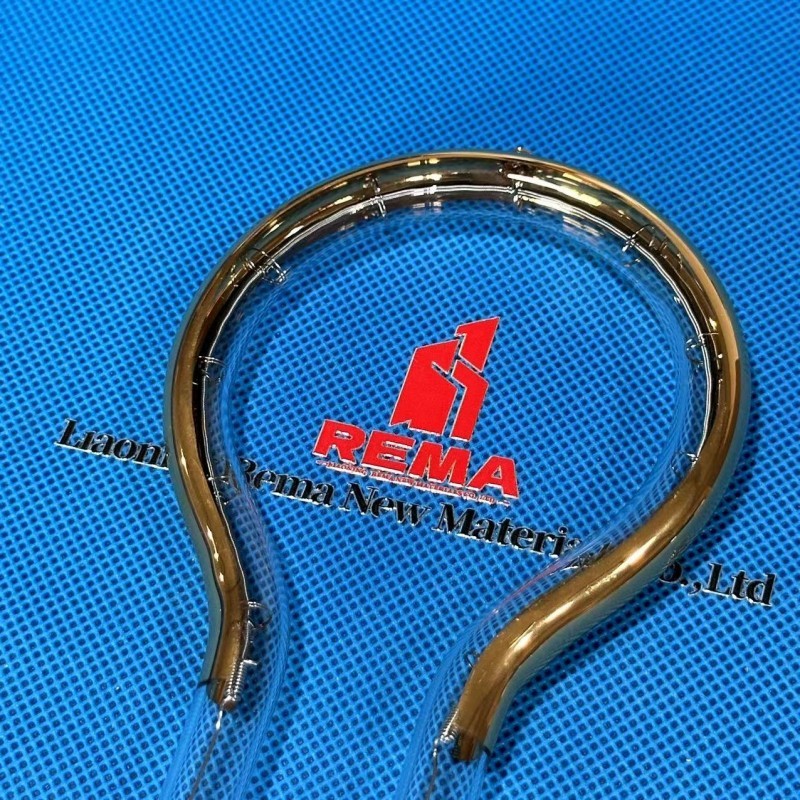

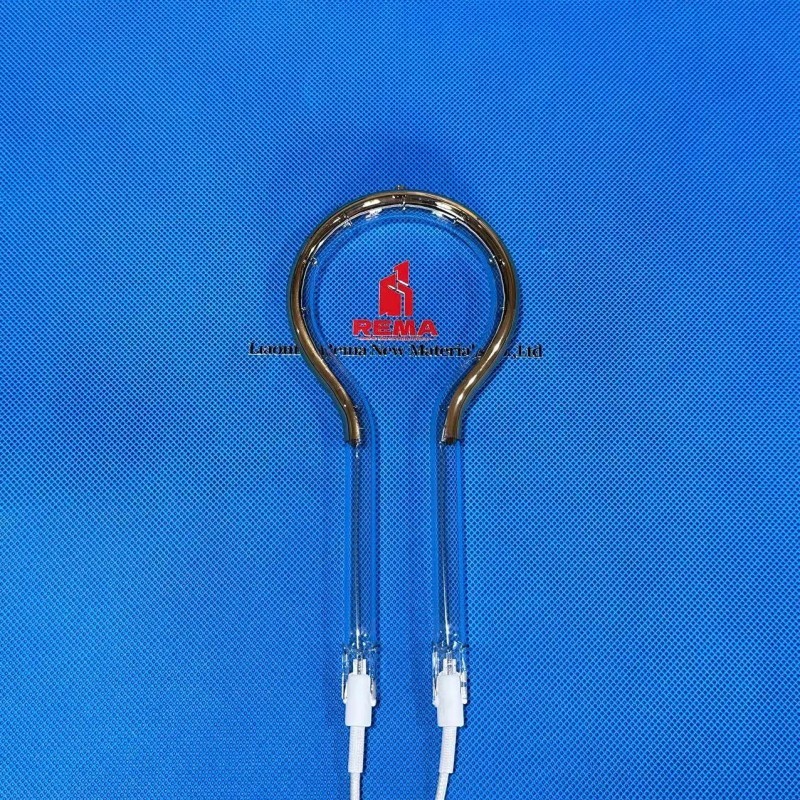

Infrared Heating Radiator Lamp With Gold Reflector Coating
Infrared Heating Radiator has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：220V
Input Wattage：2000W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 2000w Short Wave Infrared Heating Radiator lamp Emitters with gold reflector coating For Deburring Efficiently
30-years experience professional custom manufacturer
| Name： | Short Wave Infrared Radiator | Voltage ： | 24-600V |
| Wattage | 100-5000W | Heated length ： | 100-1500mm |
| Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
| Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
| Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Industrial applications：
creen printing curing on T-shirtst
Paint curing
Powder coating
Preheating Plastics
Supplemental heating
Deburring of plastic
Chemical powder heating
Chemical powder heating
Halogen heaters for vacuum use
These heaters use parts that do not emit impure gases or particles, even when used in a vacuum, to produce clean heating.
The clip base uses a nickel plate that can be freely bent or twisted, cut,and mounted with screws to suit the physical mounting location.
Omnidirectional lighting type:
The standard models are all horizontal lighting specification.
Lamps may fail or have extremely reduced life if the lamp is turned on when inclined at an angle exceeding the permitted angle (horizontal ±4°), Consult REMA if you require lighting at angles
exceeding the permitted angle. The addition of dimples to the seal body during manufacture allows the lamp to emit light at any angle when attached to fixed supports.
OEM/ODM
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | ***** | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ white/ clear | 6.Base： | SK15、R7s、..... |
Or you can directly send us the photos and drawings.
CLICK TO CONTACT US !

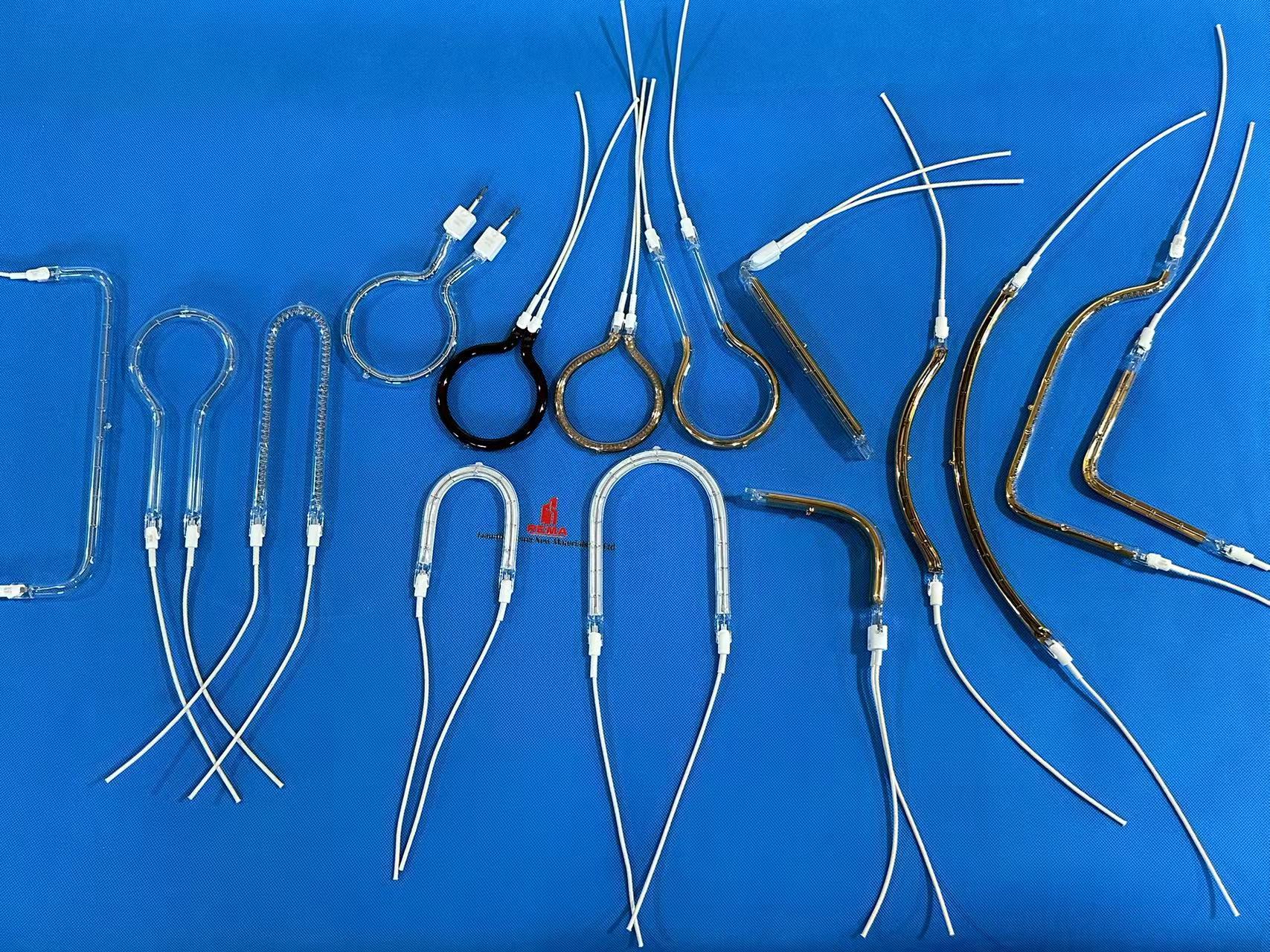

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.
Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
AFTER-SALE GUARANTEE：
Before we proceed with the shipment, we will send you a customized product video and packaging for your confirmation.
After shipment, we will update the logistics information and tracking number in time
Professional customer service.
Complete package.Damaged replacement & After-sales service.
We promise that we can change or refund the products if there is any quality problem
