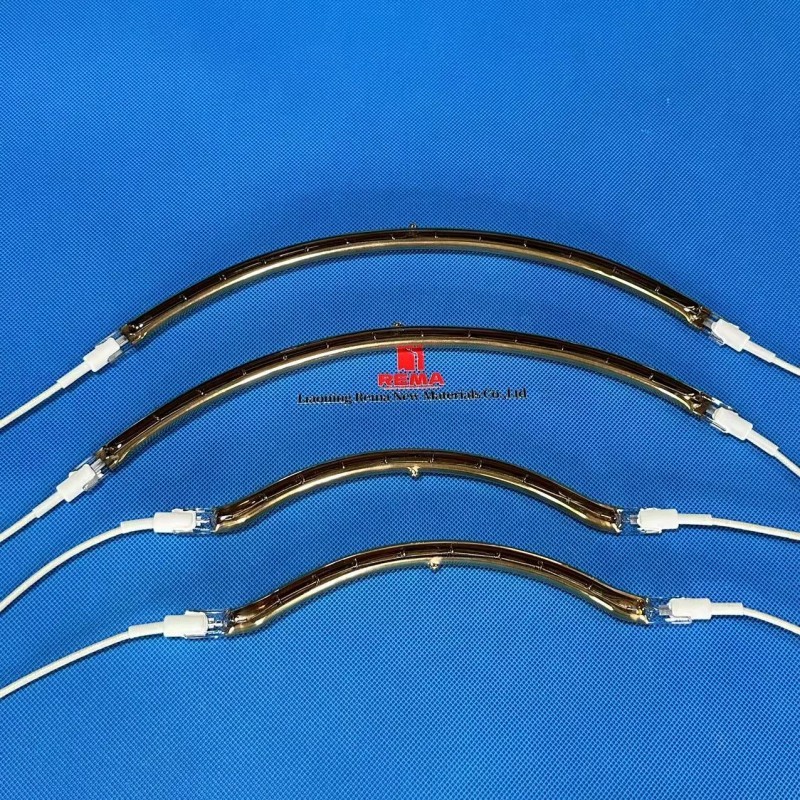

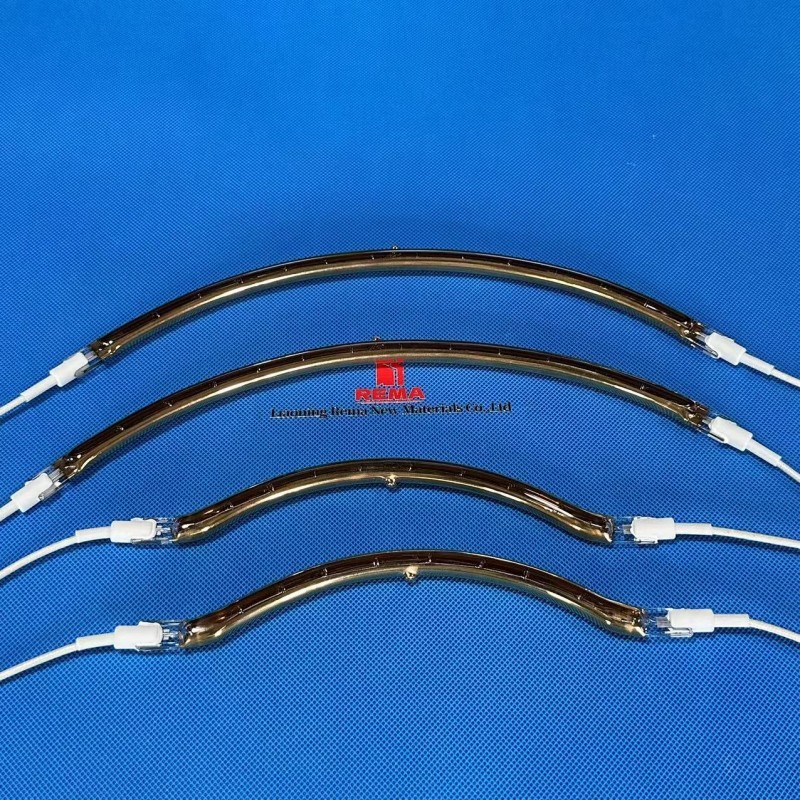

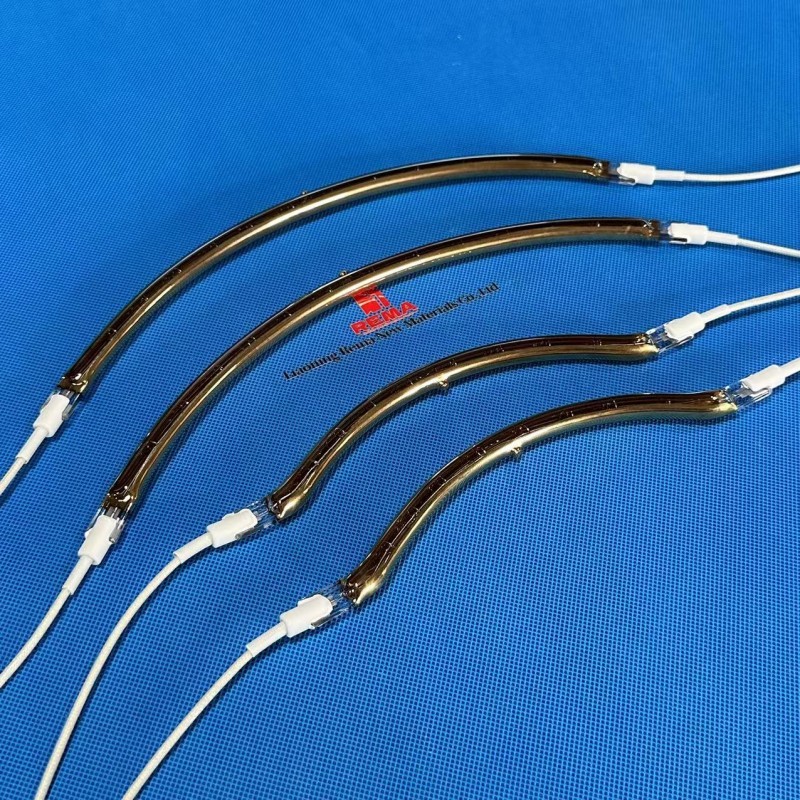

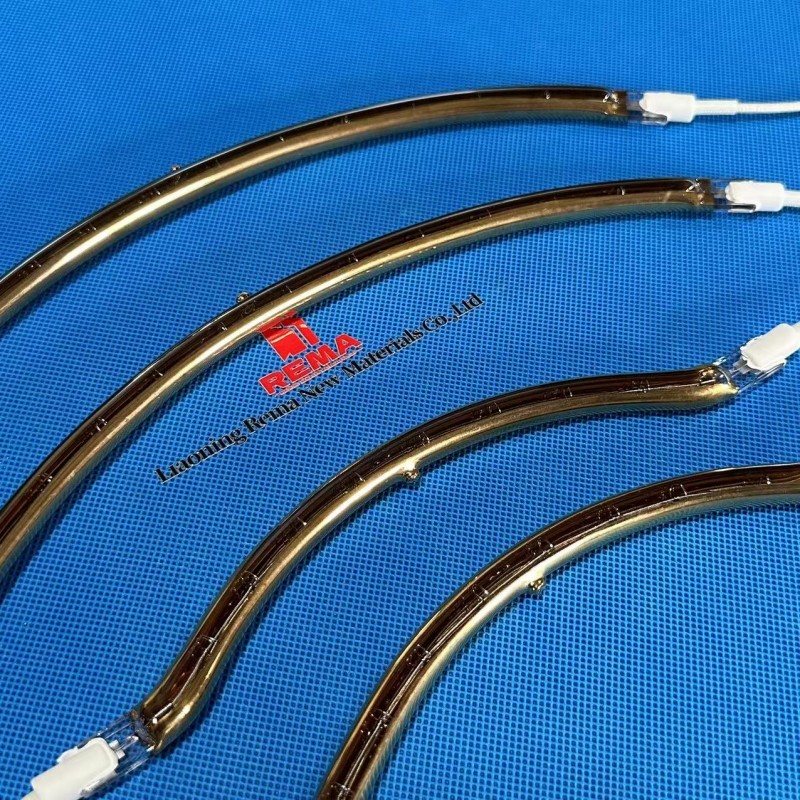

Halogen Infra Emitter Quartz Heat Tube For Deburring Of Plastic
Halogen Infra Emitter has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：230V
Input Wattage：1100W
Working Lifetime：5000+ Hours
IR Distance: 1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 1000w quartz heater infrared heat lamp light Ir tube use for paint drying curing
Name： | Short wave half white Half coated Infrared Lamp | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1-2um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Special shaped quatz glass infrared emitters are popularly applied to the automotive interior and exterior production ines, heating applications likebelow:
Infrared joining and welding for plastics components
Thermoforming of car carpet and ceiling
Vacuum laminating
Deburring of plastic
Edge wrapping
Activating adhesives
Coating industry-Paper,on woven fabric, leather, and so on
Characteristics:
Fast heating speed: short start-up time, can reach rated power within 2 seconds, and heat up quickly.
High thermal efficiency: most of the light emitted is invisible infrared, which can quickly heat the surface of objects and has high thermal conversion efficiency.
Long life: long service life, generally up to 5000 hours.
Heating in vacuum.：Proven track record as a heat source with high reliability in vacuum equipment.
Quick on/off response：Radiated energy rises and falls almost simultaneously as the switch is turned on/off due to the use of filaments with low heat capacity.
Customized Service
No suitable product for you? Welcome to contact us .REMA Design an infrared lamp for the unique you ！

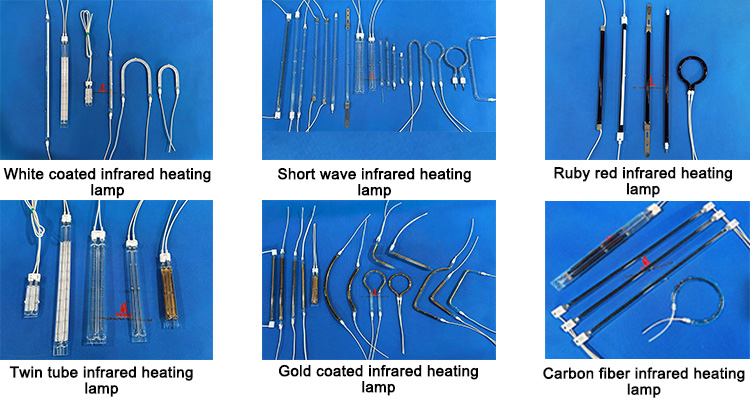

With thousands of specification IR lamps,infrared short wave lamp (SW), infrared medium wave lamp (MW),
Infrared fast medium wave lamp (Fast MW) and infrared special lamp, more than 30 years processing experience,
Skilled and experienced technical team, Make our products more excellent , Welcome to customize it according to your requirements .
Lamp Base
Reflective coating of the lamp
Terminal
AFTER-SALE GUARANTEE
MAINTENANCE AND CARE:
– Regular cleaning: During use, dust, oil and other impurities may accumulate on the surface of quartz heating lamp, affecting its heating effect and service life.
Therefore, it is necessary to clean the quartz heating lamp regularly, and you can use a clean soft cloth or paper towel to gently wipe the surface.
– Check the circuit: Regularly check whether the connection circuit of the quartz heating lamp is normal, whether there is looseness, short circuit, etc., to ensure its normal operation.
– Avoid collision: Quartz glass is relatively fragile. Avoid collision or falling during installation and use to avoid damage to the quartz heating lamp.
