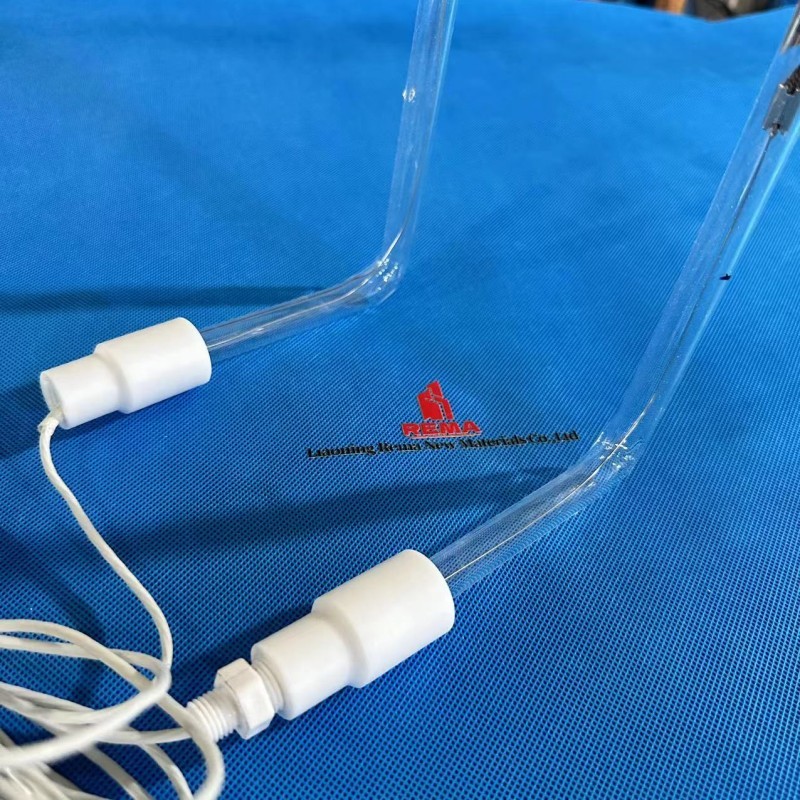

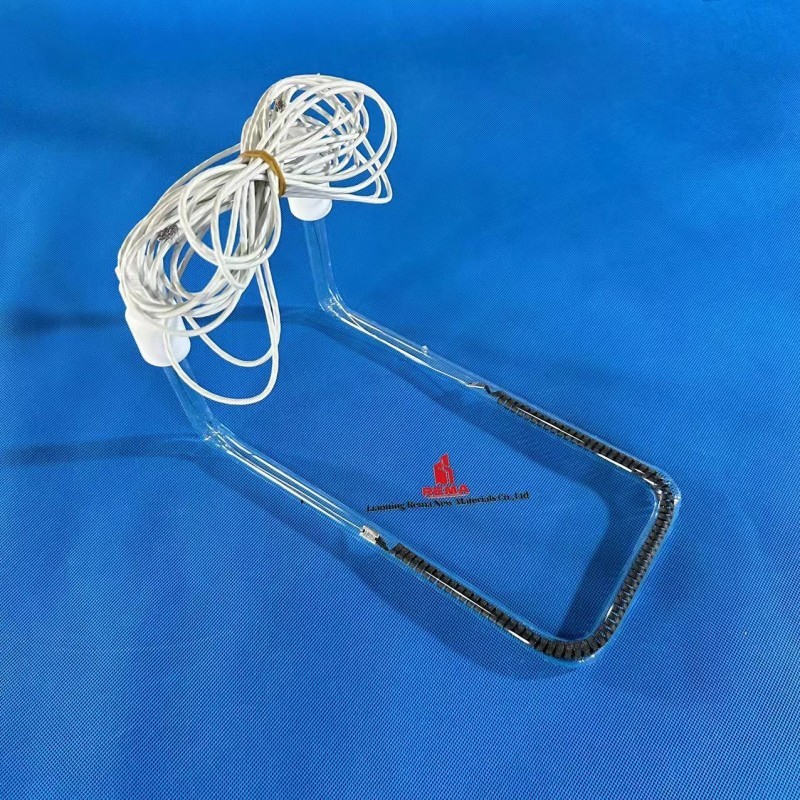

Fast Response Medium Wave Ir Carbon Fiber Filament Lamp
Carbon Fiber infrared heater has soft color, less visible light, is vibration-resistant, has a small starting current. It has good effects in food baking, industrial sterilization in low-temperature ovens, and civil heating.
Input Voltage：220V
Input Voltage：220V
Input Wattage：1350W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 1350w Fast medium wave carbon ir lamp for paint drying curing
Name： | ir carbon fiber filament lamp | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1-2um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Product Details:
Top quality quartz glass for good transmission and temperature resistance .
180°C half white coating，effectively transmit and focus heat on materials, more than 70% reflection efficiency.

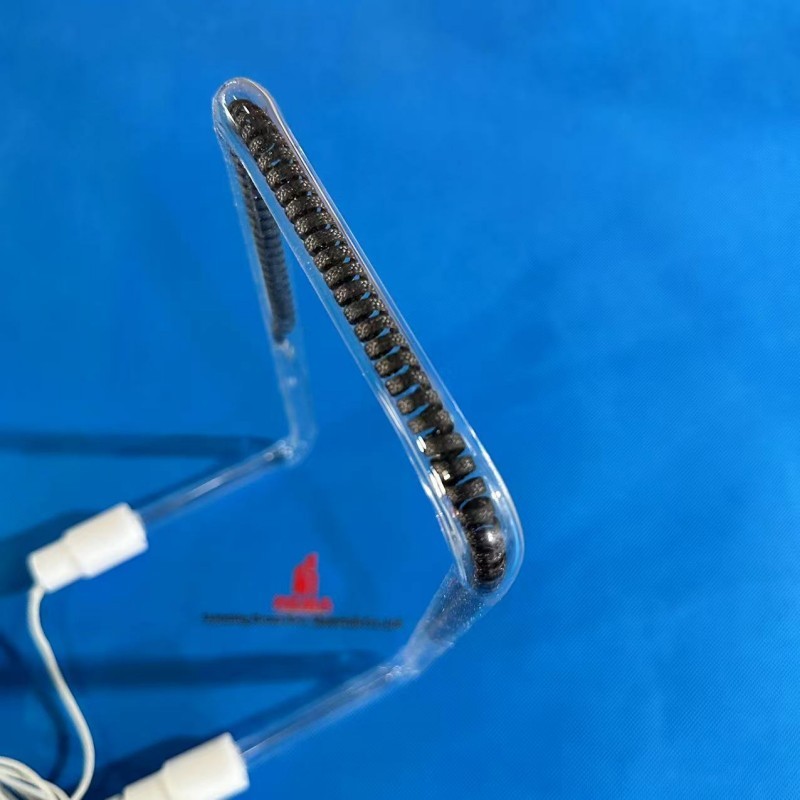

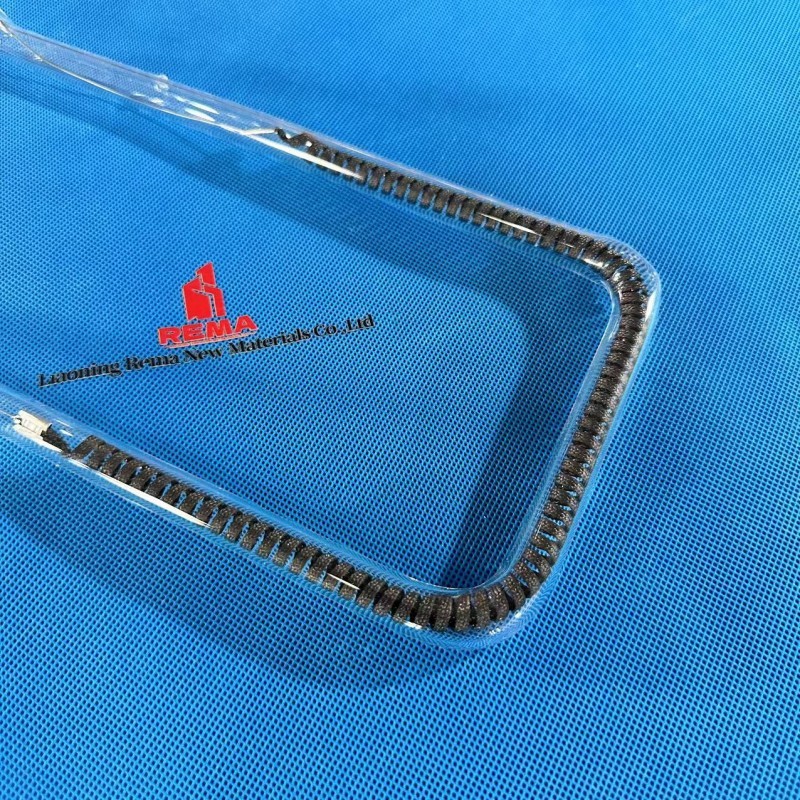

Heating filament, available in designs to suit different wavelengths.
Halogen heaters with reflective film
A white coating is applied to the rear surface of the lamp which increases the efficiency and the energy
emitted from the front of the lamp, and eliminates the optical components, such as the reflective mirror,
reducing the cost. It also helps suppress the increase in temperature of surfaces on the side of the reflective film.
Customized Service
No suitable product for you? Welcome to contact us .REMA Design an infrared lamp for the unique you ！
With thousands of specification IR lamps,infrared short wave lamp (SW), infrared medium wave lamp (MW),
Infrared fast medium wave lamp (Fast MW) and infrared special lamp, more than 30 years processing experience,
Skilled and experienced technical team, Make our products more excellent , Welcome to customize it according to your requirements .
Lamp Base
Reflective coating of the lamp
Terminal
Characteristics:
High temperature resistance, corrosion resistance, good thermo-chemical stability, long service life, high insulation strength.
Clean heating process , no pollution
Direct heat transfer , little loss in air saving 60% energy
Out-from-within heating , improving the producing quality dramatically
Make heat processes faster, more energy-efficient , space-saving , green and environmental protection
Easy to design, manufacture and install, economical and safe.
Wide range of matching heating , making it possible for heating many kinds of products
