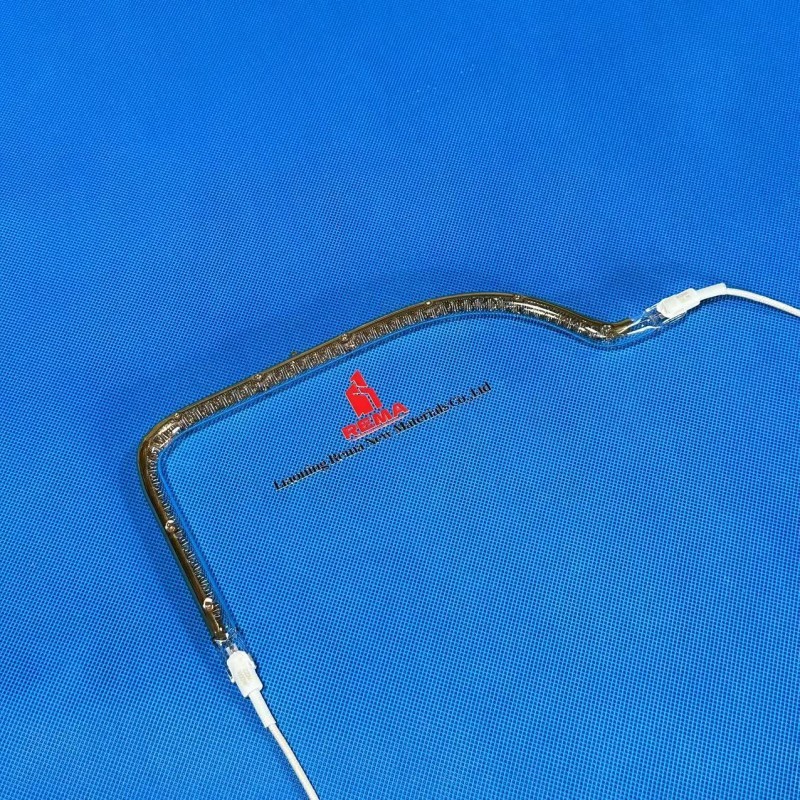

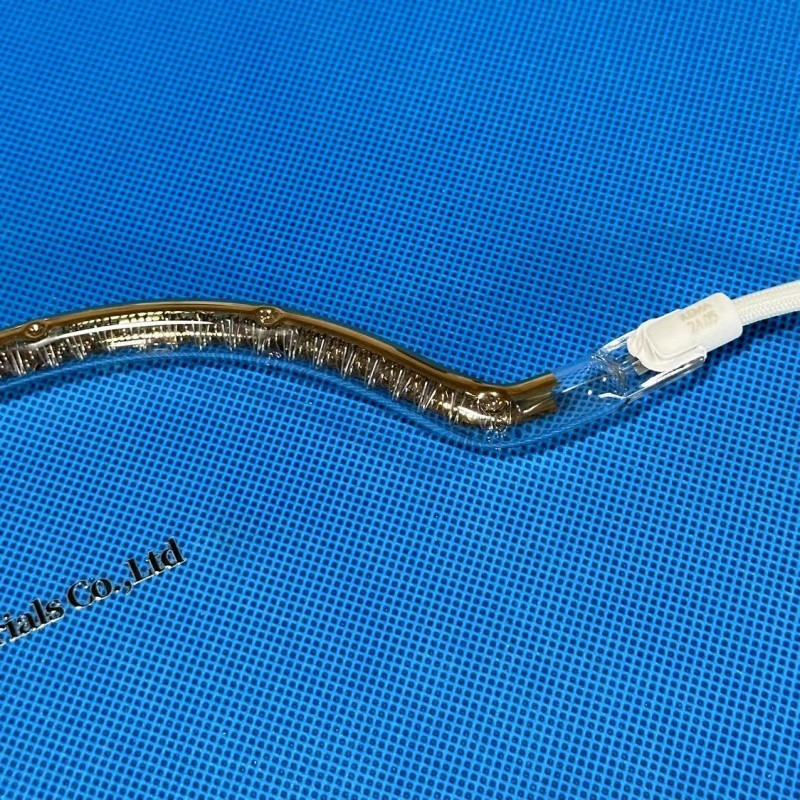

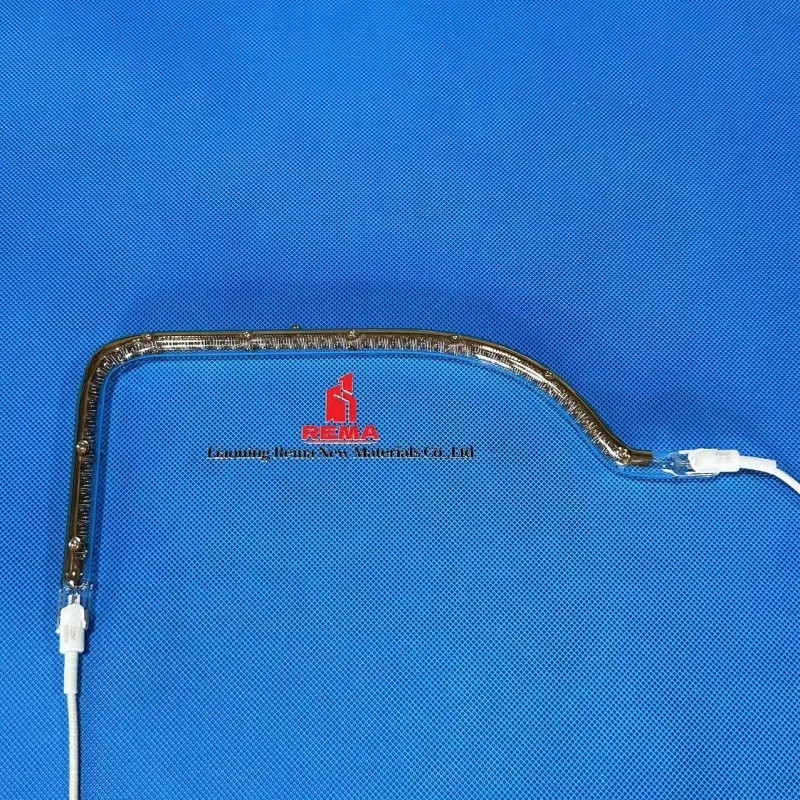

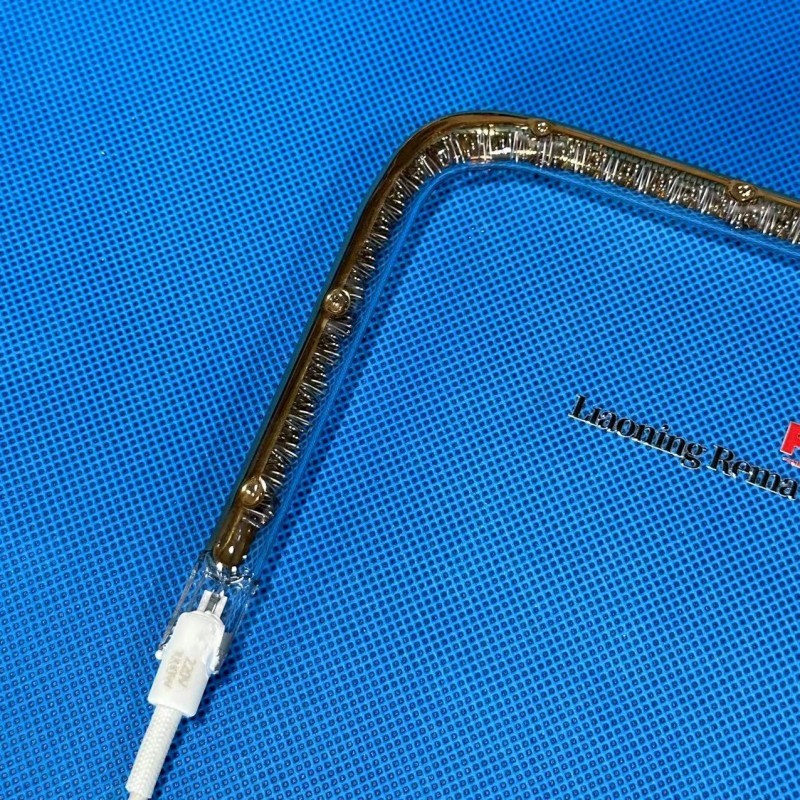

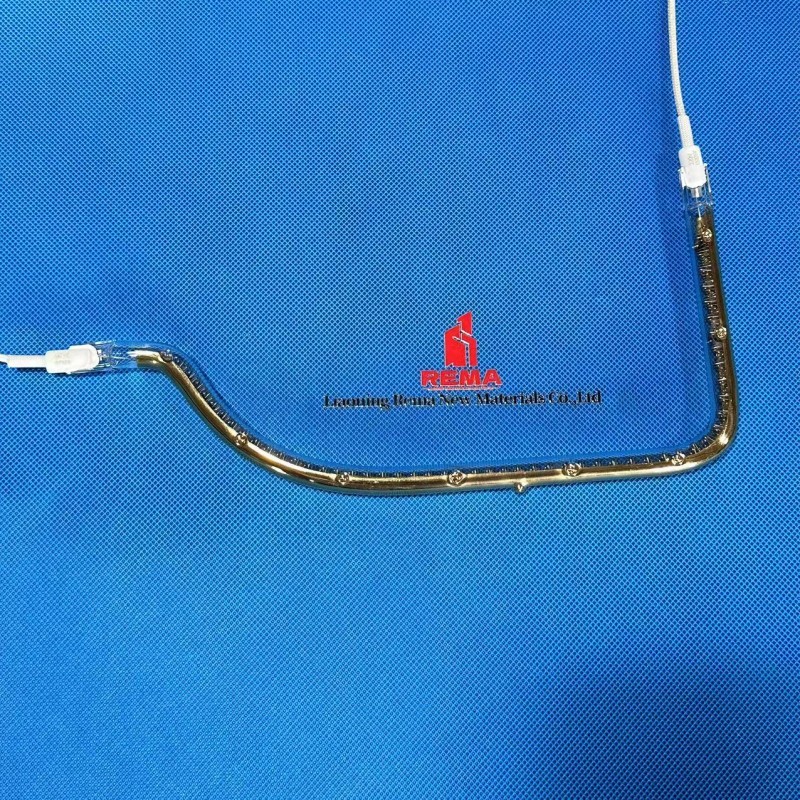

Fast Medium Wave Quartz Tube Heater IR Lamps For Deburring Of Plastic
Quartz IR Lamps has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：220V
Input Wattage：1000W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA Special customized Fast Medium Wave Quartz Tube Heater v220 Halogen Infra Red Emitter with gold reflector for heating
30-years experience professional custom manufacturer
| Name： | Fast Medium IR Lamp | Voltage ： | 24-600V |
| Wattage | 100-5000W | Heated length ： | 100-1500mm |
| Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
| Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
| Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Quartz IR Lamps applications like below:
PET performs heating in stretch blow moulding machines.
Printing ink drying in offset machines
Pre-heating before embossing
Screen printing curing on T-shirtst
Infrared joining and welding for plastics components
Thermoforming of car carpet and ceiling
Characteristics:
halogen lamp quartz is High-efficiency energy source.
halogen lamp quartz is Non-contact heating.
halogen lamp quartz can Intelligent heat and control temperature precisely.
halogen lamp quartz is Clean heat source.
halogen lamp quartz can Quick on/off response.
halogen lamp quartz has Long life and constant energy emission.
halogen lamp quartz is Heating in vacuum.
OEM/ODM
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | ***** | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ white/ clear | 6.Base： | SK15、R7s、..... |
Or you can directly send us the photos and drawings.
CLICK TO CONTACT US !

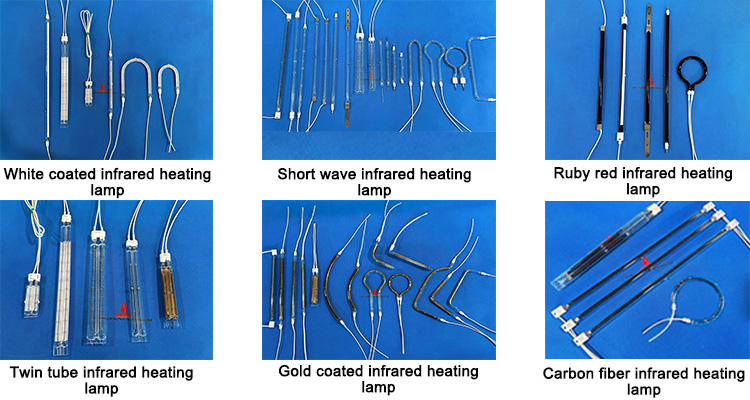

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.
Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
According to our experience, the characteristics of the irradiated objects (heating /drying/ physiotherapy/ disinfection) are different,
and the spectrum energy absorption caused by infrared radiation are also different.

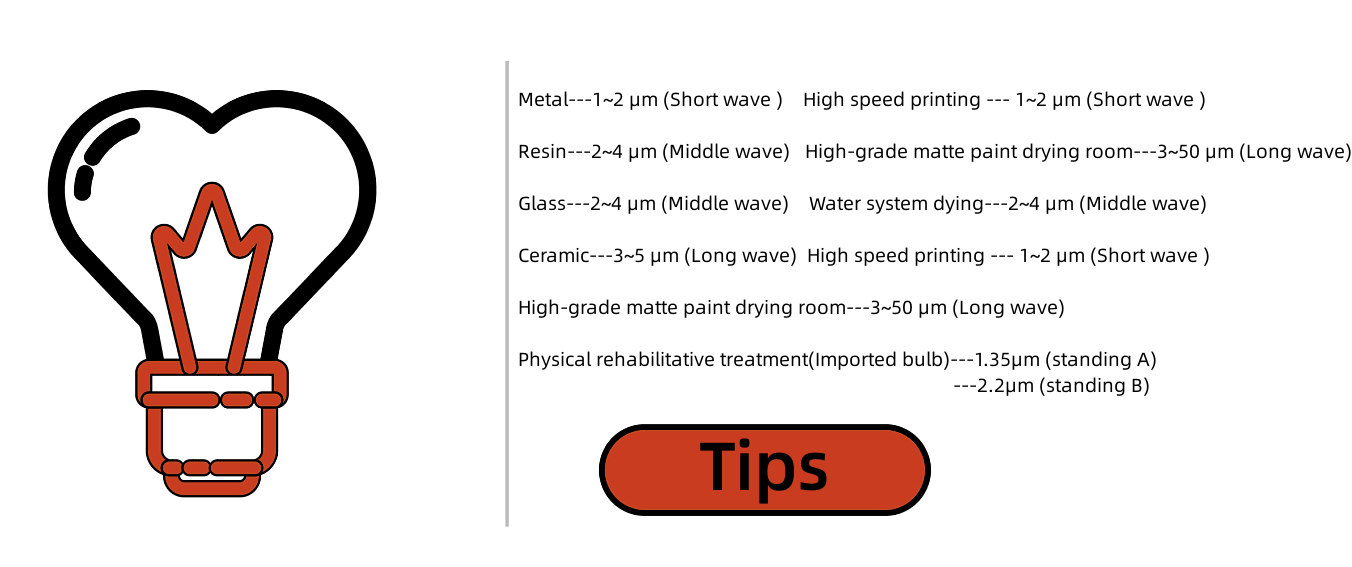

When selecting infrared radiation products ,we recommend that customers pay special attention to the following data in order to select suitable products:
