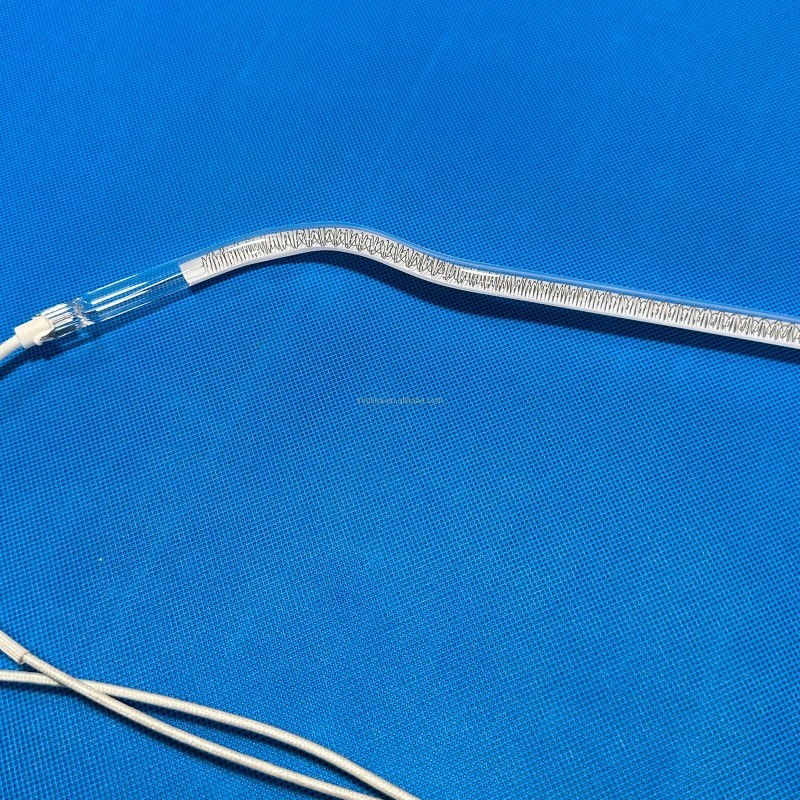

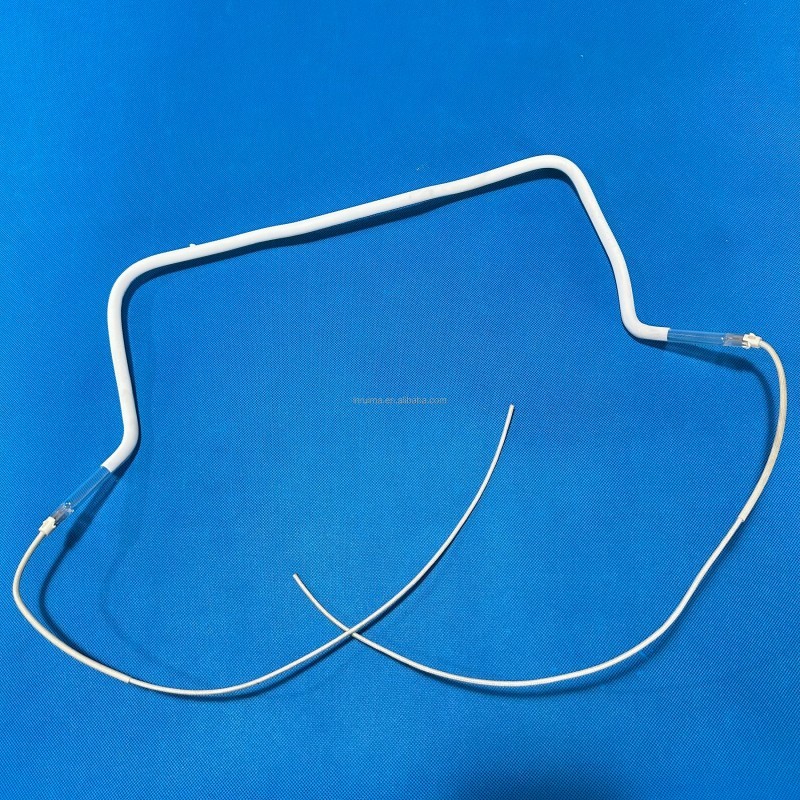

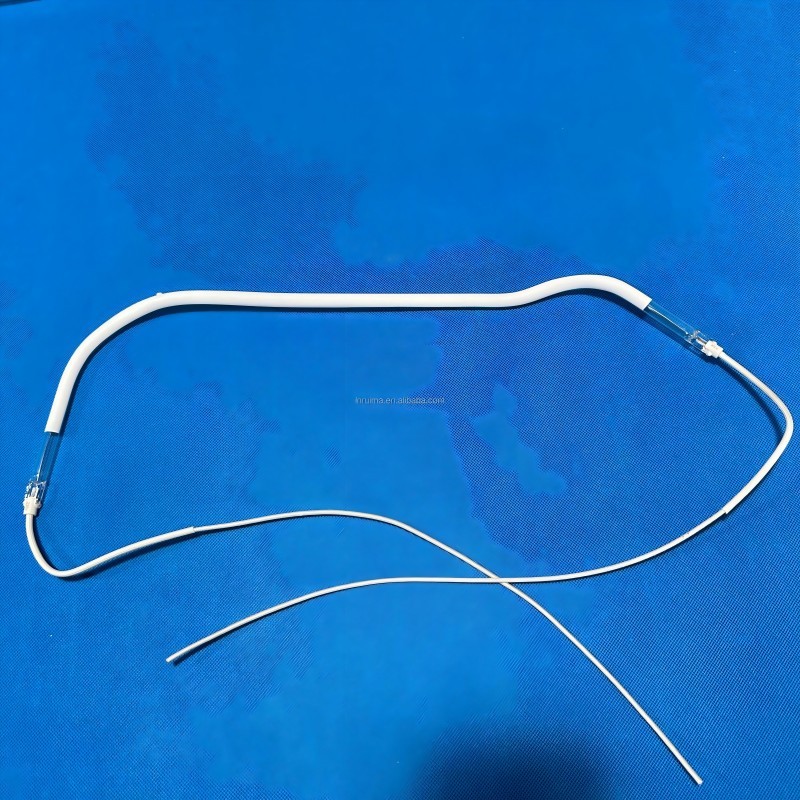

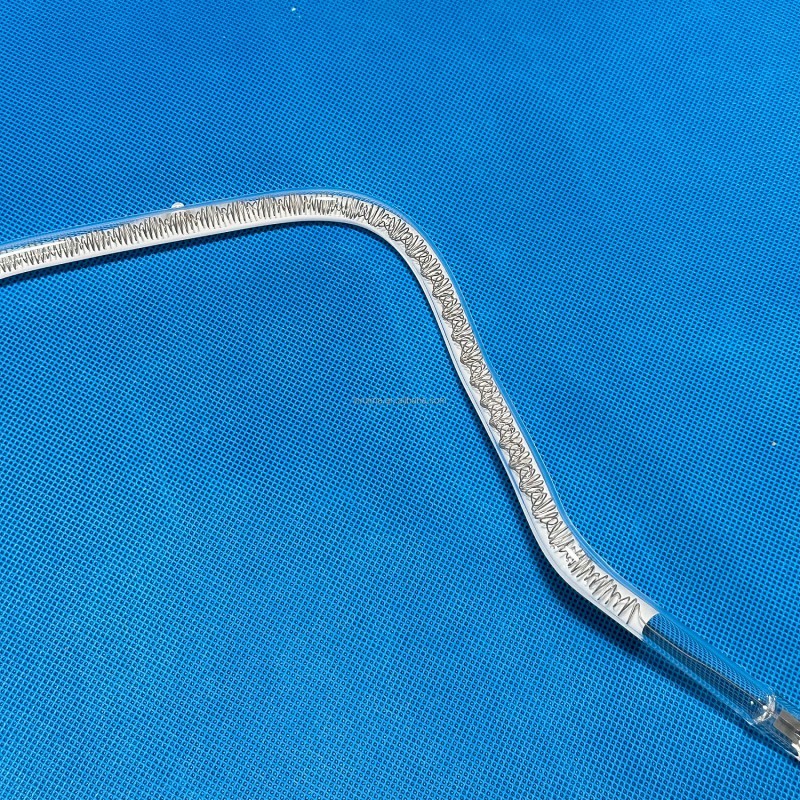

Fast Medium Wave Half-Coated White Ir Quartz Heating Lamp
ir quartz heating lamp has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：230V
Input Wattage：1100W
Working Lifetime：5000+ Hours
IR Distance: 1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA Octagonal Wire White Coated Reflector Plated Quartz Infrared Heater Lamp for Screen Printing
Name： | Half-Coated White quartz heating lamp | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1-2um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
WHY WITH WHITE REFLECTIVE COATING ?
Half white coating, effectively transmit and focus heat on materials.more than 70% reflection efficiency.The reflective coating can be customized：
180 degree half white reflecter,
doube sides white reflecters,
240 degree white reflecer.
With professional coating technology
The white relfeter coating is stable,long time working not easy to to fall off.
Industrial Applications:
Paint drying
Pre-heating of PET perform
Silicon wafer manufacturing process in Semiconductor
Drying process in paper mill
Plastics thermoforming
Edge wrapping
Activating adhesives
Customized Service
No suitable product for you? Welcome to contact us .REMA Design an infrared lamp for the unique you ！
With thousands of specification IR lamps,infrared short wave lamp (SW), infrared medium wave lamp (MW),
Infrared fast medium wave lamp (Fast MW) and infrared special lamp, more than 30 years processing experience,
Skilled and experienced technical team, Make our products more excellent , Welcome to customize it according to your requirements .
Lamp Base
Reflective coating of the lamp
Terminal
Characteristics:
1.infrared halogen lamp are Energy-saving, Space-saving, Highly efficient, Environmentally Friendly.
2.infrared halogen lamp are High-efficiency energy source.
3.infrared halogen lamp Intelligent heat and control temperature precisely.
4.infrared halogen lamp are Long life and constant energy emission.
5.infrared halogen lamp are Nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
Grain dryer：
The old way：
Big limitations of dryer.Different kinds of grain require different dryers The old way with different drying methods and temperatures.Overcapacity. No matter the drying quantity，
the dryer should be chosen on the basis of maximum dying quantity required.
High cost. Traditional grain dryers usually apply coal, natural gas, diesel oil and even electricity.Serious environmental pollution. Large pollution will be produced during using of hot-blast stove.
Large size of machine
The New way：
Low energy consumption.REMA apply advanced Infrared medium-wave radiative heat.Separate Zones (flexibility and energy savings).
Eco-friendly.No secondary pollution without hot-blast heater. lt's been tested that infrared can be used in physical therapy. lt's totally healthy.
Omnidirectional lighting type:
The standard models are all horizontal lighting specification.
Lamps may fail or have extremely reduced life if the lamp is turned on when inclined at an angle exceeding the permitted angle (horizontal ±4°), Consult REMA if you require lighting at angles
exceeding the permitted angle. The addition of dimples to the seal body during manufacture allows the lamp to emit light at any angle when attached to fixed supports.
Maintenance and care:
– Regular cleaning: During use, dust, oil and other impurities may accumulate on the surface of quartz heating lamp, affecting its heating effect and service life. Therefore, it is necessary to clean the quartz heating lamp regularly, and you can use a clean soft cloth or paper towel to gently wipe the surface.
– Check the circuit: Regularly check whether the connection circuit of the quartz heating lamp is normal, whether there is looseness, short circuit, etc., to ensure its normal operation.
– Avoid collision: Quartz glass is relatively fragile. Avoid collision or falling during installation and use to avoid damage to the quartz heating lamp.
