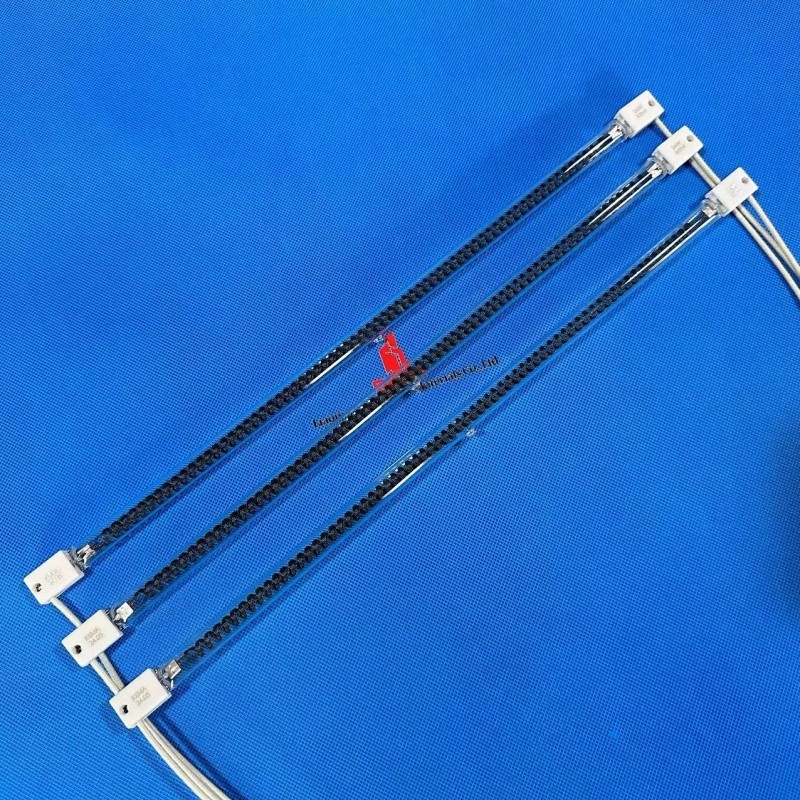

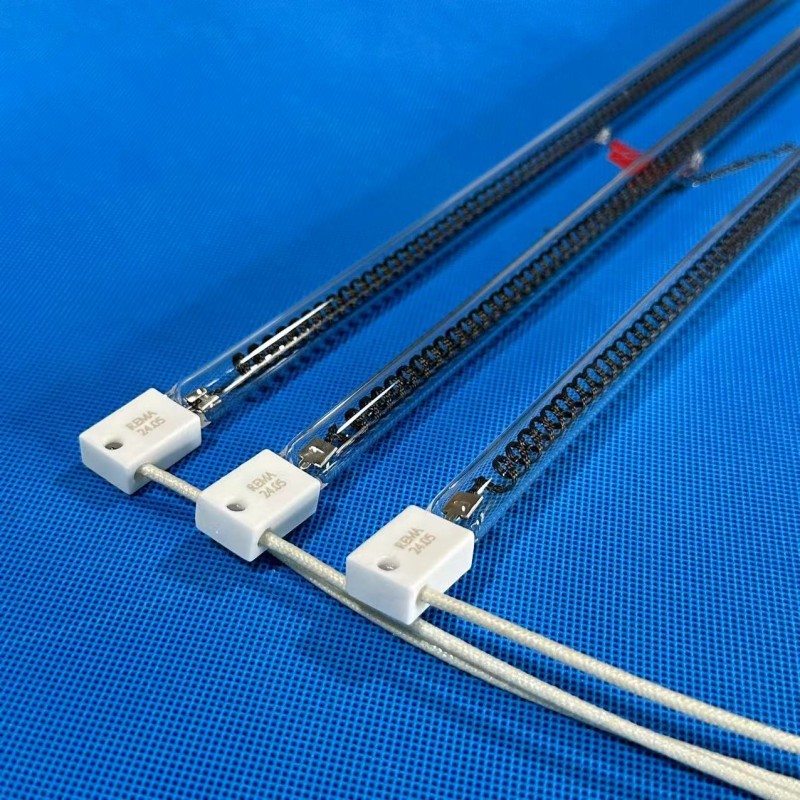

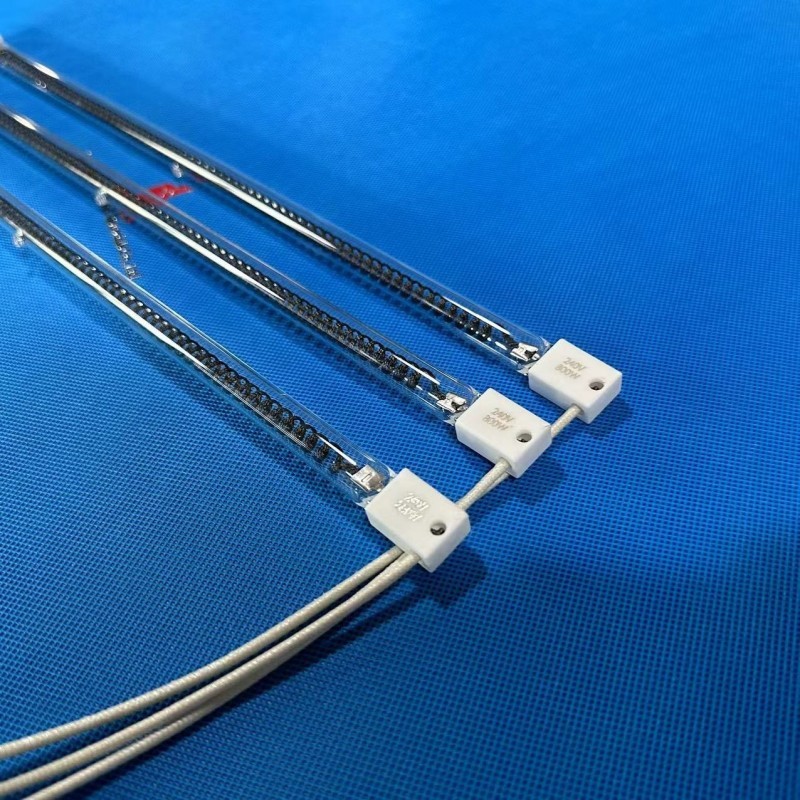

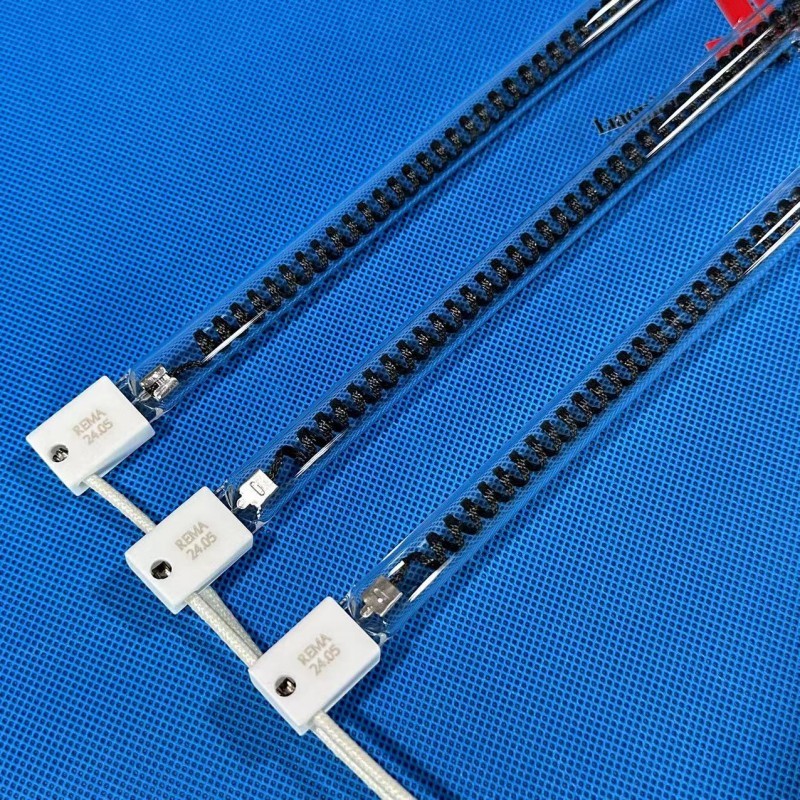

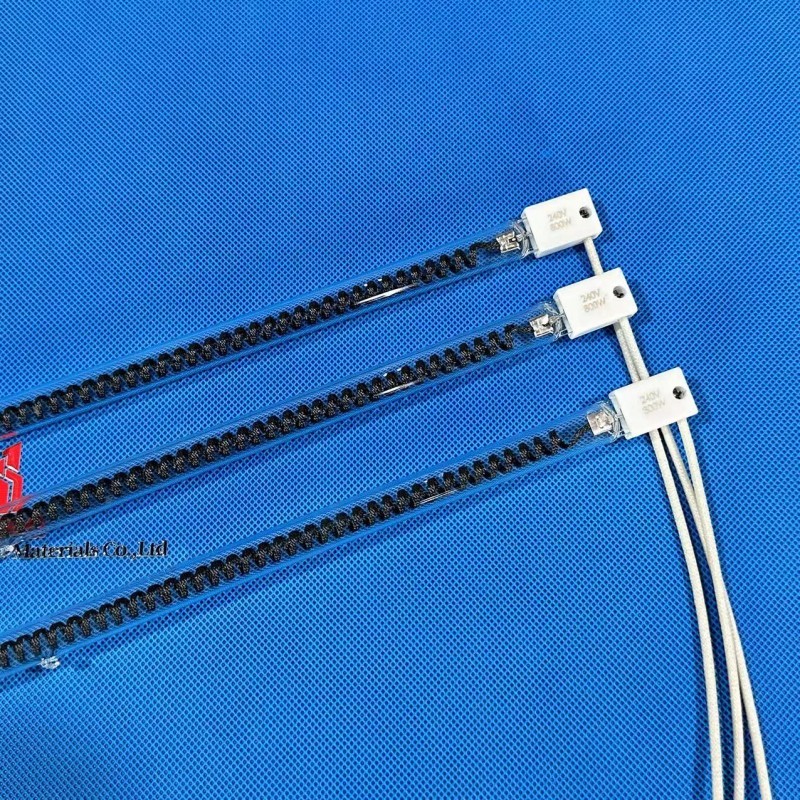

Sk-15 Clear Single Tube Carbon Fiber Infrared Heater Quartz
Carbon Fiber quartz heater infr has soft color, less visible light, is vibration-resistant, has a small starting current. It has good effects in food baking, industrial sterilization in low-temperature ovens, and civil heating.
Input Voltage：240V
Input Wattage：800W
Working Lifetime：5000+ Hours
IR Distance:2-9.5μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 240v 800w Clear Single Tube Carbon Fiber Quartz Infrared Heating IR Lamp Element
Infrared Emitters are Energy-saving, Space-saving, Highly efficient, Environmentally Friendly.
Infrared Emitters are High-efficiency energy source.
Infrared Emitters are Intelligent heat and control temperature precisely.
Infrared Emitters are Long life and constant energy emission.
Infrared Emitters are Nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
Name： | Infrared heater quartz | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Infrared heater quartzare used in various industrial applications：
PET performs heating in stretch blow moulding machines.
Printing ink drying in offset machines
Pre-heating before embossing
Screen printing curing onT-shirtst
Paint curing
Powder coating
Lacquers drying
Semiconductor industry
Carbon Infrared Emitters
Comprehensive tests have shown that Carbon emitters drywater-based coatings signifi-cantly more efficiently than short wave infrared emitters.
A Carbon infrared emitter may require only up to 30% of the energy for the same drying process as a conventional short wave infrared emitter.
Moreover,many materials such as glass and plastics show a decided preference for thermal radiationin the medium wave region.
Omnidirectional lighting type:
The standard models are all horizontal lighting specification.
Lamps may fail or have extremely reduced life if the lamp is turned on when inclined at an angle exceeding the permitted angle (horizontal ±4°), Consult REMA if you require lighting at angles
exceeding the permitted angle. The addition of dimples to the seal body during manufacture allows the lamp to emit light at any angle when attached to fixed supports.
OEM/ODM
If the parameter is not suitable for you. Welcome to contact us .REMA Design an infrared lamp for the unique you ！
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | **mm | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ White/ Clear/Black | 6.Base： | SK15、R7s、..... |
| Or you can directly send us the photos and drawings. | |||
Custom Lamp Base LOGO
REMA uses laser printing LOGO. Make the LOGO more clear , durable and not easy to disappear by friction.

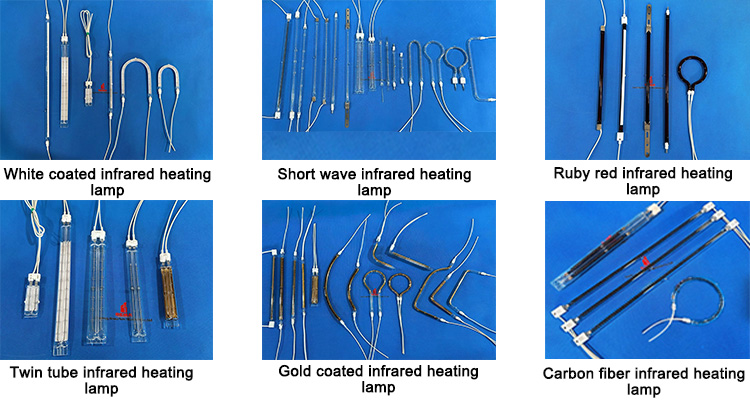

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.

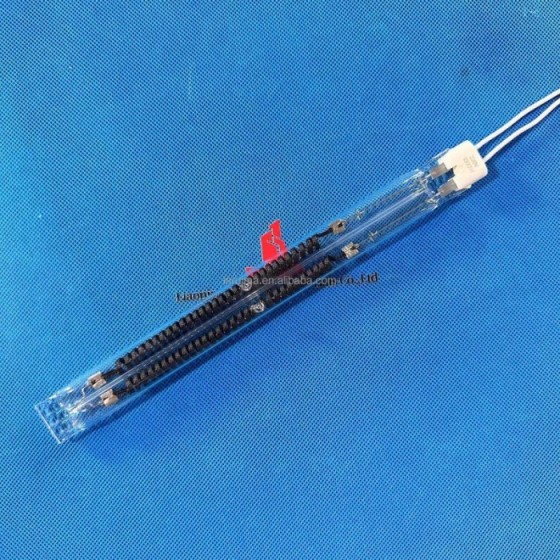

Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
According to our experience, the characteristics of the irradiated objects (heating /drying/ physiotherapy/ disinfection) are different,
and the spectrum energy absorption caused by infrared radiation are also different.
When selecting infrared radiation products ,we recommend that customers pay special attention to the following data in order to select suitable products:
