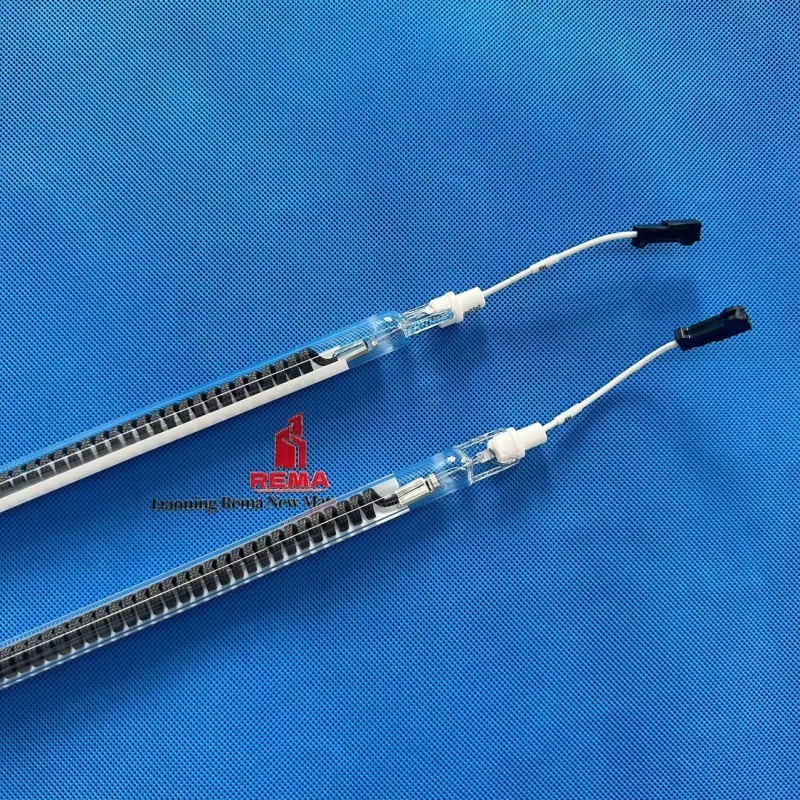

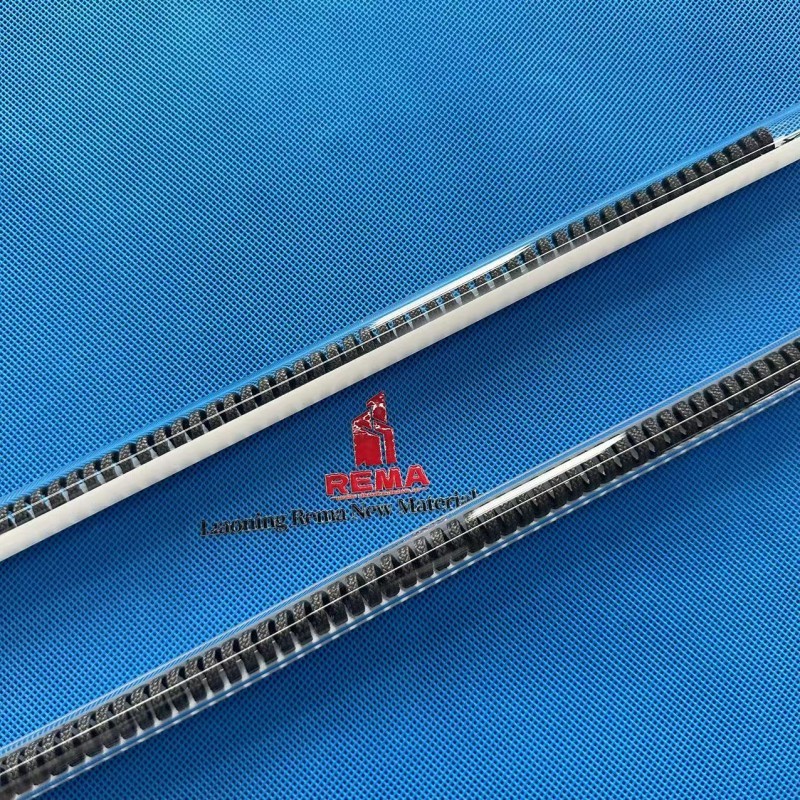

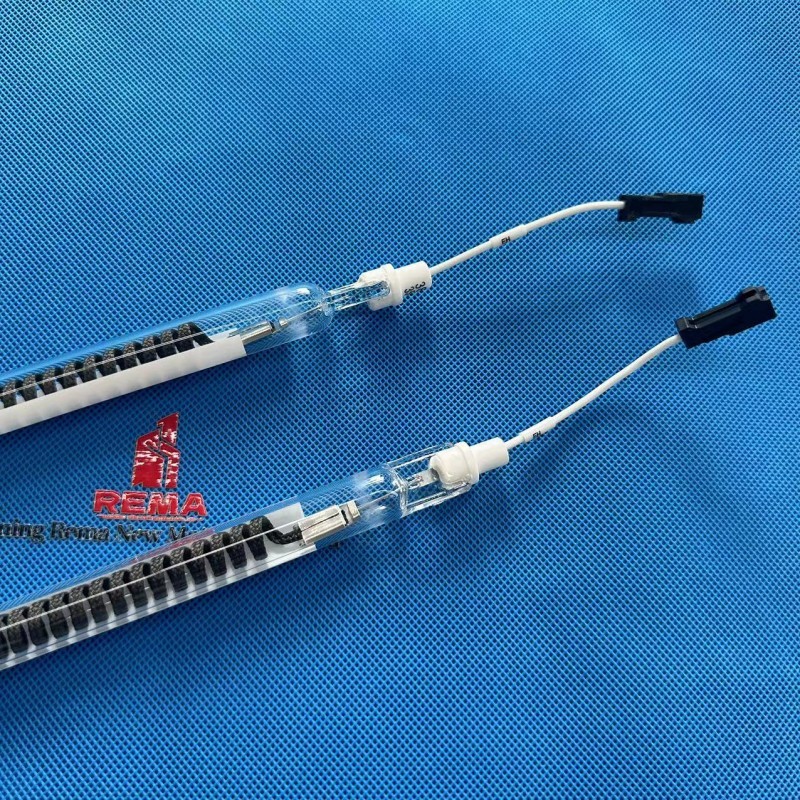

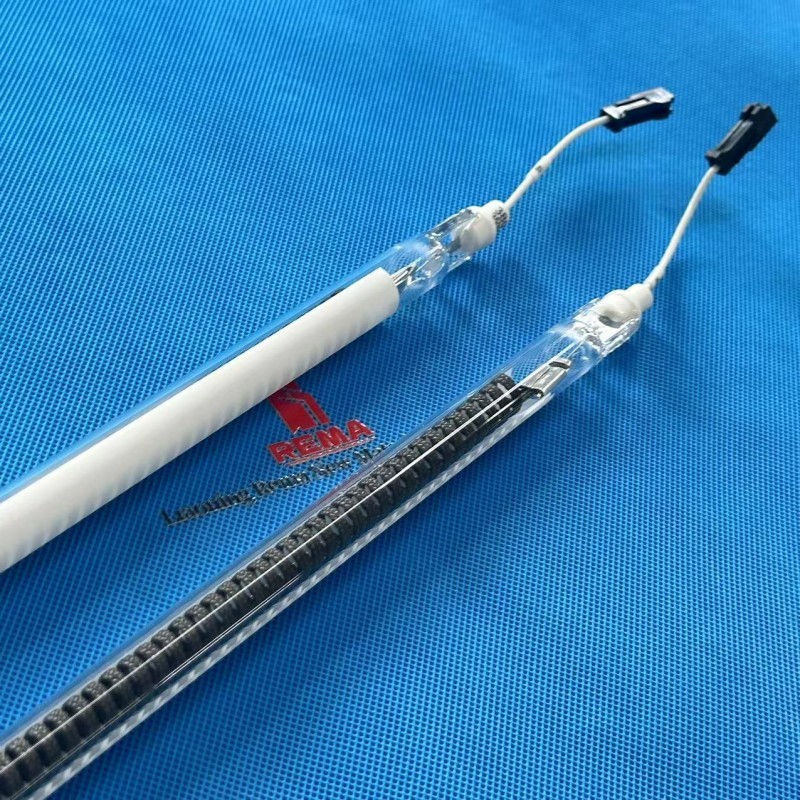

380v 3500w Half White Carbon Filament Quartz IR Heater Lamp
Carbon filament quartz heater has soft color, less visible light, is vibration-resistant, has a small starting current. It has good effects in food baking, industrial sterilization in low-temperature ovens, and civil heating.
Input Voltage：380V
Input Wattage：3500W
Working Lifetime：5000+ Hours
IR Distance:2-9.5μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 350v 3500w Carbon filament IR heater Lamp Quartz For Vacuum Forming Machine
Top quality quartz glass for good transmission and temperature resistance
180°C half white coating，effectively transmit and focus heat on materials, more than 70% reflection efficiency
Heating filament, available in designs to suit different wavelengths
Name： | Half White Carbon IR Heater | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
WHY WITH WHITE REFLECTIVE COATING ?
Half white coating, effectively transmit and focus heat on materials.more than 70% reflection efficiency.The reflective coating can be customized：
180 degree half white reflecter,
doube sides white reflecters,
240 degree white reflecer.
With professional coating technology
The white relfeter coating is stable,long time working not easy to to fall off.
Halogen heaters with reflective film
A white coating is applied to the rear surface of the lamp which increases the efficiency and the energy
emitted from the front of the lamp, and eliminates the optical components, such as the reflective mirror,
reducing the cost. It also helps suppress the increase in temperature of surfaces on the side of the reflective film.
Short wave quartz infrared heaters are used in various industrial applications：
Car industry-Battery, welding and so on
Screen printing-Automatic and semi-automatic machines
Wallpaper industry-Printing, coating and embossing on wallpaper
Paper processing-Drying of papermaking、surface coating and printing
Furniture plate-UV, coating, panting
Glass heating-Glass screen printing, decoration glass etc.
Lacquers drying
Semiconductor industry
OEM/ODM
If the parameter is not suitable for you. Welcome to contact us .REMA Design an infrared lamp for the unique you ！
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | **mm | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ White/ Clear/Black | 6.Base： | SK15、R7s、..... |
| Or you can directly send us the photos and drawings. | |||
Custom Lamp Base LOGO
REMA uses laser printing LOGO. Make the LOGO more clear , durable and not easy to disappear by friction.
