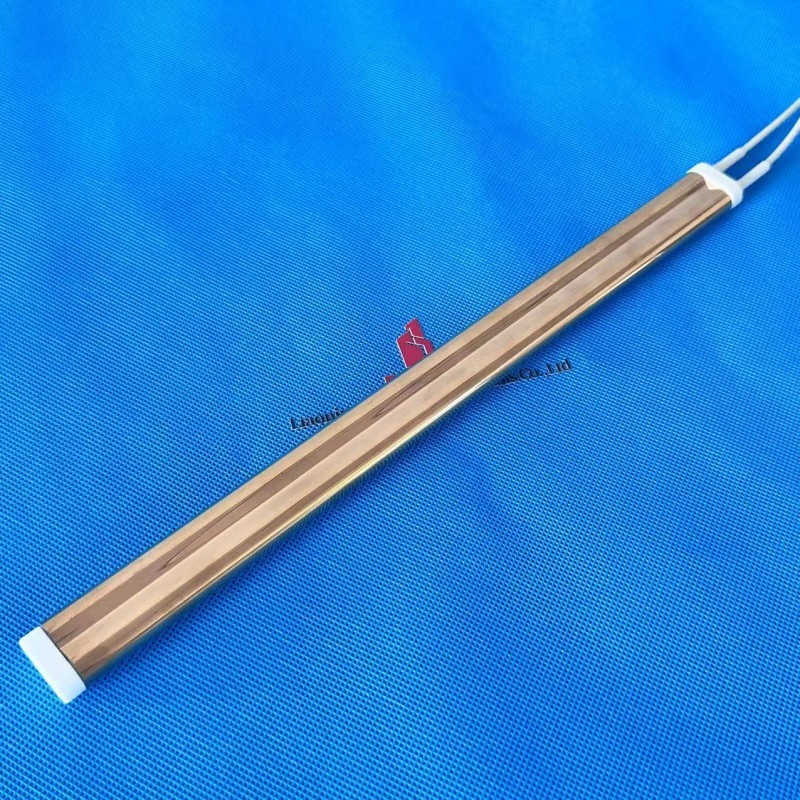

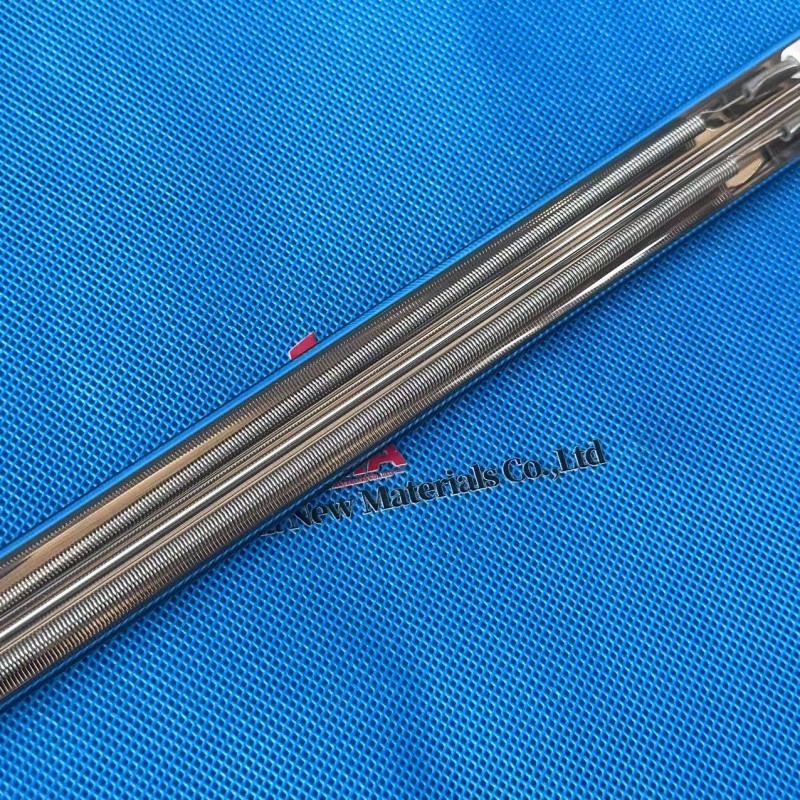

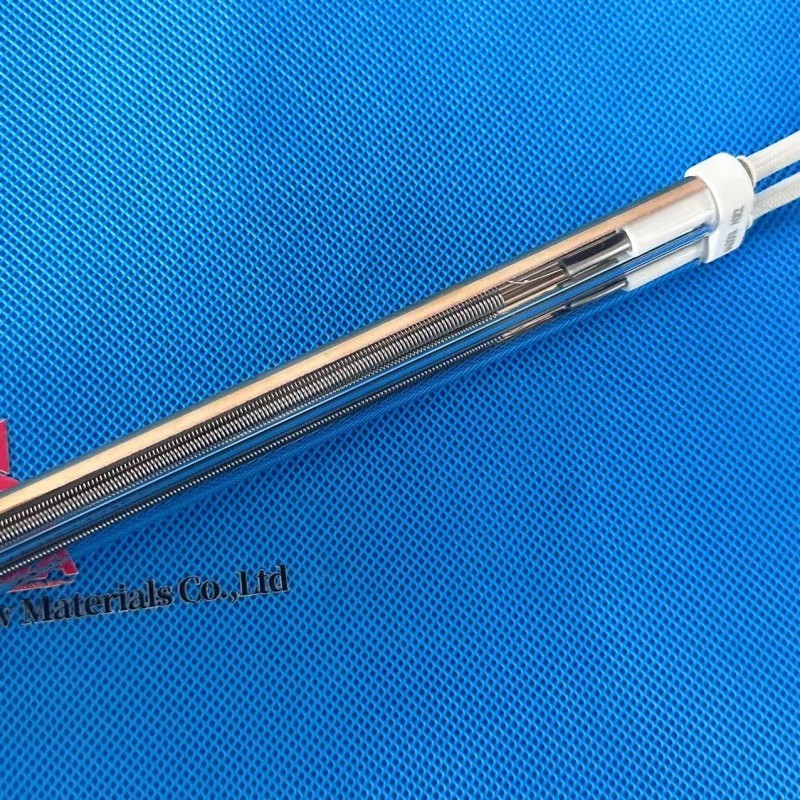

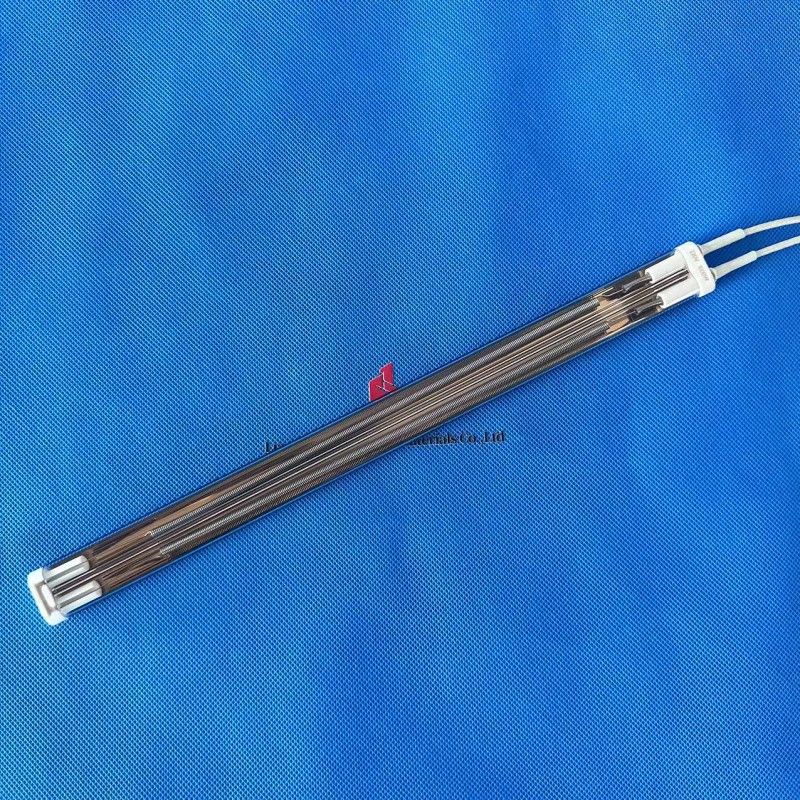

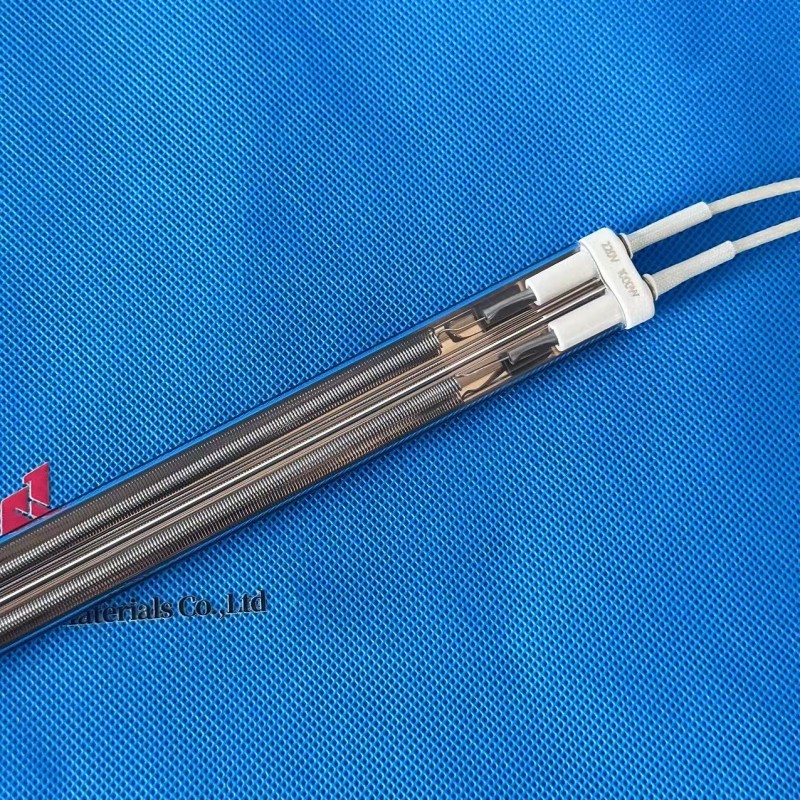

Medium Wave Infrared Heaters With Gold Reflector
Medium Wave Infrared Heaters have the advantages of high performance, reliability, long life (more than 10,000 hours), stable and soft infrared radiation, easy installation and low cost.
Input Voltage:220V
Input Wattage:1000W
Working Lifetime:5000+ Hours
IR Distance:2-4μm.
OEM/ODM:Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 1000w R7s Infrared Lamp Quartz For Vacuum Forming Machines
30-years experience professional custom manufacturer
Name: | infrared Heaters with gold reflector | Voltage : | 24-600V |
Wattage | 100-5000W | Heated length : | 100-1500mm |
Response time: | 1-2 s | Wavelength: | 1.1-1.8 um |
Tube diameter: | 8-12mm | Filament temperature: | 1100-2900℃ |
Grain dryer:
The old way:
Big limitations of dryer.Different kinds of grain require different dryersThe old waywith different drying methods and temperatures.
Overcapacity. No matter the drying quantity,the dryer should be chosenon the basis of maximum dying quantity required.
High cost. Traditional grain dryers usually apply coal, natural gas, diesel oil and even electricity.
Serious environmental pollution. Large pollution will be produced duringusing of hot-blast stove.
Large size of machine
The New way:
Low energy consumption.REMA apply advanced Infrared medium-wave radiative heat.
Separate Zones (flexibility and energy savings).
Eco-friendly.No secondary pollution without hot-blast heater. lt's been tested that infrared can be used in physical therapy. lt's totally healthy
According to our experience, the characteristics of the irradiated objects (heating /drying/ physiotherapy/ disinfection) are different,
and the spectrum energy absorption caused by infrared radiation are also different.
When selecting infrared radiation products ,we recommend that customers pay special attention to the following data in order to select suitable products:
Metal---1~2 μm (Short wave ) High speed printing --- 1~2 um (Short wave )
Resin---2~4 μm (Middle wave) High-grade matte paint drying room---3~50 μm (Long wave)
Glass---2-4 μm (Middle wave) Water system dying---2-4 ym (Middle wave) Ceramic---3-5 μm (Long wave)
High speed printing --- 1~2 ym (Short wave ) High-grade matte paint drying room---3~50 μm (Long wave)
Physical rehabilitative treatment (lmported bulb)---1.35um (standing A)---2.2um(standing B).

OEM/ODM
How to customized ? Pls provide this informations: | |||
1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
3.Total length: | ***** | 4.Wire length: | 500MM、..... |
5.Coated or not.What color coating? | Gold/ white/ clear | 6.Base: | SK15、R7s、..... |
Or you can directly send us the photos and drawings.
CLICK TO CONTACT US !

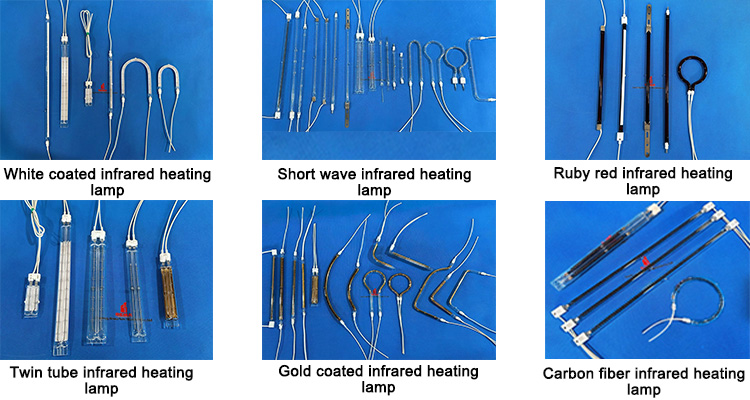

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.
Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
