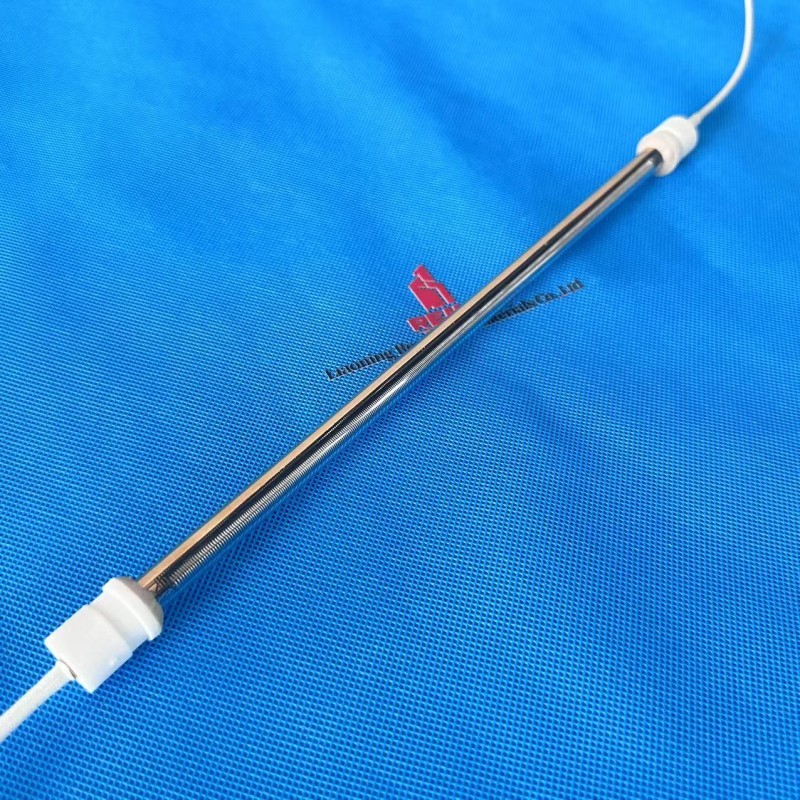

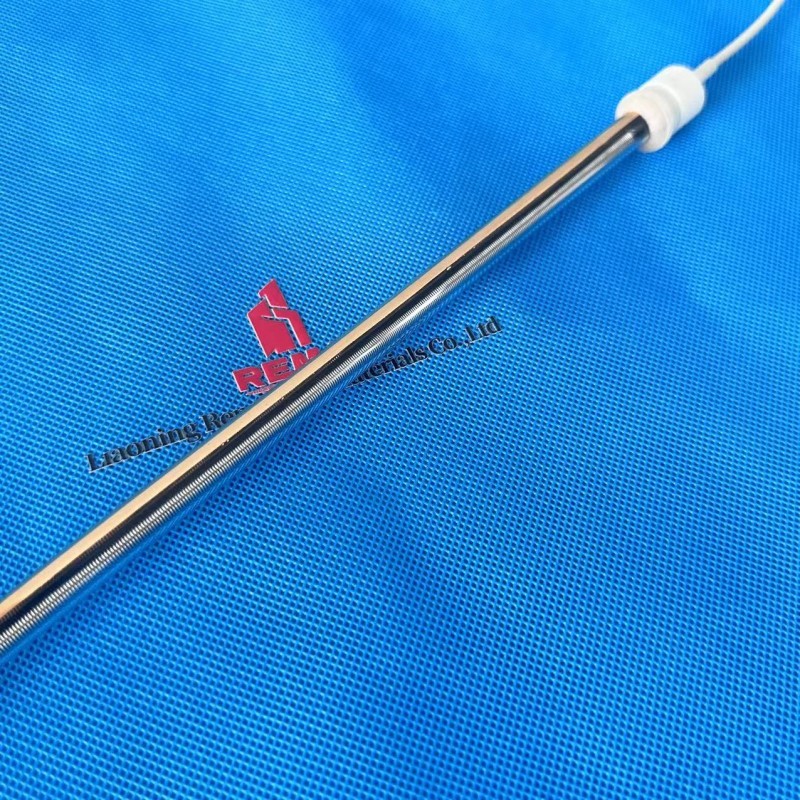

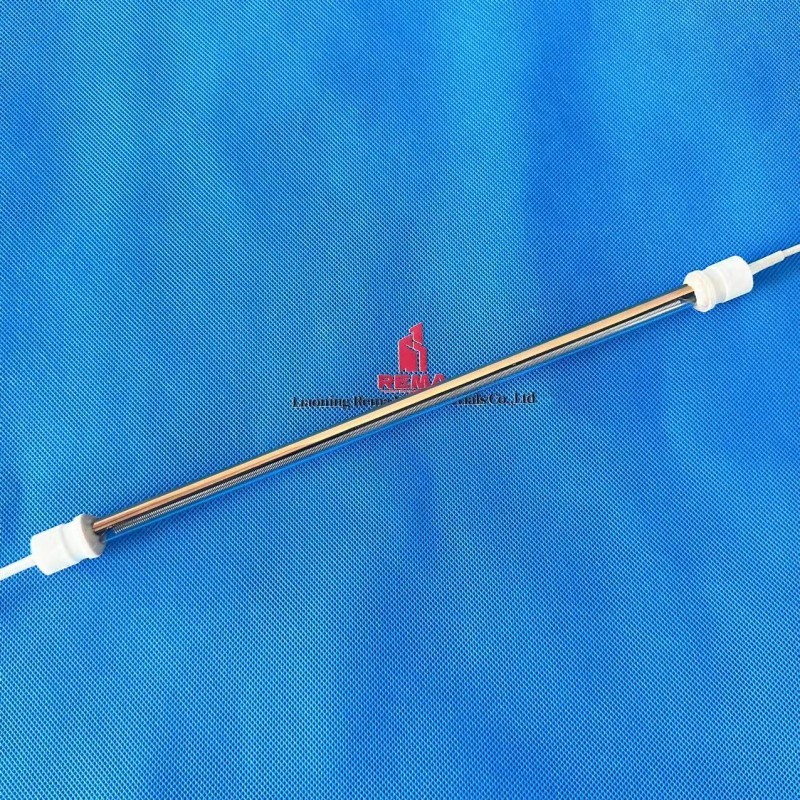

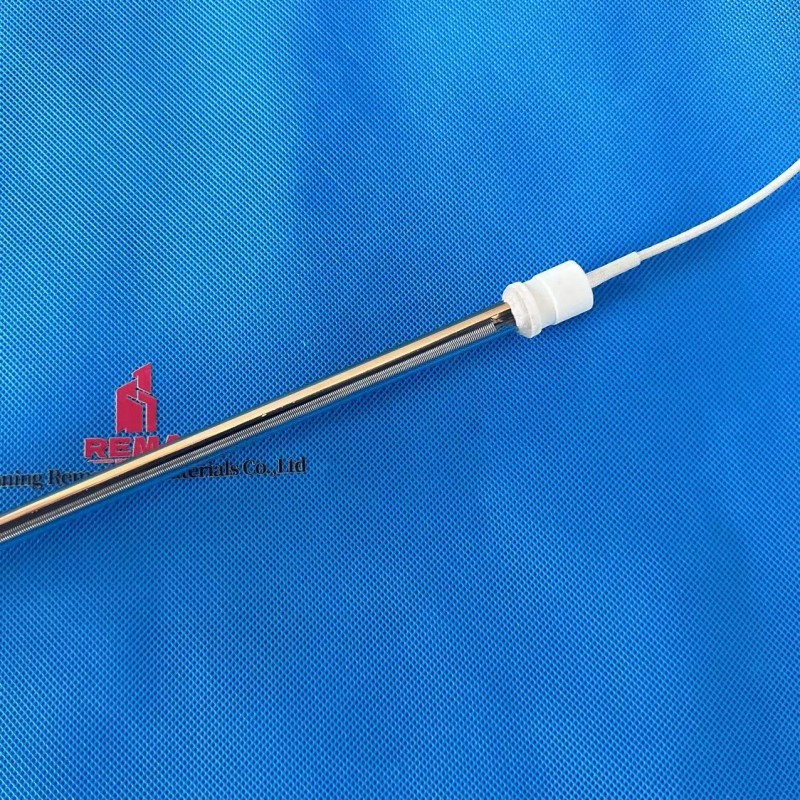

Medium Wave Half-Gold Coated Far Infrared Tube Heater Quartz
infrared tube heater have the advantages of high performance, reliability, long life (more than 10,000 hours), stable and soft infrared radiation, easy installation and low cost.
Input Voltage：220V
Input Wattage：800W
Working Lifetime：5000+ Hours
IR Distance:2-4μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 800w gold golden coated reflector plate Medium Wave Far Infrared Heater Lamp Quartz For Paint Drying Curing
Name： | quartz infrared tube | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1-2um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Heating, drying, coating, Laminating, Annealing , Forming, Printing | |||
Product Details
Robust ceramic socket with various specifications to choose
Gold-coated directional reflection efficiency is high , saving energy
can work horizontally, vertically or in motion
According to our experience, the characteristics of the irradiated objects (heating /drying/ physiotherapy/ disinfection) are different,
and the spectrum energy absorption caused by infrared radiation are also different.
When selecting infrared radiation products ,we recommend that customers pay special attention to the following data in order to select suitable products:
Metal---1~2 μm (Short wave ) High speed printing --- 1~2 um (Short wave )
Resin---2~4 μm (Middle wave) High-grade matte paint drying room---3~50 μm (Long wave)
Glass---2-4 μm (Middle wave) Water system dying---2-4 ym (Middle wave) Ceramic---3-5 μm (Long wave)
High speed printing --- 1~2 ym (Short wave ) High-grade matte paint drying room---3~50 μm (Long wave)
Physical rehabilitative treatment (lmported bulb)---1.35um (standing A）---2.2um(standing B).
Customized Service
No suitable product for you? Welcome to contact us .REMA Design an infrared lamp for the unique you ！
With thousands of specification IR lamps,infrared short wave lamp (SW), infrared medium wave lamp (MW),
Infrared fast medium wave lamp (Fast MW) and infrared special lamp, more than 30 years processing experience,
Skilled and experienced technical team, Make our products more excellent , Welcome to customize it according to your requirements .
Lamp Base
Reflective coating of the lamp
Terminal
Characteristics:
Infrared Lamp are Energy-saving, Space-saving, Highly efficient, Environmentally Friendly.
Infrared Lamp are High-efficiency energy source.
Infrared Lamp can Intelligent heat and control temperature precisely.
Infrared Lamp is Clean heat source.
Make heat processes faster, more energy-efficient , space-saving , green and environmental protection
Wide range of matching heating , making it possible for heating many kinds of products
Direct heat transfer , little loss in air saving 60% energy
