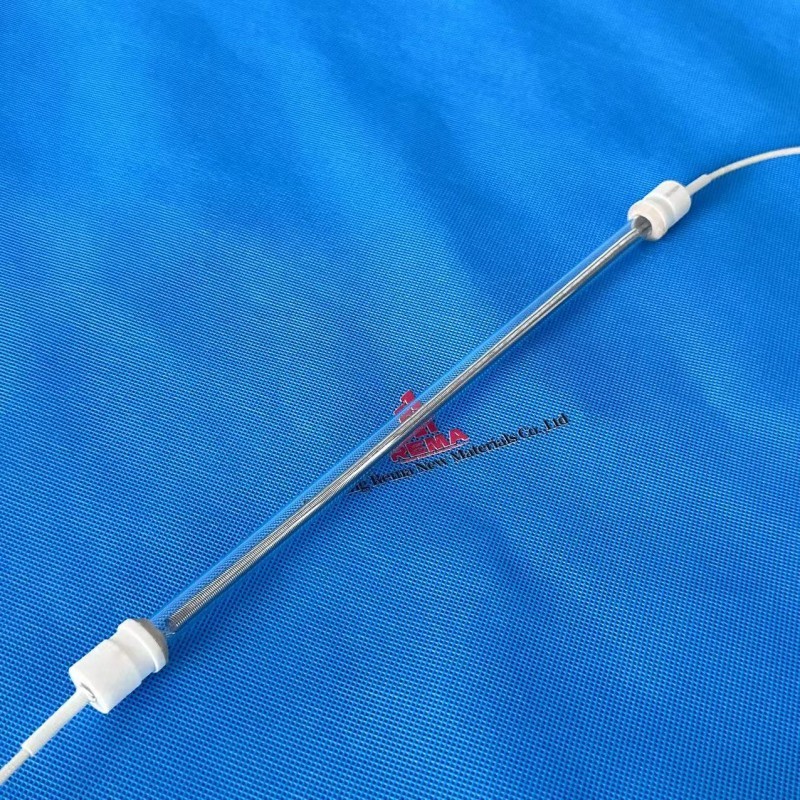

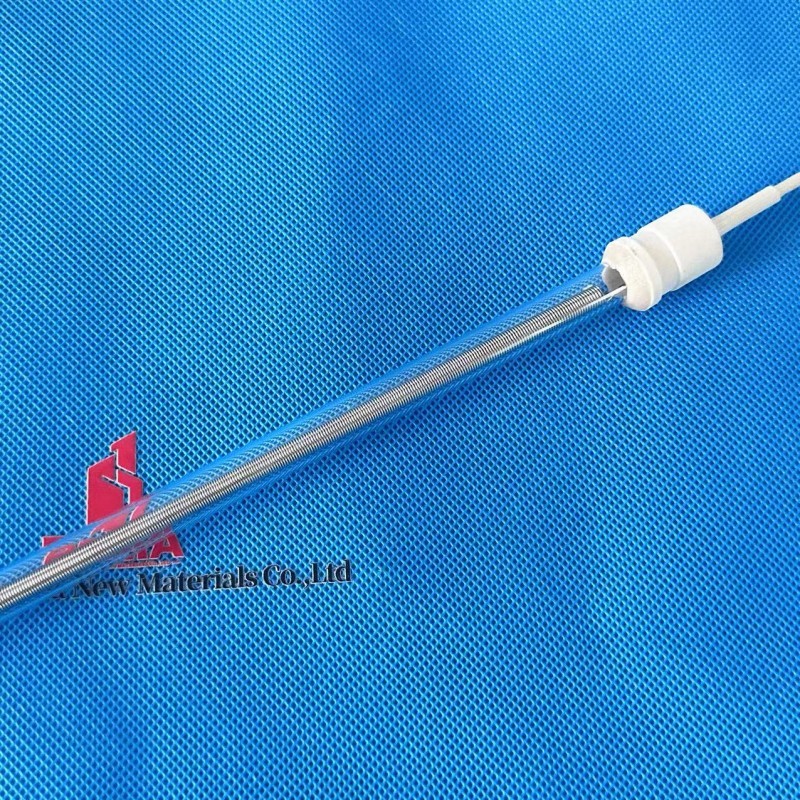

Med-wave Infrared Quartz Heater Tube Lamp For Shrink Packaging Machines
quartz heater tube have the advantages of high performance, reliability, long life (more than 10,000 hours), stable and soft infrared radiation, easy installation and low cost.
Input Voltage：220V
Input Wattage：800W
Working Lifetime：5000+ Hours
IR Distance:2-4μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 800w Medium Wave Ir Bulb Quartz Infrared Heat Lamp heater for drying curing Powder Coating Plastic Welding
Name： | Clear med-wave infrared lamp | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-6000mm |
Response time： | 1-2 min | Wavelength： | 2-4um |
Tube diameter： | 23*11、33*16mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Glass Curing
Coating industry.-Paper,on woven fabric, leather, and so on.
Textile coating.-Water-proof coating, coating.
Glass heating.-Glass screen printing, decoration glass etc.
Composite plate.-Polishing
Furniture plate.-UV, coating, panting
Resinic crystal.-Drying of resinic crystal
Grain dryer：
The old way：
Big limitations of dryer.Different kinds of grain require different dryersThe old waywith different drying methods and temperatures.
Overcapacity. No matter the drying quantity，the dryer should be chosenon the basis of maximum dying quantity required.
High cost. Traditional grain dryers usually apply coal, natural gas, diesel oil and even electricity.
Serious environmental pollution. Large pollution will be produced duringusing of hot-blast stove.
Large size of machine
The New way：
Low energy consumption.REMA apply advanced Infrared medium-wave radiative heat.
Separate Zones (flexibility and energy savings).
Eco-friendly.No secondary pollution without hot-blast heater. lt's been tested that infrared can be used in physical therapy. lt's totally healthy
Customized Service
No suitable product for you? Welcome to contact us .REMA Design an infrared lamp for the unique you ！
With thousands of specification IR lamps,infrared short wave lamp (SW), infrared medium wave lamp (MW),
Infrared fast medium wave lamp (Fast MW) and infrared special lamp, more than 30 years processing experience,
Skilled and experienced technical team, Make our products more excellent , Welcome to customize it according to your requirements .
Lamp Base

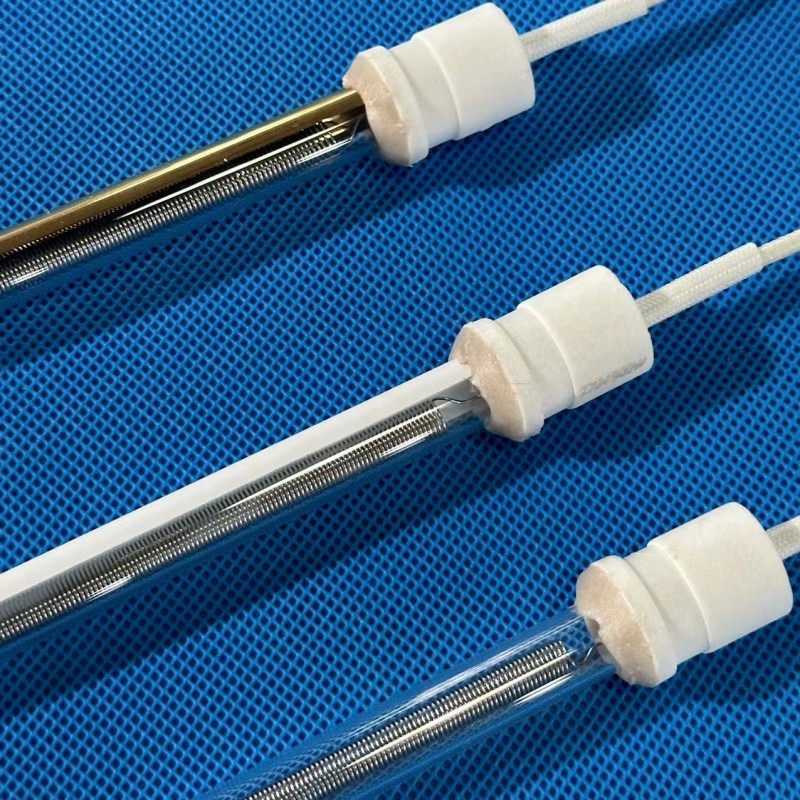

Reflective coating of the lamp

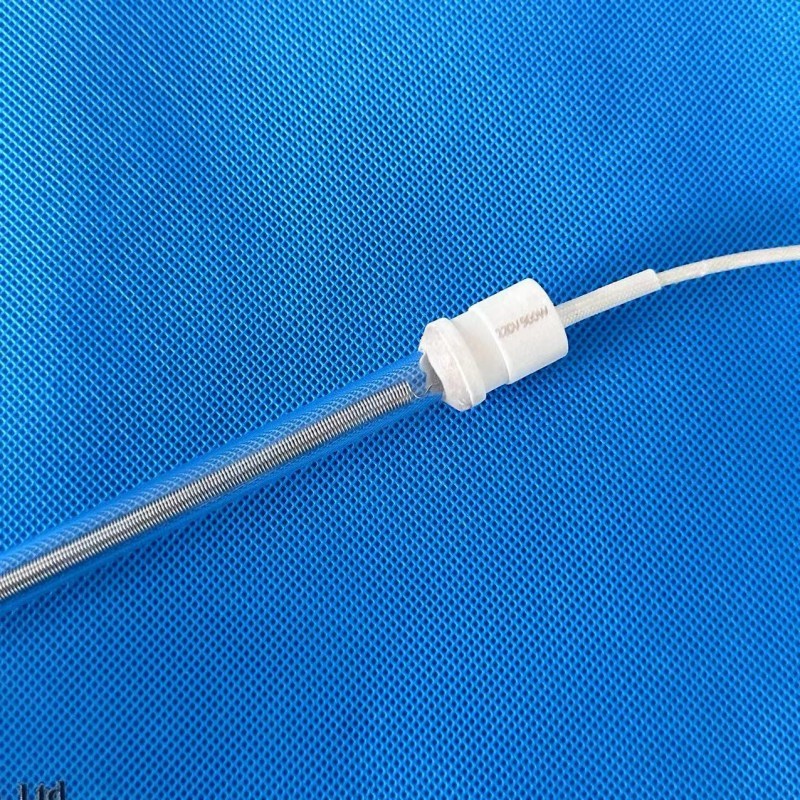

Terminal
Characteristics:
High temperature resistance, corrosion resistance, good thermo-chemical stability, long service life, high insulation strength.
Clean heating process , no pollution.
Direct heat transfer , little loss in air saving 60% energy.
Out-from-within heating , improving the producing quality dramatically .
Make heat processes faster, more energy-efficient , space-saving , green and environmental protection.
Easy to design, manufacture and install, economical and safe.
Wide range of matching heating , making it possible for heating many kinds of products
AFTER-SALE GUARANTEE：
