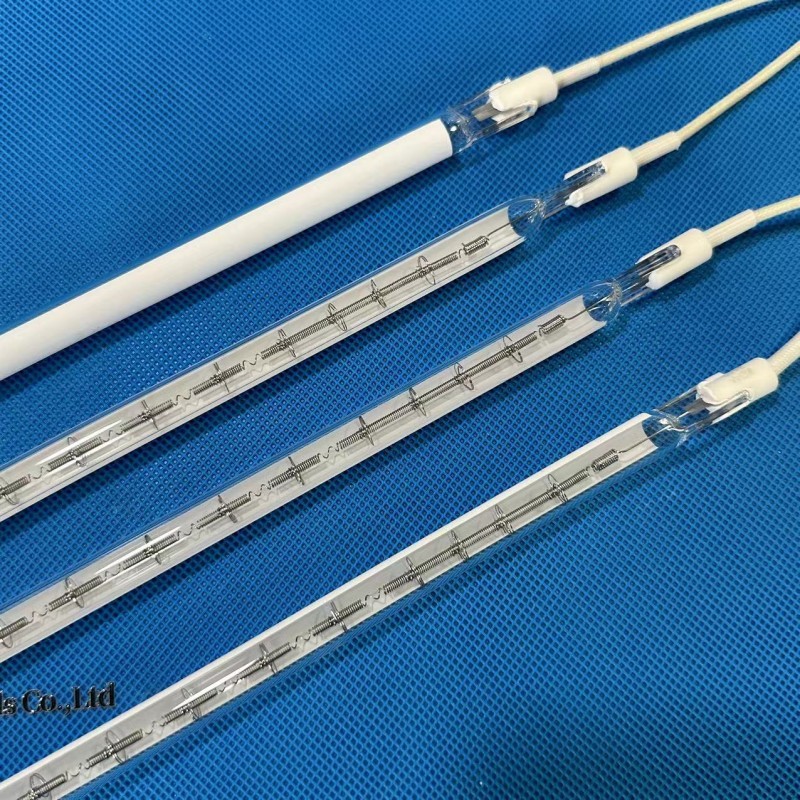

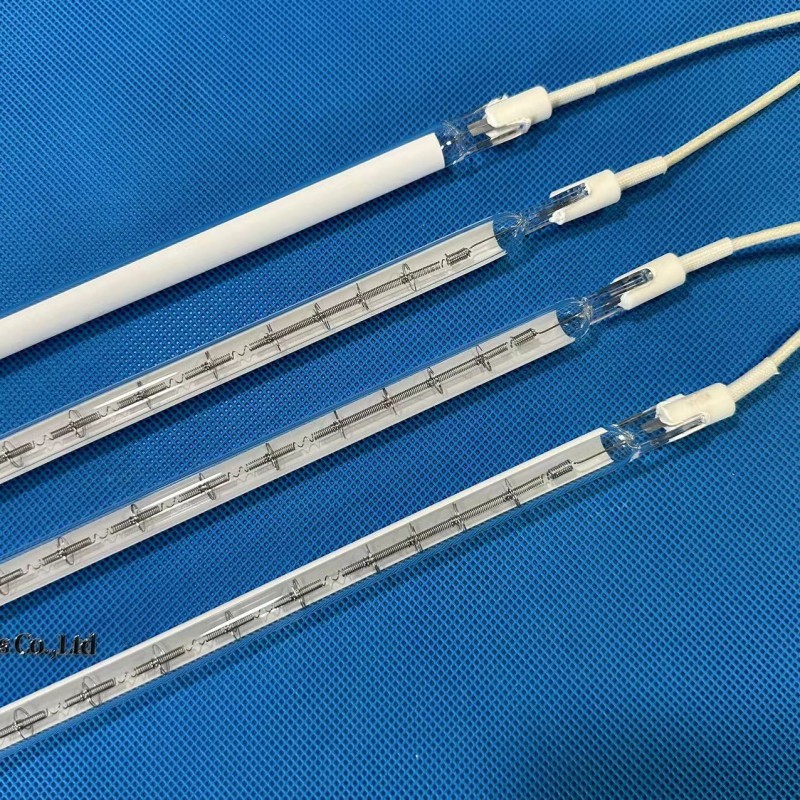

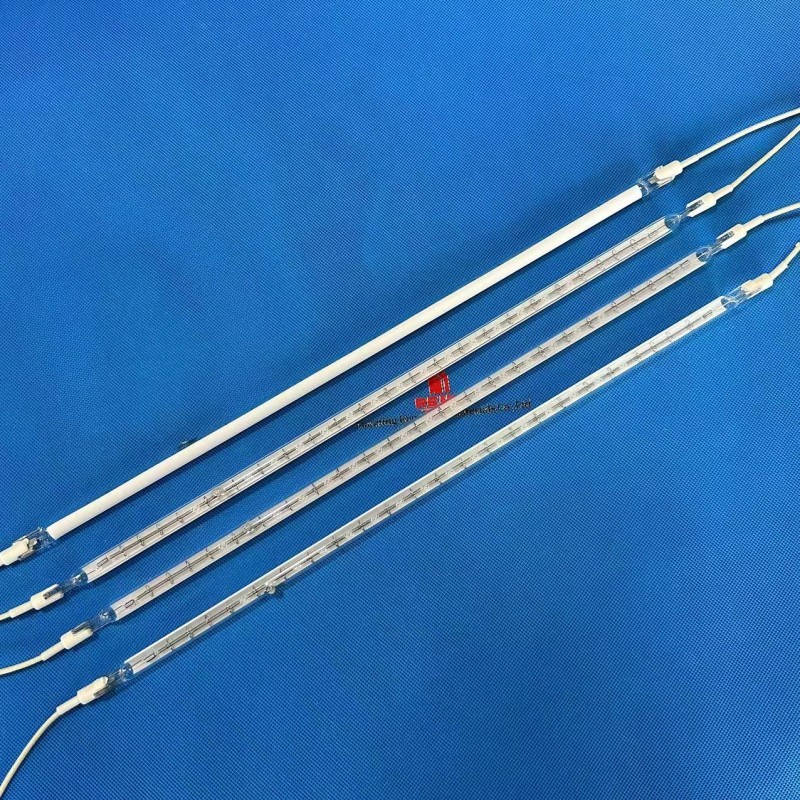

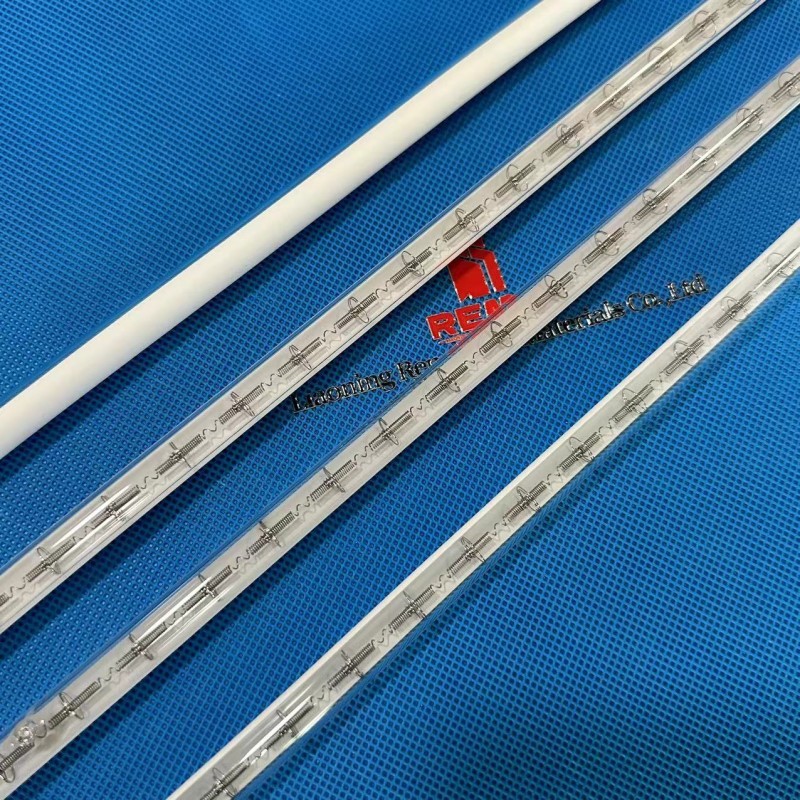

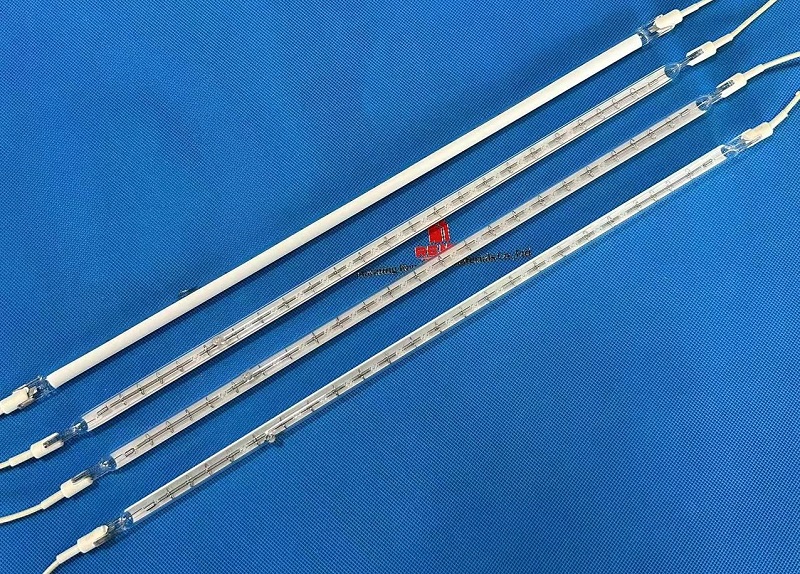

R7s White Half Coated Infrared Heating Lamp
Short-wave Infrared Heating Lamp has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：220V
Input Wattage：1000W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 Days
- 200000 Piece
- Information
REMA 220v 1000w R7s Infrared Lamp Quartz For Vacuum Forming Machines
| Name： | Short wave white Half Infrared Lamp | Voltage ： | 24-600V |
| Wattage | 100-5000W | Heated length ： | 100-1500mm |
| Response time： | 1-2 s | Wavelength： | 1-2 um |
| Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
| Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
OEM/ODM
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | ***** | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ white/ clear | 6.Base： | SK15、R7s、..... |
Or you can directly send us the photos and drawings.
CLICK TO CONTACT US !

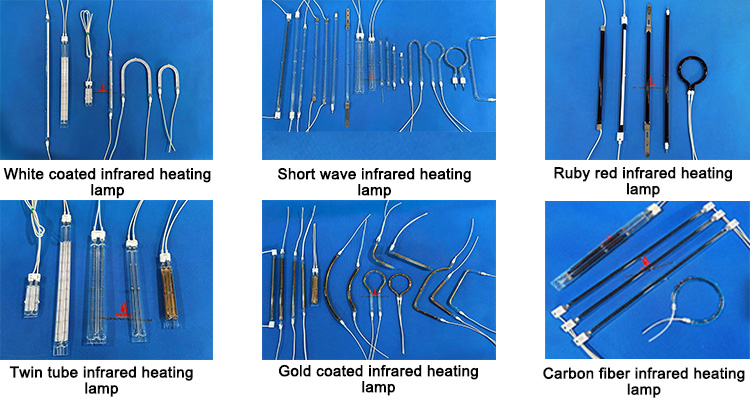

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.
Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
