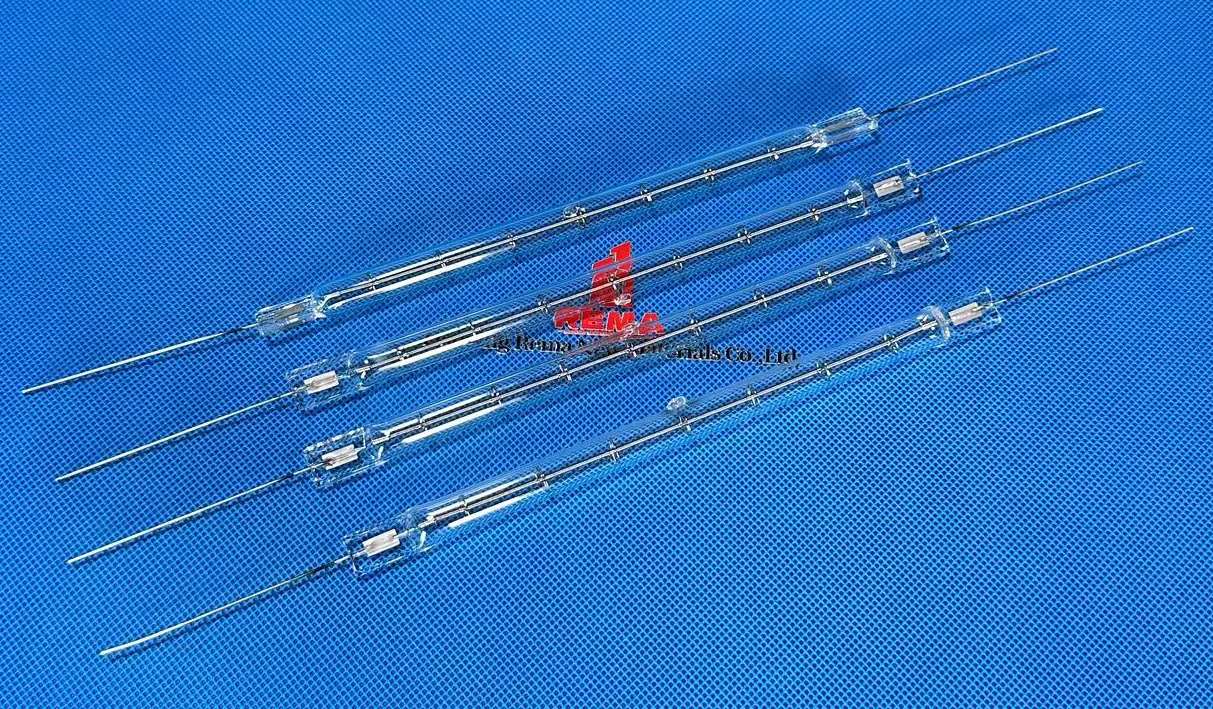

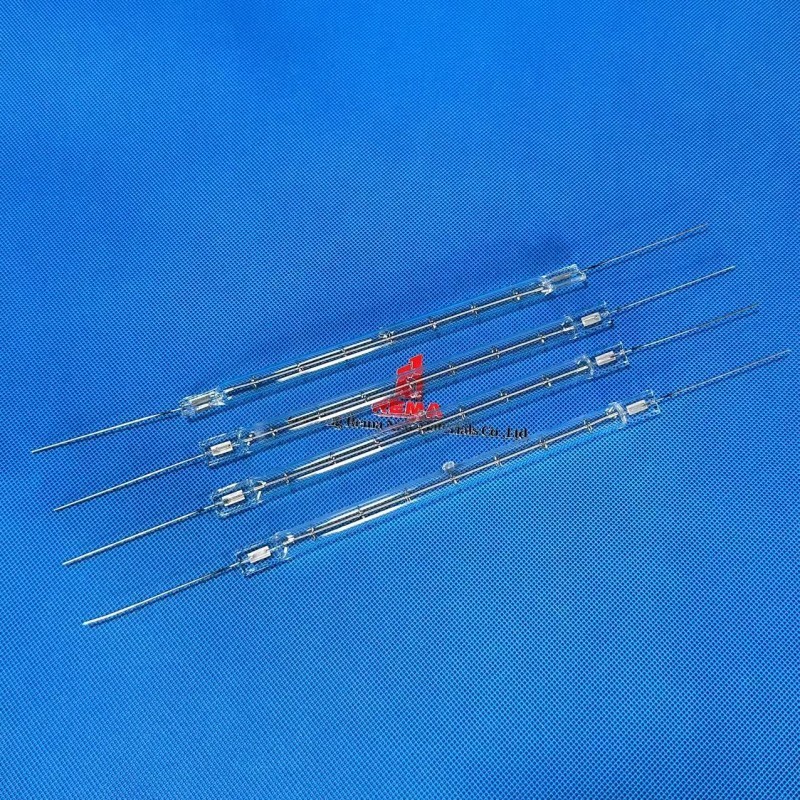

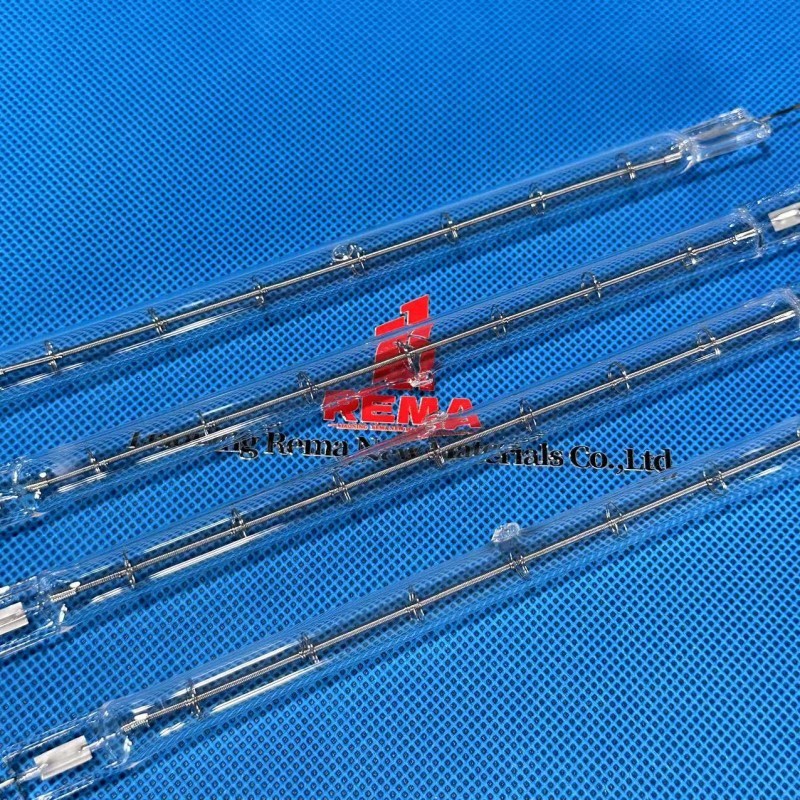

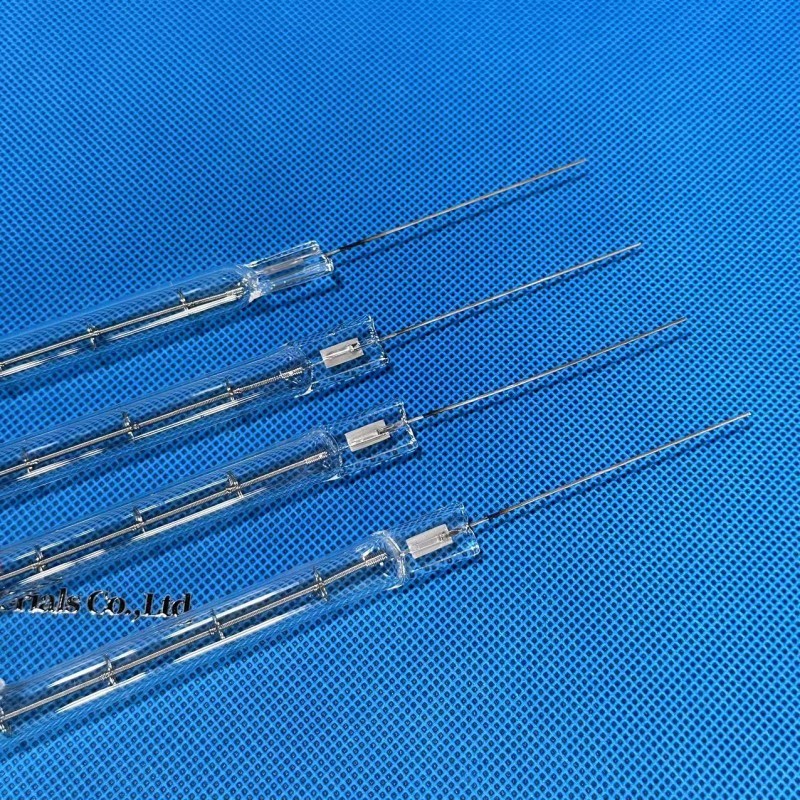

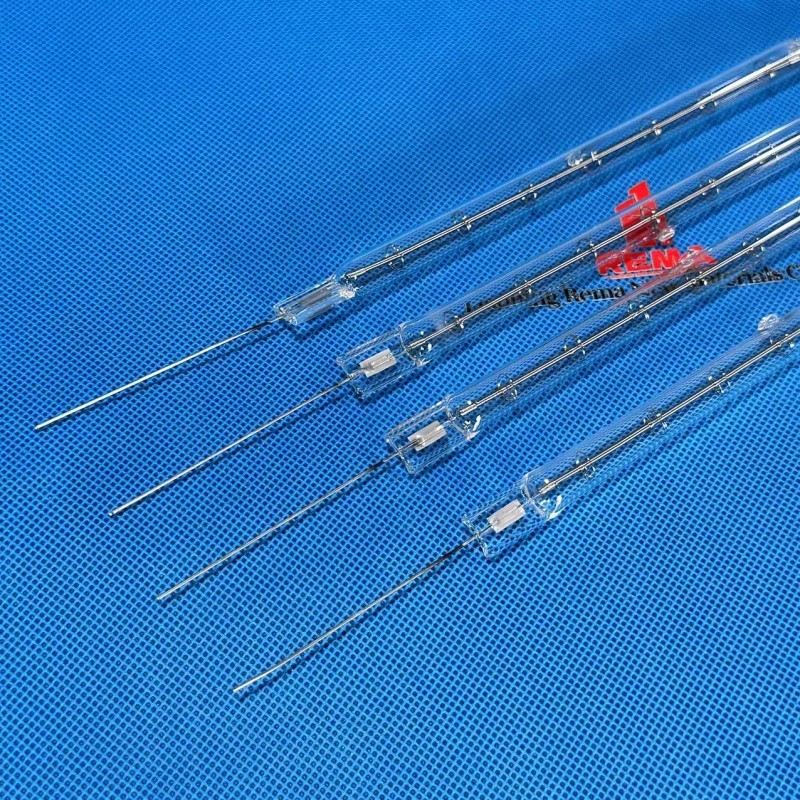

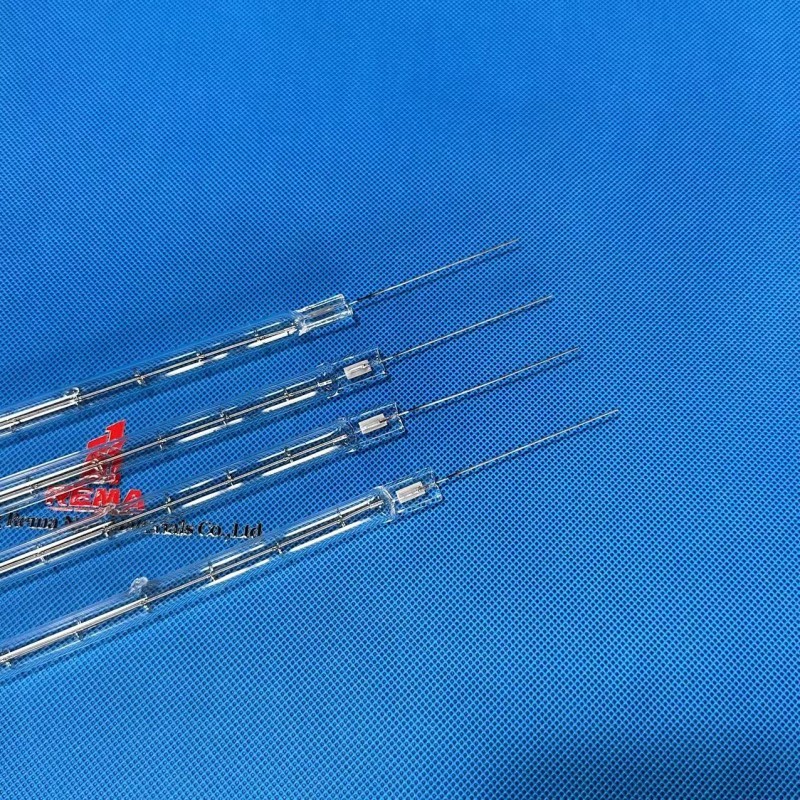

Shortwave Clear Halogen Heater Tube Lamp For Vacuum Forming
Halogen heater tube has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：220V
Input Wattage：1000W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
REMA 220v 1000w ODM/OEM Shortwave Infrared Heater Tube Lamp Quartz For Lnk Curing On Fabrics
30-years experience professional custom manufacturer
| Name： | Shortwave Halogen Lamp | Voltage ： | 24-600V |
| Wattage | 100-5000W | Heated length ： | 100-1500mm |
| Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
| Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
| Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
OEM/ODM
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | ***** | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ white/ clear | 6.Base： | SK15、R7s、..... |
No suitable product for you? Welcome to contact us .REMA Design an infrared lamp for the unique you ！
CLICK TO CONTACT US !
ADVANTAGE
Infrared halogen heating lamp is a small and efficient energy source that uses the light emitted by halogen lamp as heat. Its main features include:
Fast heating speed: short start-up time, can reach rated power within 2 seconds, and heat up quickly.
High thermal efficiency: most of the light emitted is invisible infrared, which can quickly heat the surface of objects and has high thermal conversion efficiency.
Long life: long service life, generally up to 5000 hours.
Energy saving and environmental protection: can accurately control the radiation of energy, does not consume oxygen, and has higher thermal efficiency than other long-wave infrared rays, energy saving and environmental protection.
Easy to control: the heating power and temperature can be controlled by adjusting the voltage or current.
Wide application: suitable for industrial heating, drying, baking, surface melting and other fields, and can also be used for personal care, such as beauty, hairdressing, weight loss, sunbathing, etc.

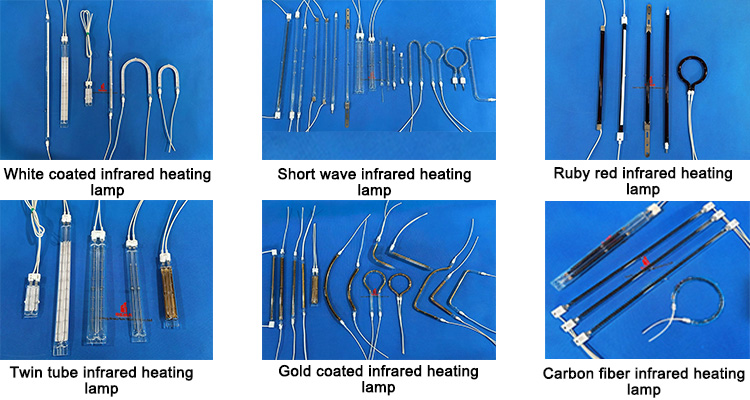

According to different use ways, a varied of filament structures are specially designed to enhance the flexibility of heating area and lead wire connection.
Single tube infrared short-wave lamp : Two-hole infrared short-wave lamp :
APPLICATION
Screen printing. -Automatic and semi-automatic machines.
Glass heating. -Glass screen printing, decoration glass etc.
Textile coating. -Water-proof coating, coating.
Textile printing. -Printing etc.
Textile & fiber. -Fiber & Carbon fiber strengthening.
Wood floor. -PU coating, Polishing, Uv etc.
Composite plate. -Polishing.
Furniture plate. -UV, coating, panting.
Flexible circuit board. -UV, Drying water-binder.
AFTER-SALE GUARANTEE
