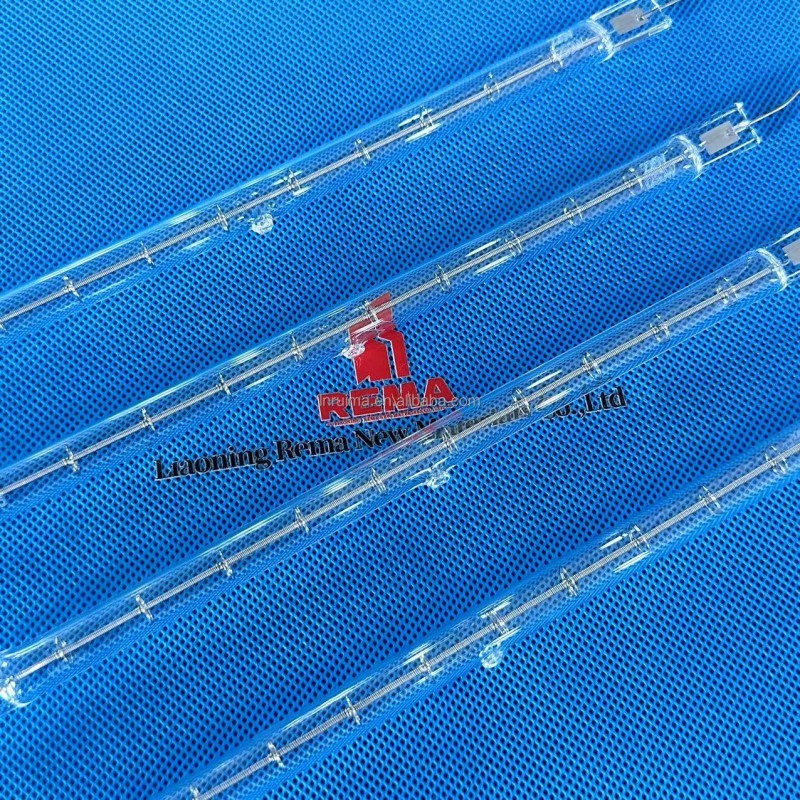

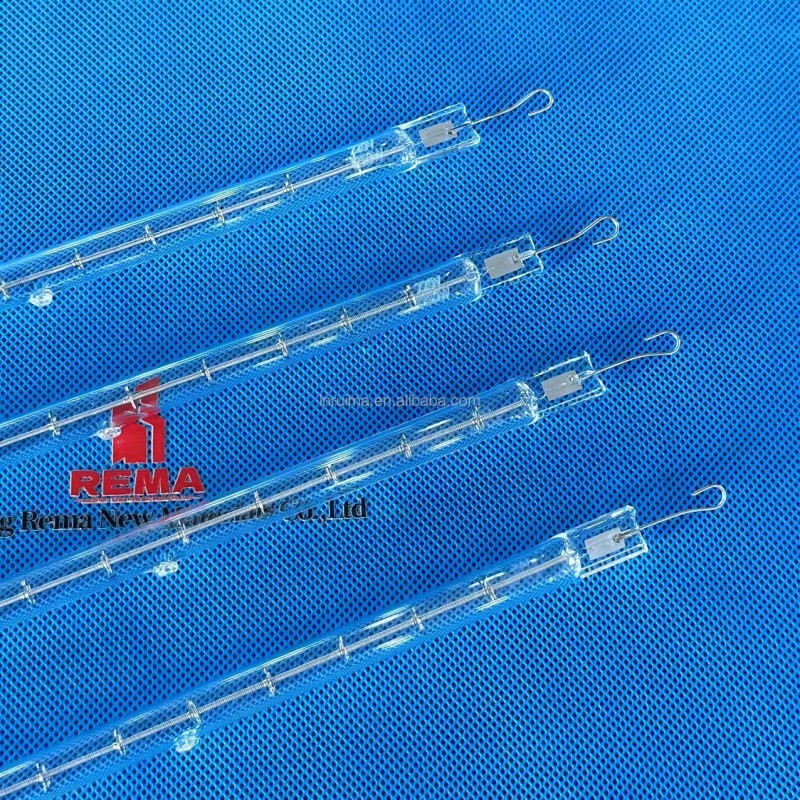

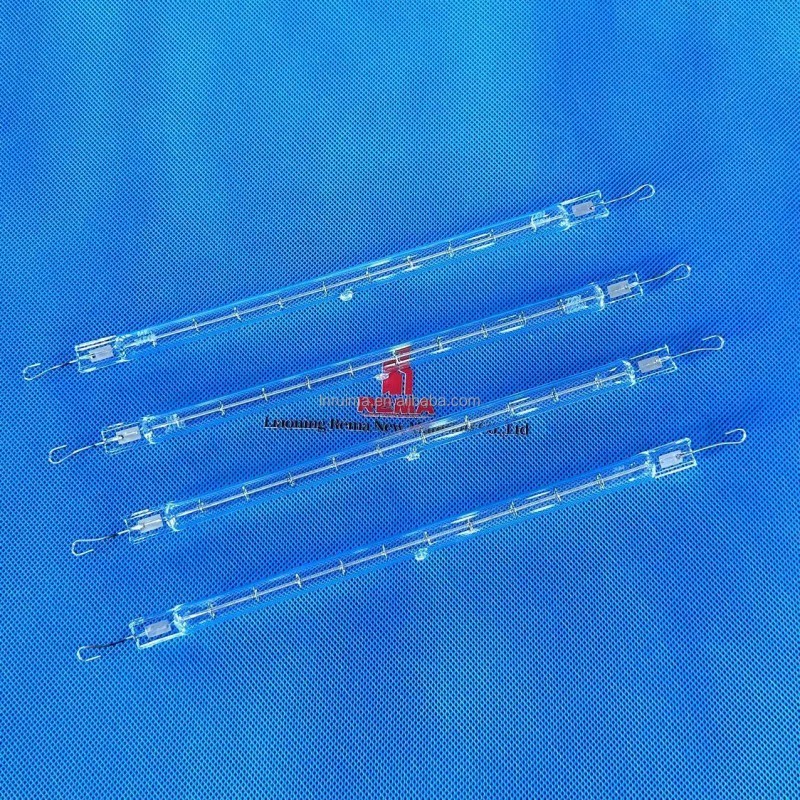

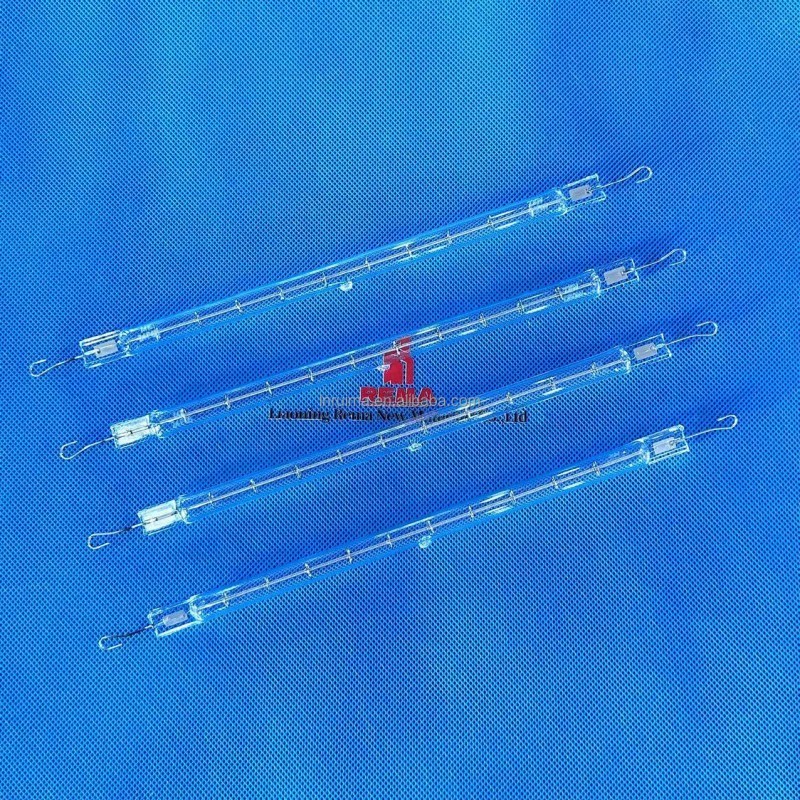

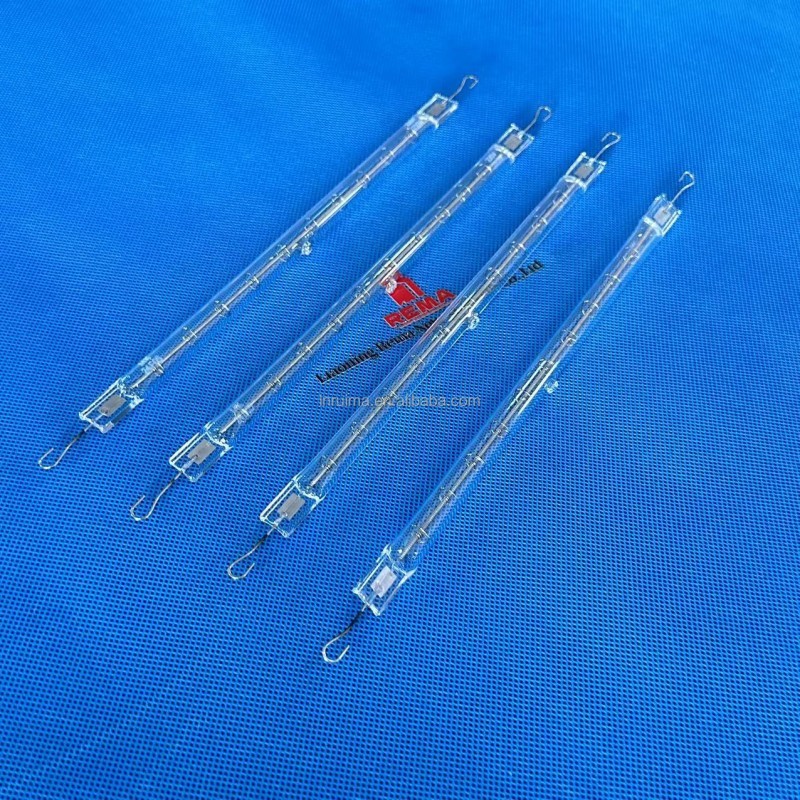

Clear Quartz Heating Tube Ir Lamp For Vacuum Forming
quartz heating tube has a quick response time: 1-2 Seconds, And heats up quickly，Strong radiation，Great penetration. The irradiated object can be heated from a deeper level.
Input Voltage：220V
Input Wattage：1250W
Working Lifetime：5000+ Hours
IR Distance:1-2μm.
OEM/ODM：Can be customized according to customer requirements.
- REMA
- China
- 5-10 days
- 200000 Pieces
- Information
Infrared halogen heating lamp is a small and efficient energy source that uses the light emitted by halogen lamp as heat. Its main features include:
Fast heating speed: short start-up time, can reach rated power within 2 seconds, and heat up quickly.
Long life: long service life, generally up to 5000 hours.
Non-contact heating.Heats objects without direct, physical contact.
Clean heat source.Objects are heated in any environment, whether exposed to the atmosphere or in a vacuum, alleviating concerns about harming the object or the environment.
Easy to control: the heating power and temperature can be controlled by adjusting the voltage or current.
Name： | Clear quartz ir lamp | Voltage ： | 24-600V |
Wattage | 100-5000W | Heated length ： | 100-1500mm |
Response time： | 1-2 s | Wavelength： | 1.1-1.8 um |
Tube diameter： | 8-12mm | Filament temperature： | 1100-2900℃ |
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc | |||
Short wave quartz infrared heaters are used in various industrial applications：
Chemical powder heating.-Chemical powder dehydration.
Coating industry.-Car, wood, metal, coat coating
Paper processing.-Drying of papermaking、surface coating and printing
Resinic crystal.-Drying of resinic crystal
Wallpaper industry.-Printing, coating and embossing on wallpaper
Conveyor belt.-Conveyor belt of coal, ironstone and so on
Flexible circuit board.-UV, Drying water-binder
Wood floor.-PU coating, Polishing, Uv etc
OEM/ODM
If the parameter is not suitable for you. Welcome to contact us .REMA Design an infrared lamp for the unique you ！
| How to customized ? Pls provide this informations: | |||
| 1.Voltage: | 220V、380V、... | 2.Wattage: | 1000w、2000w、.. |
| 3.Total length: | **mm | 4.Wire length: | 500MM、..... |
| 5.Coated or not.What color coating？ | Gold/ White/ Clear/Black | 6.Base： | SK15、R7s、..... |
| Or you can directly send us the photos and drawings. | |||
Custom Lamp Base LOGO
REMA uses laser printing LOGO. Make the LOGO more clear , durable and not easy to disappear by friction.
AFTER-SALE GUARANTEE
Before we proceed with the shipment, we will send you a customized product video and packaging for your confirmation.
After shipment, we will update the logistics information and tracking number in time
Professional customer service.
Complete package.
Damaged replacement & After-sales service.
We promise that we can change or refund the products if there is any quality problem.
Maintenance and care:
– Regular cleaning: During use, dust, oil and other impurities may accumulate on the surface of quartz heating lamp, affecting its heating effect and service life.
Therefore, it is necessary to clean the quartz heating lamp regularly, and you can use a clean soft cloth or paper towel to gently wipe the surface.
– Check the circuit: Regularly check whether the connection circuit of the quartz heating lamp is normal, whether there is looseness, short circuit, etc., to ensure its normal operation.
– Avoid collision: Quartz glass is relatively fragile. Avoid collision or falling during installation and use to avoid damage to the quartz heating lamp.
